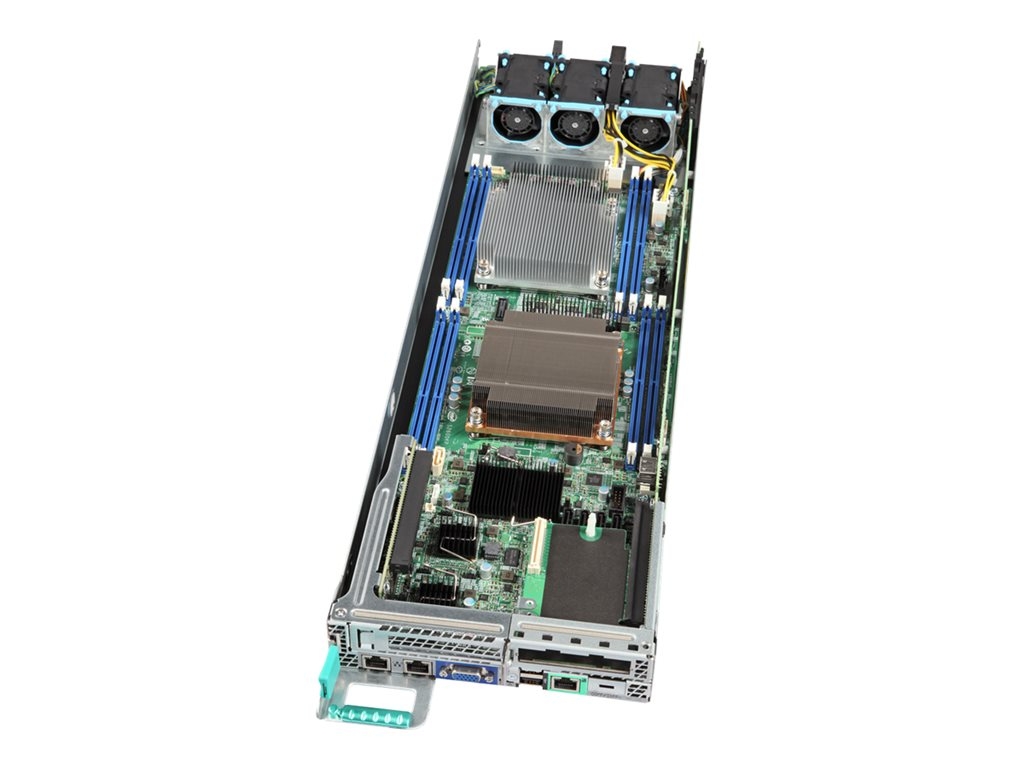

Intel Compute Module HNS2600KPF - blade - no CPU - 0 GB - no HDD

SKU HNS2600KPF

Product Description:	Intel Compute Module HNS2600KPF - blade - no CPU - 0 GB - no HDD
Type:	Server - blade
Server Scalability:	2-way
Processor:	No CPU
Processor Socket:	LGA2011-v3 Socket
RAM:	0 GB (installed) / 512 GB (max) - DDR4 SDRAM - ECC
Storage Controller:	SATA (SATA 6Gb/s)

09-02-2025

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Blade
Server Scalability:	2-way

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable
CPU Socket:	LGA2011-v3 Socket
Chipset Type:	Intel C612

RAM
Installed Size:	0 GB / 512 GB (max)
Technology:	DDR4 SDRAM - ECC
Effective Memory Speed:	2133 MHz
Form Factor:	DIMM 288-pin
Slots:	8 (Total) / 8 (empty)
Features:	Registered, Load-Reduced DIMM (LRDIMM)

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x SATA - integrated
Controller Interface Type:	SATA 6Gb/s
Channel Qty:	10

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Type:	Integrated
Video Memory:	16 MB DDR3 SDRAM
Video Interfaces:	VGA

Networking
Ethernet Ports:	2 x Gigabit Ethernet
Ethernet Controller:	Intel I350
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:	IPMI 2.0
Remote Management Controller:	Emulex Pilot 3 iBMC

Expansion / Connectivity
Slots:	2 (total) / 2 (free) x CPU ¦ 8 (total) / 8 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 (riser card only)
Interfaces:	1 x VGA ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 4 x USB 2.0 ¦ 1 x management - RJ-45

Miscellaneous
Included Accessories:	2 x CPU Heatsink, PCI-Express (1x16) Riser Card, air duct, bridge board, node power board, 1U node tray

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Dimensions & Weight
Width:	16.3 cm
Depth:	45 cm

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C

vis mere

The Intel Compute Module HNS2600KPF offers a versatile and scalable server solution designed for demanding applications. This blade form factor module is engineered to support up to two processors, ensuring ample computing power for various tasks. With eight expansion slots available, users can upgrade and enhance the module's capabilities based on their specific needs. The Intel C612 chipset paired with advanced ECC DDR4 SDRAM technology ensures reliable data integrity by preventing errors during computing processes.
This compute module features integrated video output through VGA and includes multiple connectivity options such as Gigabit Ethernet, USB 2.0, and management interfaces. The temperature range of 10°C to 35°C allows the module to operate in various environments, making it suitable for diverse data center requirements. With no built-in hard drive and a focus on modular design, the Intel Compute Module HNS2600KPF allows for tailored storage solutions depending on user preferences.

Scalable design supports up to 2 processors
Eight expansion slots for increased versatility
Intel C612 chipset for reliable performance
Integrated video output with VGA support
Wide operating temperature range for flexible deployment

The technical details come from 3rd party. edgemo is not responsible for any errors.
