Printers & POSIntel Compute Module HNS2600BPBR - blade no CPU - 0 GB - no HDD
SKU HNS2600BPBR
| Product Description: | Intel Compute Module HNS2600BPBR - blade no CPU - 0 GB - no HDD |
| Type: | Server - blade |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | Socket P |
| RAM: | 0 GB DDR4 SDRAM - ECC |
| Storage Controller: | SATA (SATA 6Gb/s) |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Blade |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 2-way |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket P |
| Chipset Type: | Intel C621 |
| RAM | |
| Installed Size: | 0 GB |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 16 (Total) / 16 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM) |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Video Memory: | 16 MB DDR4 SDRAM |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x 10 Gigabit Ethernet |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0 |
| Remote Management Controller: | Intel Baseboard Management Controller (BMC) |
| Expansion / Connectivity | |
| Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 (low-profile) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 |
| Interfaces: | 1 x VGA ¦ 2 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x serial ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Included Accessories: | 2 x CPU Heatsink, air duct, riser card, node power board, 1U node tray, 3 x system fans, M.2 to PCI adapter, external VGA port bracket, Intel Server Board S2600BPBR |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 17.86 cm |
| Depth: | 62.74 cm |
| Height: | 4.081 cm |
| Weight: | 4.32 kg |

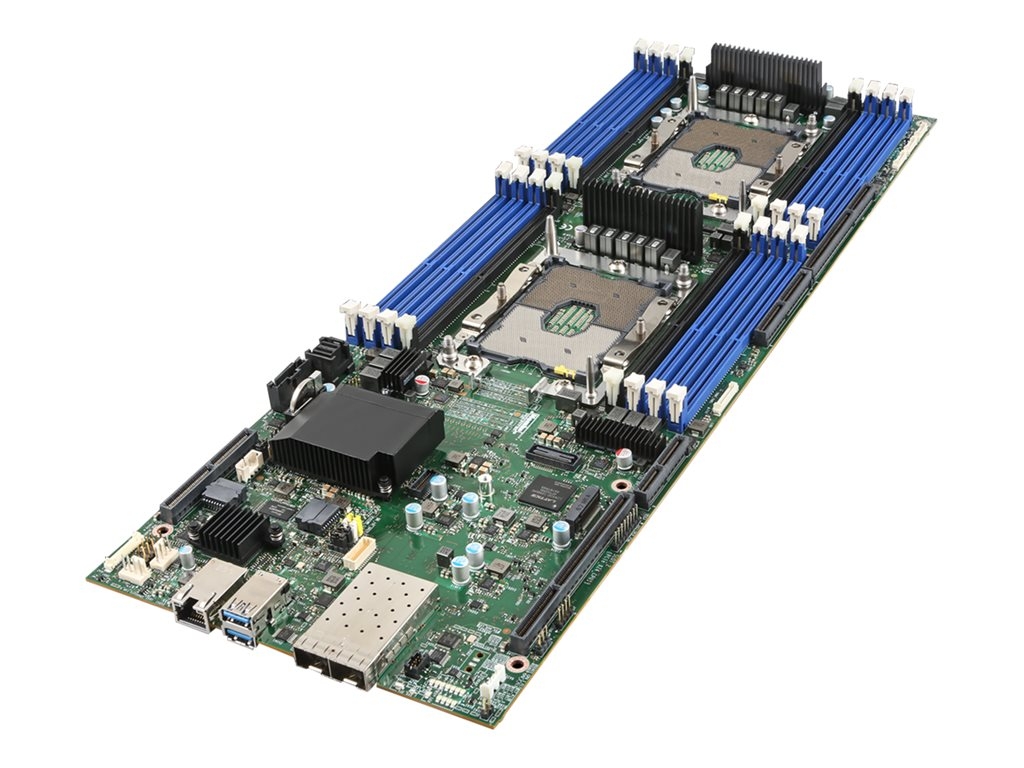

The Intel Server Board S2600BP family is purpose-built for breakthrough performance, compute density, high-speed networking and I/O with stability and increased uptime, making it ideal for High Performance Computing, storage and cloud.
- Up to four compute modules per 2U chassis with support for up to two Intel Xeon processor Scalable family per module
- Up to 165W processor TDP for high performance workloads in a 2U air-cooled chassis
- Networking flexibility with Dual 10GBase-T or 10G SFP + modules
- Support for up to 2NVMe SSDs per node in a 24 drive chassis
- Hot-swappable compute modules, storage, and power supplies
