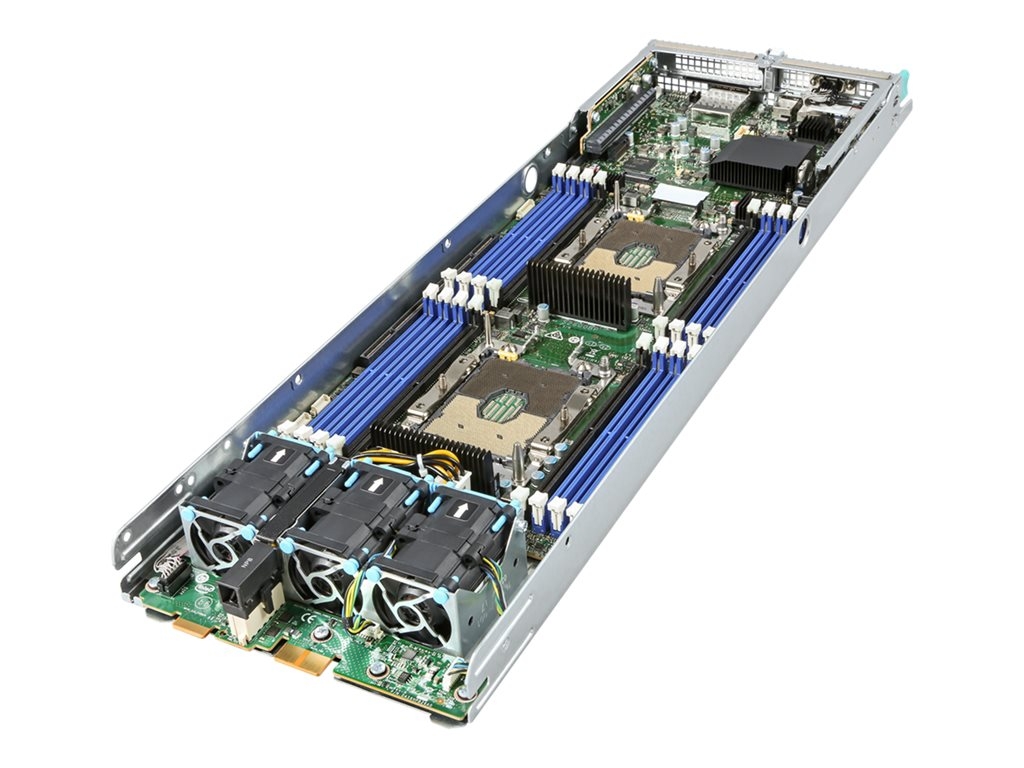

Intel Compute Module HNS2600BPB24R - blade - no CPU - 0 GB - no HDD
SKU HNS2600BPB24R
Product Description: | Intel Compute Module HNS2600BPB24R - blade - no CPU - 0 GB - no HDD |
Type: | Server - blade |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | Socket P |
RAM: | 0 GB DDR4 SDRAM - ECC |
Storage Controller: | SATA (SATA 6Gb/s) |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Blade |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability: | 2-way |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | Socket P |
Chipset Type: | Intel C621 |
RAM | |
Installed Size: | 0 GB |
Technology: | DDR4 SDRAM - ECC |
Form Factor: | DIMM 288-pin |
Slots: | 16 (Total) / 16 (empty) |
Features: | Registered, Load-Reduced DIMM (LRDIMM) |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | SATA |
Controller Interface Type: | SATA 6Gb/s |
Channel Qty: | 8 |
RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Video Interfaces: | VGA |
Networking | |
Ethernet Ports: | 2 x 10 Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Remote Management Controller: | Intel Baseboard Management Controller (BMC) |
Features: | Integrated BMC with IPMI |
Expansion / Connectivity | |
Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 (low-profile) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 |
Interfaces: | 1 x VGA ¦ 2 x USB 3.0 ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x serial |
Miscellaneous | |
Included Accessories: | 2 x CPU Heatsink, air duct, 2 x riser cards, node power board, 1U node tray, 3 x system fans, external VGA port bracket, Intel Server Board S2600BPBR |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
The Intel Compute Module HNS2600BPB24R is a powerful, blade form factor server designed to meet the needs of modern data centers and high-demand computing environments. With no CPU included, it offers the flexibility to customize the processing power to match specific requirements. The module supports 2-way server scalability and is equipped with 16 DIMM slots for DDR4 SDRAM, ensuring ample memory capacity for even the most memory-intensive applications. Networking is made robust with dual 10 Gigabit Ethernet ports and an integrated BMC with IPMI 2.0 for remote management. Storage flexibility is a key feature, with support for up to 8 Serial ATA-600 channels and various RAID configurations, providing reliable data storage options. Additionally, the server's security is bolstered by a Trusted Platform Module (TPM 2.0) security chip, safeguarding data against external threats. This server module is an ideal choice for businesses looking for a scalable, secure, and high-performance computing solution.
- 2-way server scalability with support for two processors
- Dual 10 Gigabit Ethernet ports for high-speed networking
- Integrated BMC with IPMI 2.0 for efficient remote management
- Supports various RAID levels for flexible storage solutions
- Trusted Platform Module (TPM 2.0) for enhanced security
