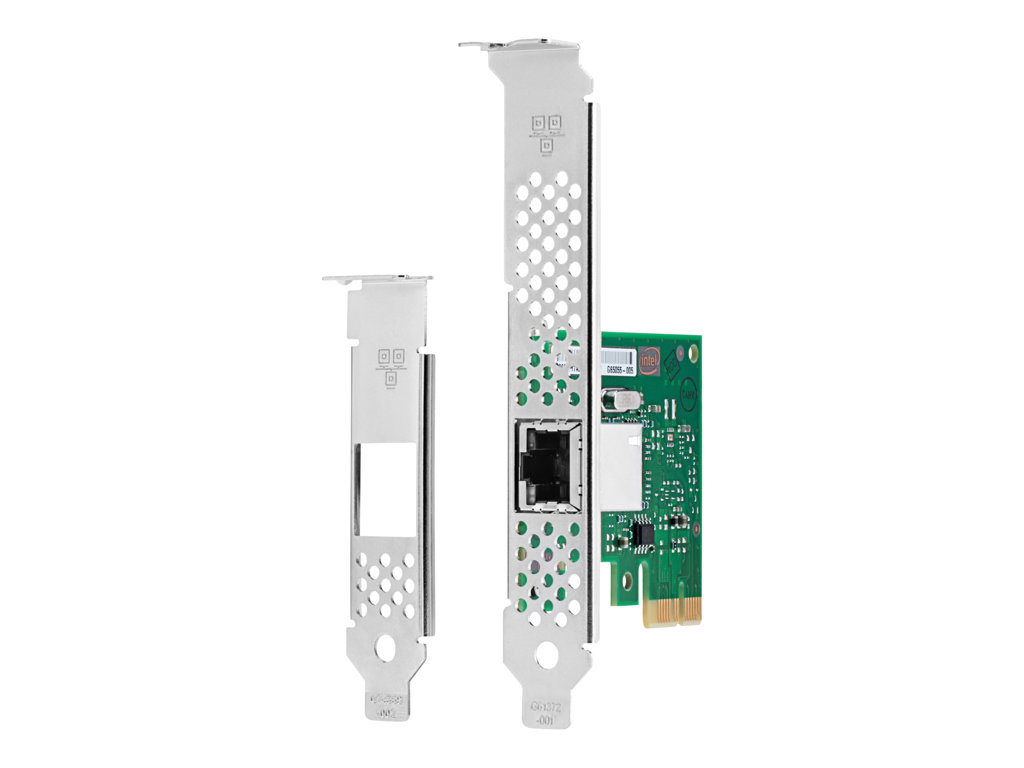

Printers & POSIntel I210-T1 - network adapter - PCIe 2.1 - Gigabit Ethernet x 1
SKU E0X95AA
| Product Description: | Intel I210-T1 - network adapter - PCIe 2.1 - Gigabit Ethernet x 1 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express 2.1 x1 |
| PCI Specification Revision: | PCIe 2.1 |
| Ports: | Gigabit Ethernet x 1 |
| Dimensions (WxDxH): | 2 cm x 6.5 cm x 5.5 cm |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card - low profile |
| Interface (Bus) Type: | PCI Express 2.1 x1 |
| PCI Specification Revision: | PCIe 2.1 |
| Networking | |
| Ports: | Gigabit Ethernet x 1 |
| Connectivity Technology: | Wired |
| Cabling Type: | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Remote Management Protocol: | DMI |
| Features: | Full duplex capability, WOL, PXE support |
| Compliant Standards: | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, WfM 2.0, IEEE 802.3az |
| Processor / Memory | |
| Processor: | Intel |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Included Accessories: | Low-profile bracket |
| Compliant Standards: | FCC Class B certified, TUV, TUV GS, cTUVus |
| Power | |
| Power Consumption Operational: | 3 Watt |
| Software / System Requirements | |
| OS Required: | SUSE Linux Enterprise Desktop 11, Microsoft Windows Vista Business (32/64 bits), Microsoft Windows 7 Professional (32/64 bits), Red Hat Enterprise Linux 5.3 or later, Red Hat Enterprise Linux 6, Red Hat Enterprise Linux 4.8 or later, Windows 8, Windows 8 Pro |
| Dimensions & Weight | |
| Width: | 2 cm |
| Depth: | 6.5 cm |
| Height: | 5.5 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 55 °C |
| Compatibility Information | |
| Designed For: | HP 280 G2, 280 G3, 280 G4, 280 G5, 280 Pro G5, 285 G3, 285 G6, 290 G1, 290 G3, 290 G4, 295 G6 ¦ HP Desktop Pro 300 G6, Pro A 300 G3, Pro A G2, Pro A G3 ¦ HP EliteDesk 705 G3, 800 G1 (SFF, tower), 800 G2, 800 G4, 800 G6, 805 G6 ¦ HP ProDesk 400 G1, 400 G4, 400 G5 (micro tower, SFF), 405 G1, 405 G6, 490 G1, 490 G3, 600 G1, 600 G2 (micro tower, SFF), 600 G5 ¦ HP Workstation Z1 G5 Entry, Z1 G6 Entry, Z230, Z4 G4, Z420, Z6 G4, Z620, Z8 G4, Z820 ¦ HP ZCentral 4R ¦ HP Compaq 6305 Pro |
The Intel Ethernet Server Adapter I210 builds on Intel's history of excellence in Ethernet products. Intel continues its market leadership with this newest generation PCIe GbE network adapter. Based on the Intel Ethernet Controller I210, this adapter represents the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center offering Audio-Video-Bridging (AVB) support, along with power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
- Low-halogen single-port PCI-Express 10/100/1000 Ethernet adapter
- The power management features including Energy Efficient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased efficiency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream synchronization, buffering, and reservation
- High-performing design supporting PCI Express Gen 2.1 2.5 GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
The technical details come from 3rd party. edgemo is not responsible for any errors.
