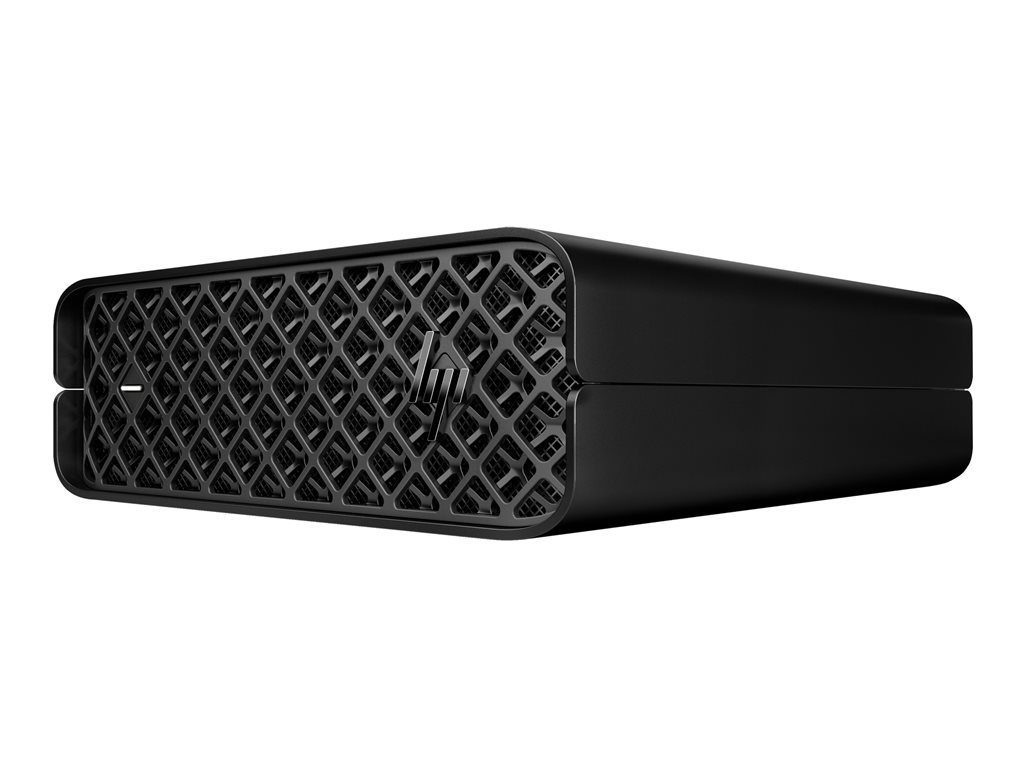

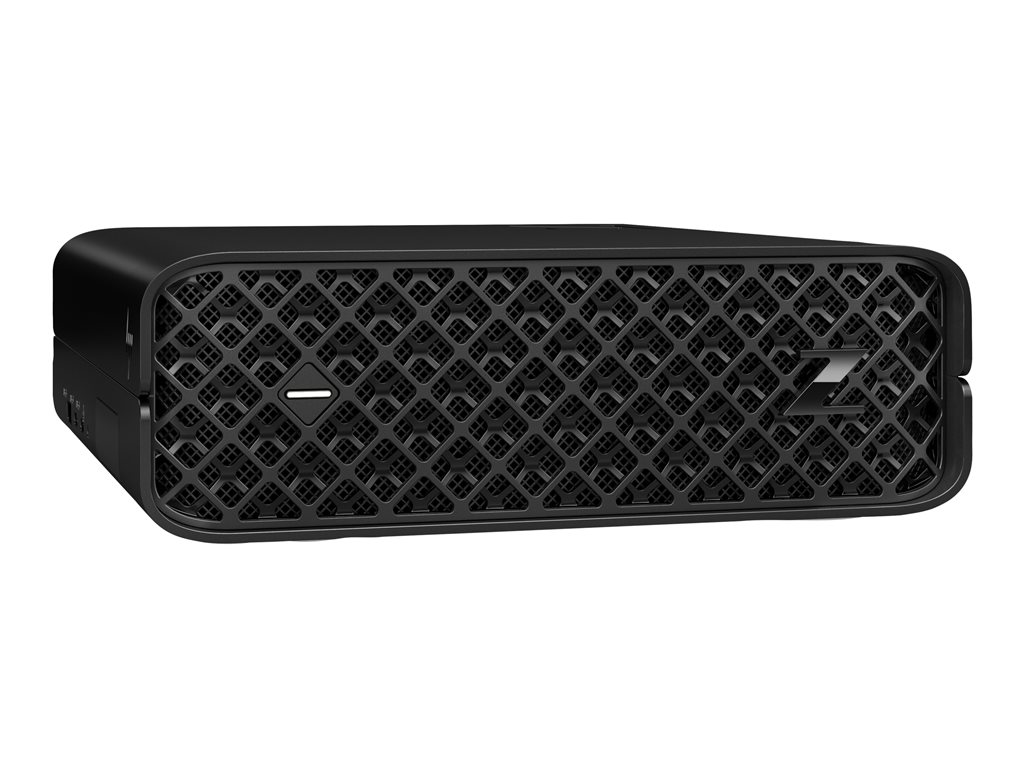

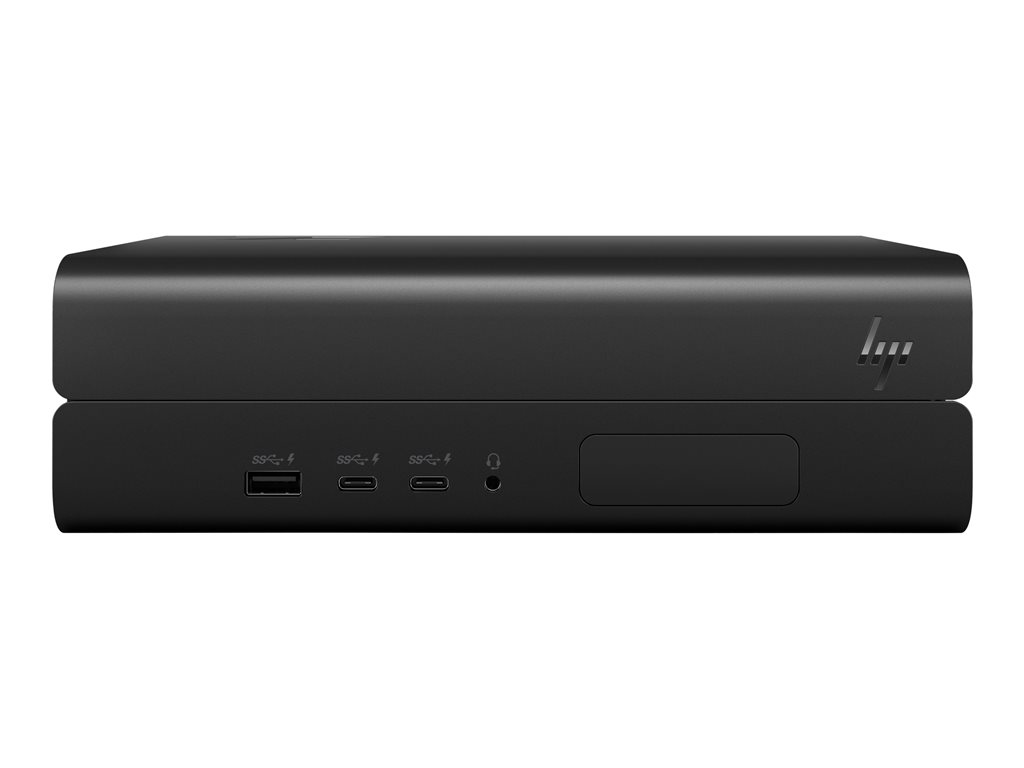

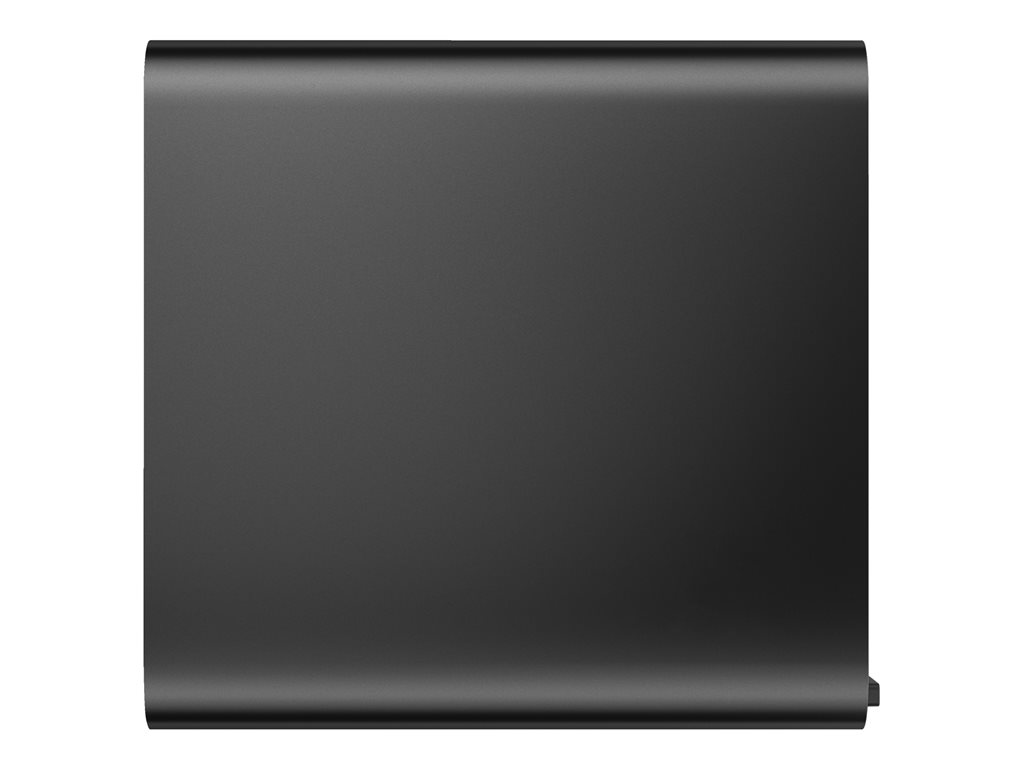

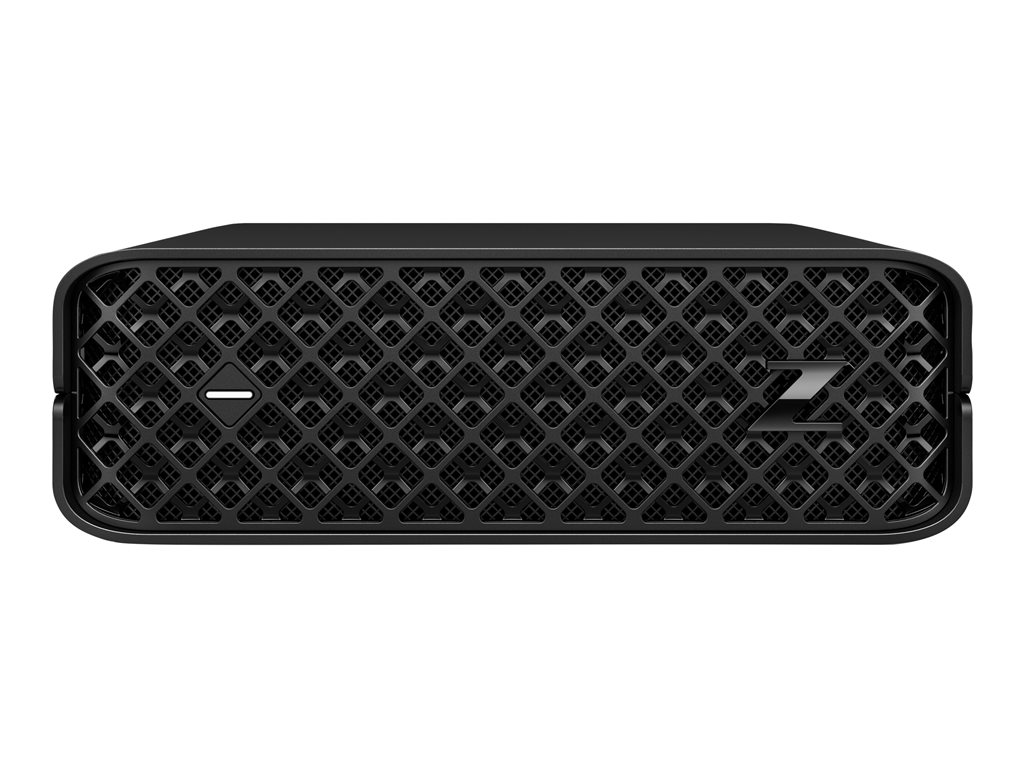

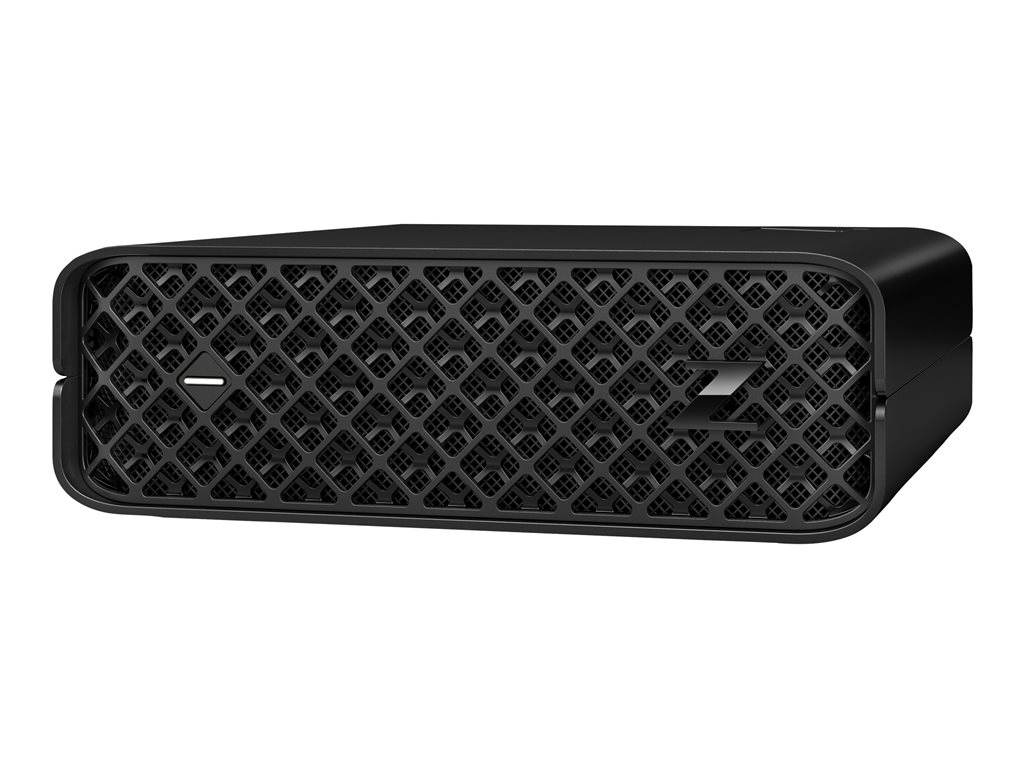

HP Workstation Z2 G9 - mini Core i9 i9-14900K 3.2 GHz - 64 GB - SSD 1 TB
SKU 997F5ET#UUW
Product Description: | HP Workstation Z2 G9 - mini Core i9 i9-14900K 3.2 GHz - 64 GB - SSD 1 TB |
Type: | Workstation - mini |
Height (Rack Units): | 5U |
Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
Processor: | 1 x Intel Core i9 (14th Gen) i9-14900K / 3.2 GHz (up to 6 GHz, (24-core) |
Processor Socket: | LGA1700 Socket |
Processor Main Features: | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost |
- Specifications
- Description
General | |
Type: | Workstation |
Product Form Factor: | Mini - 5U |
Built-in Devices: | Speaker |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
Processor / Chipset | |
CPU: | Intel Core i9 (14th Gen) i9-14900K |
Clock Speed: | 3.2 GHz (P-core) / 2.4 GHz (E-core) |
Max Turbo Speed: | 6 GHz (P-core) / 4.4 GHz (E-core) |
Number of Cores: | 24-core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
L2 cache: | 32 MB |
CPU Upgradability: | Upgradable |
Processor Main Features: | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0, Intel Thermal Velocity Boost |
CPU Socket: | LGA1700 Socket |
Chipset Type: | Intel W680 |
Cache Memory | |
Installed Size: | L3 Cache - 36 MB |
Cache Per Processor: | 36 MB |
RAM | |
Installed Size: | 64 GB (installed) / 64 GB (max) |
Technology: | DDR5 SDRAM - non-ECC |
Effective Memory Speed: | 5600 MHz |
Rated Memory Speed: | 5600 MHz |
Form Factor: | SO-DIMM 262-pin |
Slots: | 2 (Total) / 0 (empty) |
Configuration Features: | 2 x 32 GB |
Hard Drive | |
Type: | SSD - M.2 2280 |
Capacity: | 1 x 1 TB |
Interface Type: | PCI Express 4.0 |
Features: | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
Storage Controller | |
Type: | 1 x SATA/NVMe |
Controller Interface Type: | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
RAID Level: | RAID 0, RAID 1 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Multi-GPU Configuration: | 1 single GPU card / integrated GPU |
Graphics Processor: | NVIDIA RTX 4000 Ada / Intel UHD Graphics 770 |
Video Memory: | 20 GB GDDR6 SDRAM |
Video Interfaces: | DisplayPort |
Audio Output | |
Compliant Standards: | High Definition Audio |
Input Device | |
Type: | Mouse, keyboard |
Keyboard | |
Keyboard Name: | HP 320K |
Interface: | USB |
Mouse | |
Mouse Name: | HP 320M |
Networking | |
Ethernet Controller: | Intel I219-LM |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Features: | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
Compliant Standards: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az |
Expansion / Connectivity | |
Slots: | 1 (total) / 0 (free) x PCIe 4.0 x16 ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card (for WLAN) |
Interfaces: | 1 x headphones/microphone (CTIA and OMTP headset support) ¦ 4 x USB 3.2 Gen 2 (charging) ¦ 2 x USB-C 3.2 Gen 2x2 (charging) ¦ 2 x DisplayPort 1.4 ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x Mini DisplayPort |
Miscellaneous | |
Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
Compliant Standards: | RoHS, FIPS 140-2, WEEE, CECP, low halogen |
Power | |
Device Type: | Power adapter |
Voltage Required: | AC 115/230 V (50/60 Hz) |
Power Provided: | 280 Watt |
Efficiency: | 90% |
Power Factor Correction: | Yes |
Operating System / Software | |
OS Provided: | Windows 11 Pro Danish / English / Finnish / Norwegian / Swedish |
Software: | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP Image Assistant, HP PC Hardware Diagnostics, HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP Sure Start Gen7 |
Sustainability Information | |
Manufacturing (kg CO2e): | 216 |
Logistics (kg CO2e): | 1 |
EOL (kg CO2e): | 1 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 3 years - on-site |
Dimensions & Weight | |
Width: | 21.1 cm |
Depth: | 21.8 cm |
Height: | 6.9 cm |
Weight: | 2.4 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 17 cm |
Shipping Depth: | 49.9 cm |
Shipping Height: | 29.8 cm |
Shipping Weight: | 4.8 kg |
Environmental Parameters | |
Min Operating Temperature: | 5 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 10 - 85% (non-condensing) |
The HP Workstation Z2 G9 stands out as a formidable tool in the HP Inc. lineup, designed to meet the demands of professionals seeking both power and security. Without a built-in display, it offers the flexibility to choose your preferred monitor, ensuring a personalized setup that meets your specific needs. At its core, an Intel Core i9 processor provides the muscle needed for demanding applications, while DDR5 SDRAM facilitates smooth multitasking across various projects. Storage is swift and reliable, thanks to a PCI Express SSD, ensuring quick boot times and efficient data retrieval. Security is paramount, with a Trusted Platform Module (TPM 2.0) chip installed to safeguard sensitive information. Additionally, the workstation's support for both CTIA and OMTP headsets, alongside a robust networking suite that includes Ethernet, Fast Ethernet, and Gigabit Ethernet, ensures you stay connected in any setup. Whether for design, analysis, or computation, the HP Workstation Z2 G9 is engineered to boost productivity and protect your digital environment.
- Intel Core i9 processor for high-speed performance
- DDR5 SDRAM for efficient multitasking
- PCI Express SSD for quick data access and boot times
- Trusted Platform Module (TPM 2.0) security chip for enhanced data protection
- Supports both CTIA and OMTP headsets for versatile audio connectivity
The technical details come from 3rd party. edgemo is not responsible for any errors.
