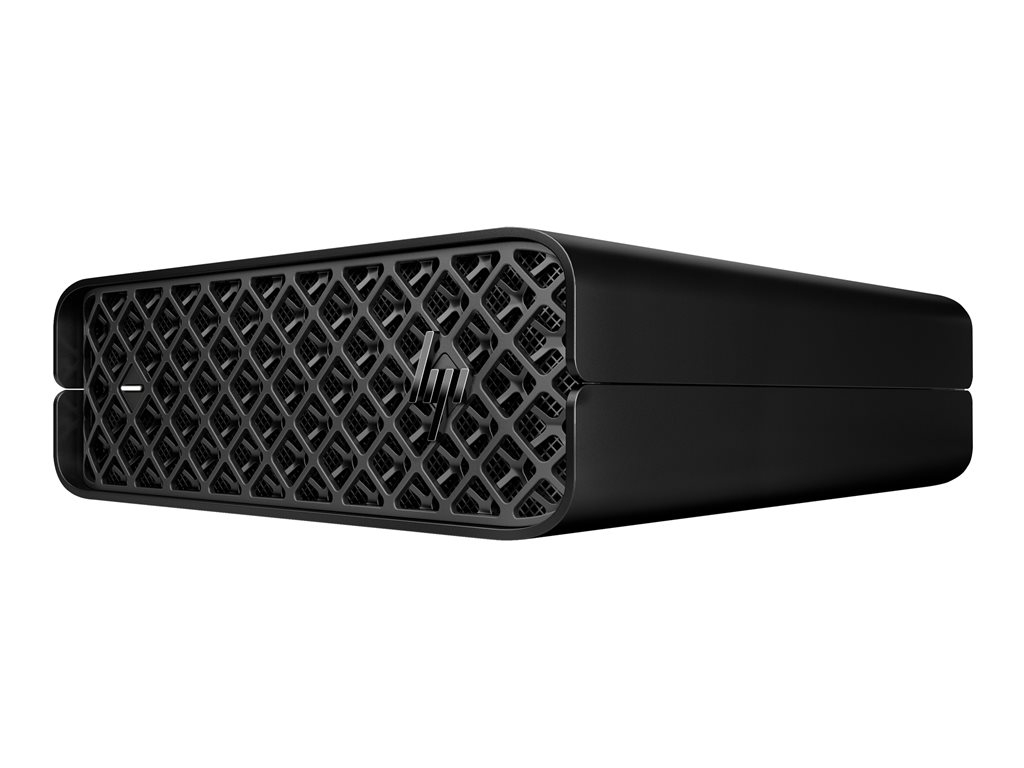

Printers & POSHP Workstation Z2 G9 - mini - Core i7 13700 2.1 GHz - 16 GB - SSD 512 GB - Pan Nordic
SKU 5F112EA#UUW
| Product Description: | HP Workstation Z2 G9 - mini - Core i7 13700 2.1 GHz - 16 GB - SSD 512 GB - Pan Nordic |
| Type: | Workstation - mini |
| Height (Rack Units): | 5U |
| Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
| Processor: | 1 x Intel Core i7 (13th Gen) 13700 / 2.1 GHz (, up to 5.2 GHz, (16-core) |
| Processor Socket: | LGA1700 Socket |
| Processor Main Features: | Intel Turbo Boost Technology |
- Specifications
- Description
| General | |
| Type: | Workstation |
| Product Form Factor: | Mini - 5U |
| Sensors: | HP Tamper Lock |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
| Processor / Chipset | |
| CPU: | Intel Core i7 (13th Gen) 13700 |
| Clock Speed: | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed: | 5.2 GHz (P-core) / 4.1 GHz (E-core) |
| Number of Cores: | 16-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| L2 cache: | 24 MB |
| CPU Upgradability: | Upgradable |
| Processor Main Features: | Intel Turbo Boost Technology |
| CPU Socket: | LGA1700 Socket |
| Chipset Type: | Intel W680 |
| Cache Memory | |
| Installed Size: | L3 Cache - 30 MB |
| Cache Per Processor: | 30 MB |
| RAM | |
| Installed Size: | 16 GB / 64 GB (max) |
| Technology: | DDR5 SDRAM - non-ECC |
| Effective Memory Speed: | 5600 MHz |
| Rated Memory Speed: | 5600 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 2 (Total) / 1 (empty) |
| Features: | Dual channel memory architecture |
| Configuration Features: | 1 x 16 GB |
| Hard Drive | |
| Type: | SSD - M.2 2280 |
| Capacity: | 1 x 512 GB |
| Interface Type: | PCI Express 4.0 x4 |
| Features: | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Storage Controller | |
| Type: | 1 x SATA/NVMe |
| Controller Interface Type: | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level: | RAID 0, RAID 1 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics 770 |
| Video Interfaces: | DisplayPort |
| Audio Output | |
| Sound Output Mode: | Mono |
| Compliant Standards: | High Definition Audio |
| Input Device | |
| Type: | Mouse, keyboard |
| Keyboard | |
| Keyboard Name: | HP 320K |
| Interface: | USB |
| Localization & Layout: | Pan Nordic |
| Mouse | |
| Mouse Name: | HP 320M |
| Interface: | USB |
| Networking | |
| Ethernet Controller: | Intel I219-LM |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features: | Wake on LAN (WoL), auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Expansion / Connectivity | |
| Slots: | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card (for Intel CNVi wireless module) |
| Interfaces: | 1 x headphones/microphone (CTIA and OMTP headset support) ¦ 4 x USB 3.2 Gen 2 (charging) ¦ 2 x USB-C 3.2 Gen 2x2 (charging) ¦ 2 x DisplayPort 1.4 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), chassis intrusion sensor |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | RoHS, FIPS 140-2, WEEE, CECP, low halogen |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 115/230 V (50/60 Hz) |
| Power Provided: | 280 Watt |
| Efficiency: | 90% |
| Power Factor Correction: | Yes |
| Operating System / Software | |
| OS Provided: | Windows 11 Pro Danish / English / Finnish / Norwegian / Swedish |
| Software: | HP Support Assistant, HP Performance Advisor, Windows Defender, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOS Config Utility, HP Image Assistant, HP Documentation, HP PC Hardware Diagnostics, HP System Software Manager, HP Notifications, Power On Authentication, HP Privacy Settings, HP Cloud Recovery, HP QuickDrop, HP BIOSphere Gen6, HP Desktop Support Utility, myHP, Touchpoint Customiser for Commercial, HP Easy Clean |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| Dimensions & Weight | |
| Width: | 21.1 cm |
| Depth: | 21.8 cm |
| Height: | 6.9 cm |
| Weight: | 2.4 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 17 cm |
| Shipping Depth: | 49.9 cm |
| Shipping Height: | 29.8 cm |
| Shipping Weight: | 4.8 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 10 - 85% (non-condensing) |
Experience a new level of performance for your professional workflow. The Z2 Tower seamlessly runs multi-threaded apps for fast rendering, simulation, and real-time ray tracing. And when demands change, you have impressive expandability to upgrade.
- Your benchmark for entry workstation power
- Rely on your workstation
- Work, play, and create in VR
- Phase change cooling
- Fans and venting
- Unthrottled performance
- High performance mode
- Better for people, better for the planet
The technical details come from 3rd party. edgemo is not responsible for any errors.
