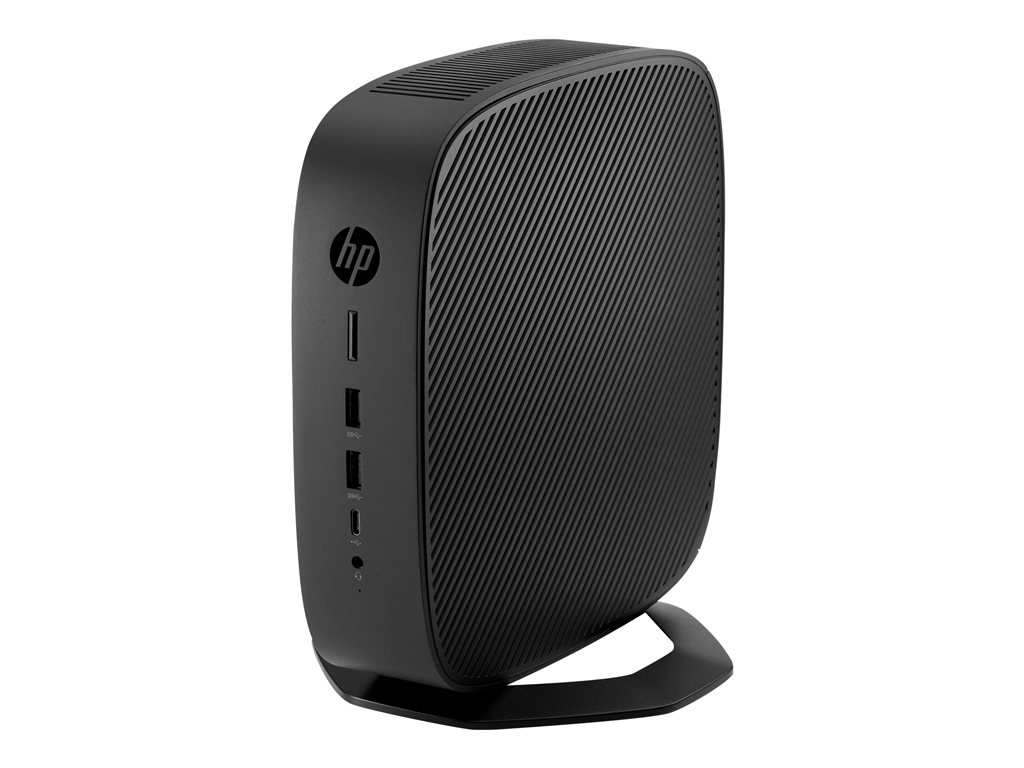

HP t740 - SFF - Ryzen Embedded V1756B 3.25 GHz - 8 GB - flash 32 GB

SKU 12H65EA#UUW
Product Description:HP t740 - SFF - Ryzen Embedded V1756B 3.25 GHz - 8 GB - flash 32 GB
Type:Thin client - small form factor
Localisation:Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden
Processor:1 x AMD Ryzen Embedded V1756B / 3.25 GHz (, up to 3.6 GHz, (Quad-Core)
Cache Memory:4 MB L3 Cache
Cache Per Processor:4 MB
RAM:8 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC
22-04-2024
  • Specifications
  • Description
General
Type:Thin client
Product Form Factor:Small form factor
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Localisation:Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden
Processor / Chipset
CPU:AMD Ryzen Embedded V1756B
Clock Speed:3.25 GHz
Max Turbo Speed:3.6 GHz
Number of Cores:Quad-Core
CPU Qty:1
Max CPU Qty:1
CPU Upgradability:Not upgradable
Cache Memory
Installed Size:L3 Cache - 4 MB
Cache Per Processor:4 MB
RAM
Installed Size:8 GB / 32 GB (max)
Technology:DDR4 SDRAM - non-ECC
Effective Memory Speed:2400 MHz
Rated Memory Speed:2400 MHz
Form Factor:SO-DIMM 260-pin
Slots:2 (Total) / 0 (empty)
Features:Dual channel memory architecture
Configuration Features:2 x 4 GB
Hard Drive
Type:Flash - M.2
Capacity:1 x 32 GB
Features:eMMC
Storage Controller
Type:1 x SATA
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:AMD Radeon Vega 8
Video Interfaces:DisplayPort
Max Monitors Supported:4
Audio Output
Speakers Included:1 x mixed channel
Input Device
Type:Mouse, keyboard
Keyboard
Keyboard Name:HP Business Slim Keyboard
Interface:USB
Mouse
Technology:Optical
Interface:USB
Networking
Ethernet Controller:Realtek RTL8111EPH-CG
Wireless LAN Supported:Yes
Wireless NIC:Realtek RTL8852AE
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Remote Management Protocol:SNMP
Features:Wake on LAN (WoL), PXE support, dual stream (2x2)
Compliant Standards:IEEE 802.1p, IEEE 802.1x
Expansion / Connectivity
Slots:2 (total) / 1 (free) x M.2 Card ¦ 1 (total) / 1 (free) x PCIe x16 - half-height (x8 mode)
Interfaces:2 x USB 2.0 ¦ 3 x USB 3.1 Gen 1 (1 front, 2 rear) ¦ 4 x DisplayPort 1.2 ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C 3.1 Gen 2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x headphones/microphone
Miscellaneous
Included Accessories:HP 90W Smart nPFC AC Adapter
Theft/Intrusion Protection:Security lock slot (cable lock sold separately)
Security Slot Type:Kensington security slot
VESA Mounting Interface:100 x 100 mm
Compliant Standards:FCC Class B certified, UL, BSMI, GS, CCC, ICES Class B, KCC Class B, CECP, RoHS2, VCCI Class B, CISPR Class B, SEPA, low halogen, HP GSE
Power
Device Type:Power adapter
Power Device Name:HP Smart AC Adapter
Voltage Required:AC 120/230 V (50/60 Hz)
Power Provided:90 Watt
Power Consumption Operational:16.57 Watt
Power Consumption Stand by:1.32 Watt
Power Consumption Sleep:1.47 Watt
Operating System / Software
OS Provided:HP ThinPro
Software:Citrix ICA, Mozilla Firefox, HP Easy Tools, HP Device Manager, LogOn Manager, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP CIK for Microsoft SCCM, Citrix Workspace Suite, HP Smart Zero Client Services
Sustainability Information
ENERGY STAR Certified:Yes
Manufacturer Warranty
Service & Support:Limited warranty - parts and labour - 3 years
Dimensions & Weight
Width:5 cm
Depth:21 cm
Height:21 cm
Weight:1.323 kg
Dimensions & Weight (Shipping)
Shipping Weight:3.798 kg
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 90% (non-condensing)
vis mere
HP t740 Thin Client is built to drive graphics-intensive workflows on virtual and local computing environments, projecting to up to six 4K displays.
  • Ultimate power & performance
  • Robust security
  • Modern flexibility




The technical details come from 3rd party. edgemo is not responsible for any errors.
