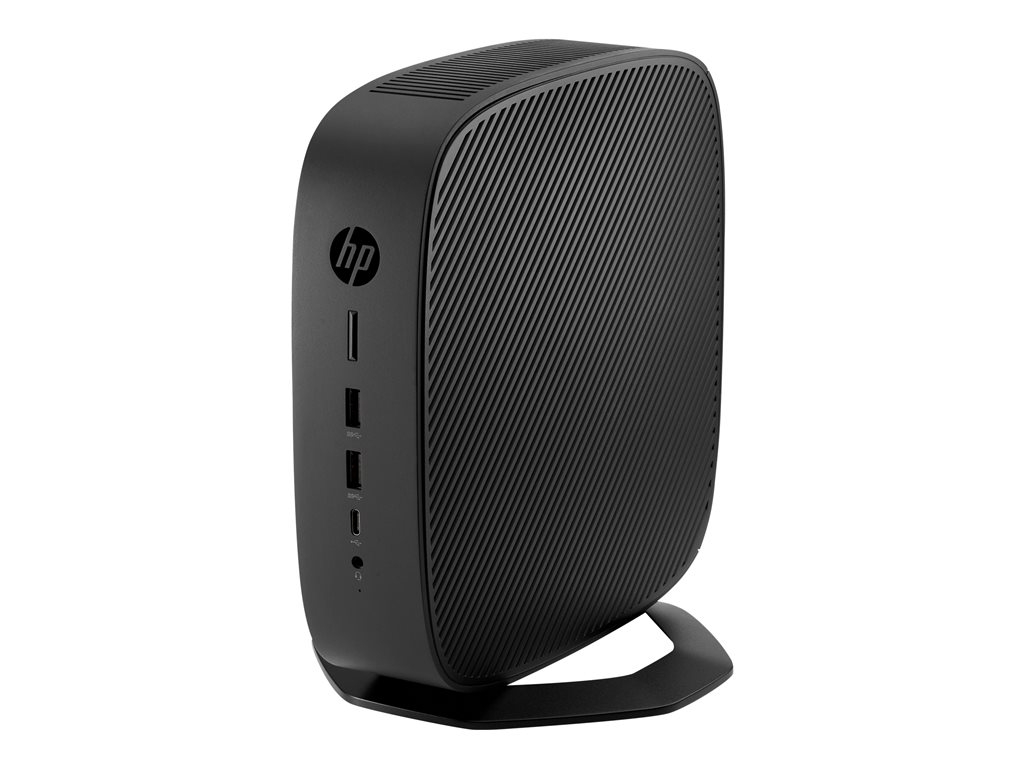

HP t740 - SFF - Ryzen Embedded V1756B 3.25 GHz - 4 GB - flash 32 GB
SKU 49S99ES#AK8
Product Description: | HP t740 - SFF - Ryzen Embedded V1756B 3.25 GHz - 4 GB - flash 32 GB |
Type: | Thin client - small form factor |
Localisation: | Language: Finnish, Swedish / region: Finland, Sweden |
Processor: | 1 x AMD Ryzen Embedded V1756B / 3.25 GHz (, up to 3.6 GHz, (Quad-Core) |
Cache Memory: | 4 MB L3 Cache |
Cache Per Processor: | 4 MB |
RAM: | 4 GB (installed) / 32 GB (max) - DDR4 SDRAM |
- Specifications
- Description
General | |
Type: | Thin client |
Product Form Factor: | Small form factor |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Localisation: | Language: Finnish, Swedish / region: Finland, Sweden |
Processor / Chipset | |
CPU: | AMD Ryzen Embedded V1756B |
Clock Speed: | 3.25 GHz |
Max Turbo Speed: | 3.6 GHz |
Number of Cores: | Quad-Core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
CPU Upgradability: | Not upgradable |
Cache Memory | |
Installed Size: | L3 Cache - 4 MB |
Cache Per Processor: | 4 MB |
RAM | |
Installed Size: | 4 GB / 32 GB (max) |
Technology: | DDR4 SDRAM |
Effective Memory Speed: | 2400 MHz |
Rated Memory Speed: | 2400 MHz |
Form Factor: | SO-DIMM 260-pin |
Slots: | 2 (Total) / 1 (empty) |
Features: | Dual channel memory architecture |
Configuration Features: | 1 x 4 GB |
Hard Drive | |
Type: | Flash - M.2 |
Capacity: | 1 x 32 GB |
Features: | eMMC |
Storage Controller | |
Type: | 1 x SATA |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Graphics Processor: | AMD Radeon Vega 8 |
Video Interfaces: | DisplayPort |
Max Monitors Supported: | 4 |
Networking | |
Ethernet Controller: | Realtek RTL8111EPH-CG, Allied Telesis AT-2914 SX/SC |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | SNMP |
Features: | Wake on LAN (WoL), PXE support |
Compliant Standards: | IEEE 802.1p, IEEE 802.1x |
Expansion / Connectivity | |
Slots: | 2 (total) / 0 (free) x M.2 Card ¦ 1 (total) / 1 (free) x PCIe x16 - half-height (x8 mode) |
Interfaces: | 2 x USB 2.0 ¦ 3 x USB 3.1 Gen 1 (1 front, 2 rear) ¦ 4 x DisplayPort 1.2 ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C 3.1 Gen 2 ¦ LAN (Gigabit Ethernet) ¦ 1 x headphones/microphone |
Miscellaneous | |
Included Accessories: | HP 90W Smart nPFC AC Adapter |
Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
VESA Mounting Interface: | 100 x 100 mm |
Compliant Standards: | FCC Class B certified, UL, BSMI, GS, CCC, ICES Class B, KCC Class B, CECP, RoHS2, VCCI Class B, CISPR Class B, SEPA, low halogen, HP GSE |
Power | |
Device Type: | Power adapter |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 90 Watt |
Power Consumption Operational: | 16.57 Watt |
Power Consumption Stand by: | 1.32 Watt |
Power Consumption Sleep: | 1.47 Watt |
Operating System / Software | |
OS Provided: | HP ThinPro English / Finnish / Swedish |
Software: | Citrix ICA, Mozilla Firefox, HP Easy Tools, HP Device Manager, LogOn Manager, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP CIK for Microsoft SCCM, Citrix Workspace Suite, HP Smart Zero Client Services |
Sustainability Information | |
ENERGY STAR Certified: | Yes |
Dimensions & Weight | |
Width: | 5 cm |
Depth: | 21 cm |
Height: | 21 cm |
Weight: | 1.323 kg |
Dimensions & Weight (Shipping) | |
Shipping Weight: | 3.798 kg |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
HP t740 Thin Client is built to drive graphics-intensive workflows on virtual and local computing environments, projecting to up to six 4K displays.
- Ultimate power & performance
- Robust security
- Modern flexibility
