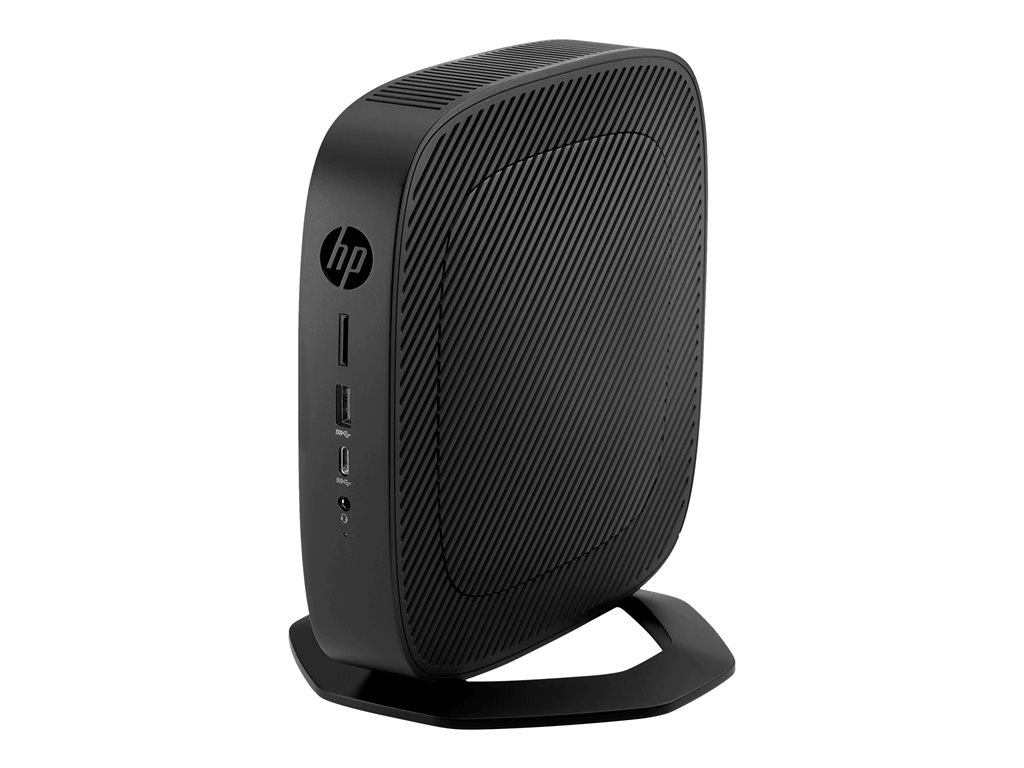

HP t540 - USFF - Ryzen Embedded R1305G 1.5 GHz - 8 GB - flash 64 GB
SKU 12H41EA#UUW
Product Description: | HP t540 - USFF - Ryzen Embedded R1305G 1.5 GHz - 8 GB - flash 64 GB |
Type: | Thin client - ultra small form factor |
Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
Processor: | 1 x AMD Ryzen Embedded R1305G / 1.5 GHz (, up to 2.8 GHz, (Dual-Core) |
Cache Memory: | 4 MB L3 Cache |
Cache Per Processor: | 4 MB |
RAM: | 8 GB (installed) / 16 GB (max) - DDR4 SDRAM - non-ECC |
- Specifications
- Description
General | |
Type: | Thin client |
Product Form Factor: | Ultra small form factor |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
Processor / Chipset | |
CPU: | AMD Ryzen Embedded R1305G |
Clock Speed: | 1.5 GHz |
Max Turbo Speed: | 2.8 GHz |
Number of Cores: | Dual-Core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
CPU Upgradability: | Not upgradable |
Cache Memory | |
Installed Size: | L3 Cache - 4 MB |
Cache Per Processor: | 4 MB |
RAM | |
Installed Size: | 8 GB / 16 GB (max) |
Technology: | DDR4 SDRAM - non-ECC |
Effective Memory Speed: | 2400 MHz |
Rated Memory Speed: | 2400 MHz |
Form Factor: | SO-DIMM 260-pin |
Slots: | 1 (Total) / 0 (empty) |
Configuration Features: | 1 x 8 GB |
Hard Drive | |
Type: | Flash - M.2 |
Capacity: | 1 x 64 GB |
Features: | eMMC |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Graphics Processor: | AMD Radeon Vega 3 |
Video Interfaces: | DisplayPort |
Max Monitors Supported: | 2 |
Input Device | |
Type: | Mouse, keyboard |
Keyboard | |
Keyboard Name: | HP USB Business Slim Keyboard |
Interface: | USB |
Mouse | |
Technology: | Optical |
Interface: | USB |
Networking | |
Ethernet Controller: | Realtek RTL8111HSH |
Wireless LAN Supported: | Yes |
Wireless NIC: | Realtek RTL8852AE |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
Features: | Dual stream (2x2) |
Compliant Standards: | IEEE 802.1x |
Expansion / Connectivity | |
Slots: | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
Interfaces: | 3 x USB 3.1 Gen 1 (1 front, 2 rear) ¦ 1 x USB-C 3.1 Gen 1 (1 in front) ¦ 2 x USB 2.0 (2 rear) ¦ Headphones/microphone (1 in front) ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 |
Miscellaneous | |
Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
Compliant Standards: | FCC Class B certified, UL, BSMI, GS, CB, CCC, ICES Class B, WEEE, KCC Class B, AS/NZS, ERP, CECP, RoHS2, VCCI Class B, CP65, CISPR Class B, SEPA, low halogen, HP GSE, EN, CNS, IEEE 1680.1 |
Power | |
Device Type: | Power adapter |
Power Device Name: | HP Smart AC Adapter |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 45 Watt |
Operating System / Software | |
OS Provided: | Windows 10 IoT Enterprise for Thin Clients |
Software: | Microsoft Internet Explorer, Citrix ICA, Microsoft RDP, Microsoft Windows Media Player, HP Device Manager, LogOn Manager, Windows Defender, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP ThinUpdate, HP Easy Shell, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Write Manager, Microsoft Bitlocker Encryption, Microsoft Unified Write Filter |
Sustainability Information | |
ENERGY STAR Certified: | Yes |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 3 years |
Dimensions & Weight | |
Width: | 3.5 cm |
Depth: | 20 cm |
Height: | 20 cm |
Weight: | 1.4 kg |
Dimensions & Weight (Shipping) | |
Shipping Weight: | 2.879 kg |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
Transition your fleet to the cloud with the HP t540 thin client. Support your computing needs with versatile configurations and component-level security.
- Designed for your organization's computing needs
- Neutralize threats and keep data safe and secure
- High performance
- Dual UHD/4K display support
The technical details come from 3rd party. edgemo is not responsible for any errors.
