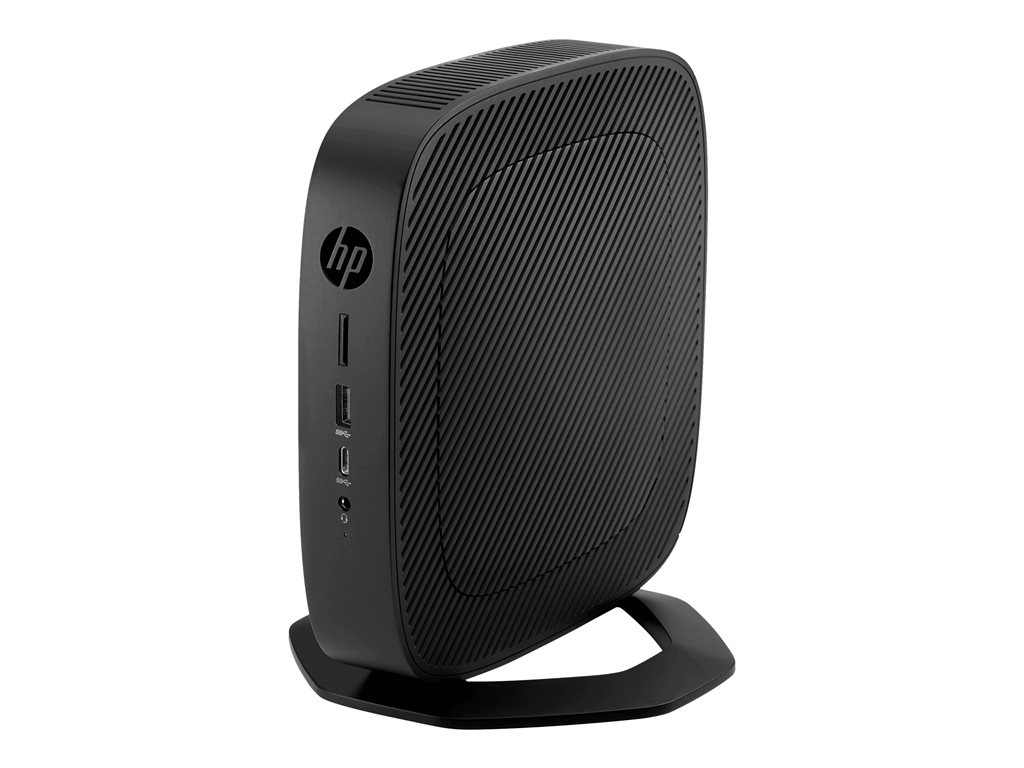

Printers & POSHP t540 - USFF Ryzen Embedded R1305G 1.5 GHz - 4 GB - flash 32 GB
SKU 12H61EA#UUW
| Product Description: | HP t540 - USFF Ryzen Embedded R1305G 1.5 GHz - 4 GB - flash 32 GB |
| Type: | Thin client - USFF |
| Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
| Processor: | 1 x AMD Ryzen Embedded R1305G / 1.5 GHz (up to 2.8 GHz, (Dual-Core) |
| Cache Memory: | 4 MB L3 Cache |
| Cache Per Processor: | 4 MB |
| RAM: | 4 GB (installed) / 16 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Thin client |
| Product Form Factor: | USFF |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
| Processor / Chipset | |
| CPU: | AMD Ryzen Embedded R1305G |
| Clock Speed: | 1.5 GHz |
| Max Turbo Speed: | 2.8 GHz |
| Number of Cores: | Dual-Core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Not upgradable |
| Cache Memory | |
| Installed Size: | L3 Cache - 4 MB |
| Cache Per Processor: | 4 MB |
| RAM | |
| Installed Size: | 4 GB (installed) / 16 GB (max) |
| Technology: | DDR4 SDRAM |
| Effective Memory Speed: | 2400 MHz |
| Rated Memory Speed: | 2400 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 1 (Total) / 0 (empty) |
| Configuration Features: | 1 x 4 GB |
| Hard Drive | |
| Type: | Flash - M.2 |
| Capacity: | 1 x 32 GB |
| Features: | eMMC |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | AMD Radeon Vega 3 |
| Video Interfaces: | DisplayPort |
| Max Monitors Supported: | 2 |
| Input Device | |
| Type: | Mouse, keyboard |
| Keyboard | |
| Keyboard Name: | HP USB Business Slim Keyboard |
| Interface: | USB |
| Mouse | |
| Technology: | Optical |
| Interface: | USB |
| Networking | |
| Ethernet Controller: | Realtek RTL8111HSH |
| Wireless LAN Supported: | Yes |
| Wireless NIC: | Realtek RTL8852AE |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Expansion / Connectivity | |
| Slots: | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| Interfaces: | 3 x USB 3.1 Gen 1 (1 front, 2 rear) ¦ 1 x USB-C 3.1 Gen 1 (1 in front) ¦ 2 x USB 2.0 (2 rear) ¦ Headphones/microphone (1 in front) ¦ 2 x DisplayPort 1.2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial (powered) |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | FCC Class B certified, UL, BSMI, GS, CB, CCC, ICES Class B, WEEE, KCC Class B, AS/NZS, ERP, RoHS2, VCCI Class B, CP65, CISPR Class B, SEPA, low halogen, HP GSE, EN, CNS, IEEE 1680.1 |
| Power | |
| Device Type: | Power adapter |
| Power Device Name: | HP Smart AC Adapter |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 45 Watt |
| Operating System / Software | |
| OS Provided: | IGEL OS |
| Sustainability Information | |
| TCO Certified: | TCO Certified Desktops 9 |
| ENERGY STAR Certified: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 3 years |
| Dimensions & Weight | |
| Width: | 3.5 cm |
| Depth: | 20 cm |
| Height: | 20 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
Transition your fleet to the cloud with the HP t540 thin client. Support your computing needs with versatile configurations and component-level security.
- Designed for your organization's computing needs
- Neutralize threats and keep data safe and secure
- High performance
- Dual UHD/4K display support
The technical details come from 3rd party. edgemo is not responsible for any errors.
