Printers & POSHP t540 - USFF Ryzen Embedded R1305G 1.5 GHz - 4 GB - flash 32 GB - Danish
SKU 12H53EA#ABY

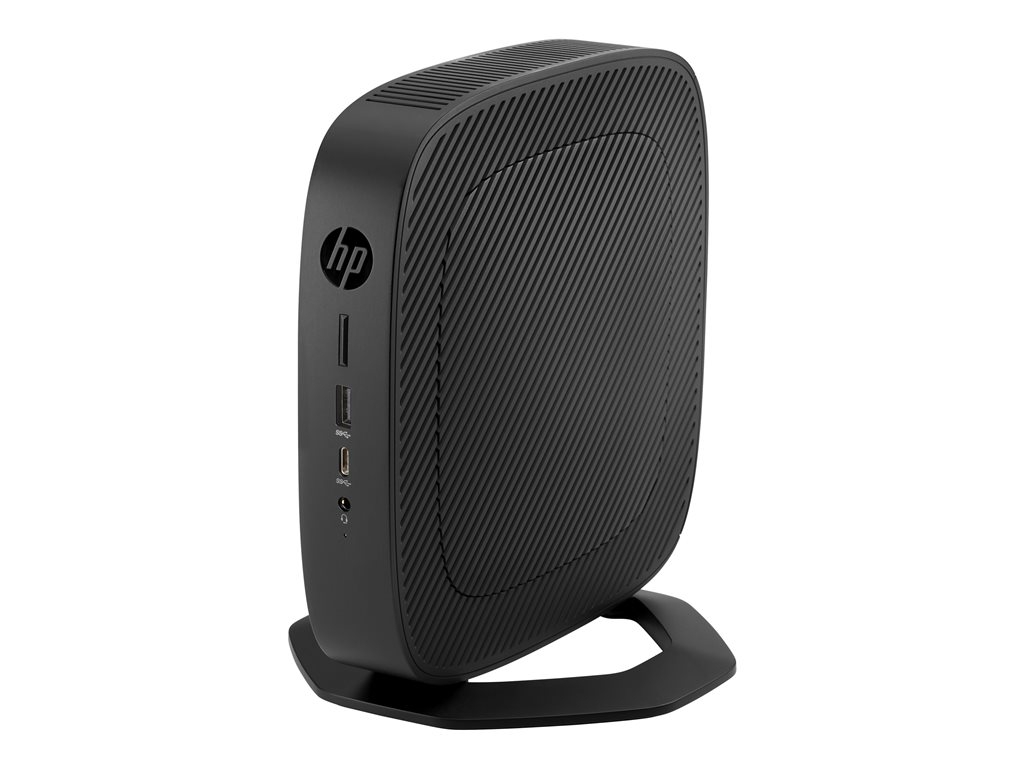

| Product Description: | HP t540 - USFF Ryzen Embedded R1305G 1.5 GHz - 4 GB - flash 32 GB - Danish |
| Type: | Thin client - USFF |
| Localisation: | Language: Danish / region: Denmark |
| Processor: | 1 x AMD Ryzen Embedded R1305G / 1.5 GHz (up to 2.8 GHz, (Dual-Core) |
| Cache Memory: | 4 MB L3 Cache |
| Cache Per Processor: | 4 MB |
| RAM: | 4 GB (installed) / 16 GB (max) - DDR4 SDRAM - non-ECC - PC4-19200 |
- Specifications
- Description
| General | |
| Type: | Thin client |
| Product Form Factor: | USFF |
| Embedded Security: | Trusted Platform Module (TPM) Security Chip |
| Localisation: | Language: Danish / region: Denmark |
| Processor / Chipset | |
| CPU: | AMD Ryzen Embedded R1305G |
| Clock Speed: | 1.5 GHz |
| Max Turbo Speed: | 2.8 GHz |
| Number of Cores: | Dual-Core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| L2 cache: | 2 x 512 KB |
| CPU Upgradability: | Not upgradable |
| Cache Memory | |
| Installed Size: | L3 Cache - 4 MB |
| Cache Per Processor: | 4 MB |
| RAM | |
| Installed Size: | 4 GB (installed) / 16 GB (max) |
| Technology: | DDR4 SDRAM - non-ECC |
| Effective Memory Speed: | 2400 MHz |
| Rated Memory Speed: | 2400 MHz |
| Memory Specification Compliance: | PC4-19200 |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 1 (Total) / 0 (empty) |
| Configuration Features: | 1 x 4 GB |
| Hard Drive | |
| Type: | Flash - M.2 |
| Capacity: | 1 x 32 GB |
| Features: | eMMC |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | AMD Radeon Vega 3 |
| Video Interfaces: | DisplayPort |
| Max Monitors Supported: | 2 |
| Input Device | |
| Type: | Mouse, keyboard |
| Keyboard | |
| Keyboard Name: | HP USB Business Slim Keyboard |
| Interface: | USB |
| Localization & Layout: | Danish |
| Mouse | |
| Technology: | Optical |
| Interface: | USB |
| Networking | |
| Ethernet Controller: | Realtek RTL8111HSH |
| Wireless LAN Supported: | Yes |
| Wireless NIC: | Realtek RTL8852AE |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Features: | Dual stream (2x2) |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Slots: | 1 (total) / 0 (free) x M.2 Card |
| Interfaces: | 1 x USB 3.1 Gen 1 (1 in front) ¦ 1 x USB-C 3.1 Gen 1 (1 in front) ¦ Headphones/microphone (1 in front) ¦ 2 x DisplayPort 1.2 ¦ 2 x USB 3.1 Gen 2 ¦ 2 x USB 2.0 (2 rear) ¦ 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Included Accessories: | HP 45 Watt Smart AC Adapter |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | UL, VCCI, BSMI, GS, CB, CCC, FCC, KCC, WEEE, CISPR, ICES, ERP, CECP, RoHS2, SEPA, low halogen, EN |
| Power | |
| Device Type: | Power adapter |
| Power Device Name: | HP Smart AC Adapter |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 45 Watt |
| Operating System / Software | |
| OS Provided: | HP ThinPro |
| Software: | Microsoft Internet Explorer, Citrix ICA, Microsoft RDP, Microsoft Windows Media Player, HP Device Manager, LogOn Manager, Windows Defender, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP ThinUpdate, HP Easy Shell, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Write Manager, Microsoft Bitlocker Encryption, Microsoft Unified Write Filter |
| Sustainability Information | |
| TCO Certified: | TCO Certified Desktops 9 |
| ENERGY STAR Certified: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 3 years |
| Dimensions & Weight | |
| Width: | 3.5 cm |
| Depth: | 20 cm |
| Height: | 20 cm |
| Weight: | 969 g |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 2.879 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
Transition your fleet to the cloud with the HP t540 thin client. Support your computing needs with versatile configurations and component-level security.
- Designed for your organization's computing needs
- Neutralize threats and keep data safe and secure
- High performance
- Dual UHD/4K display support
The technical details come from 3rd party. edgemo is not responsible for any errors.
