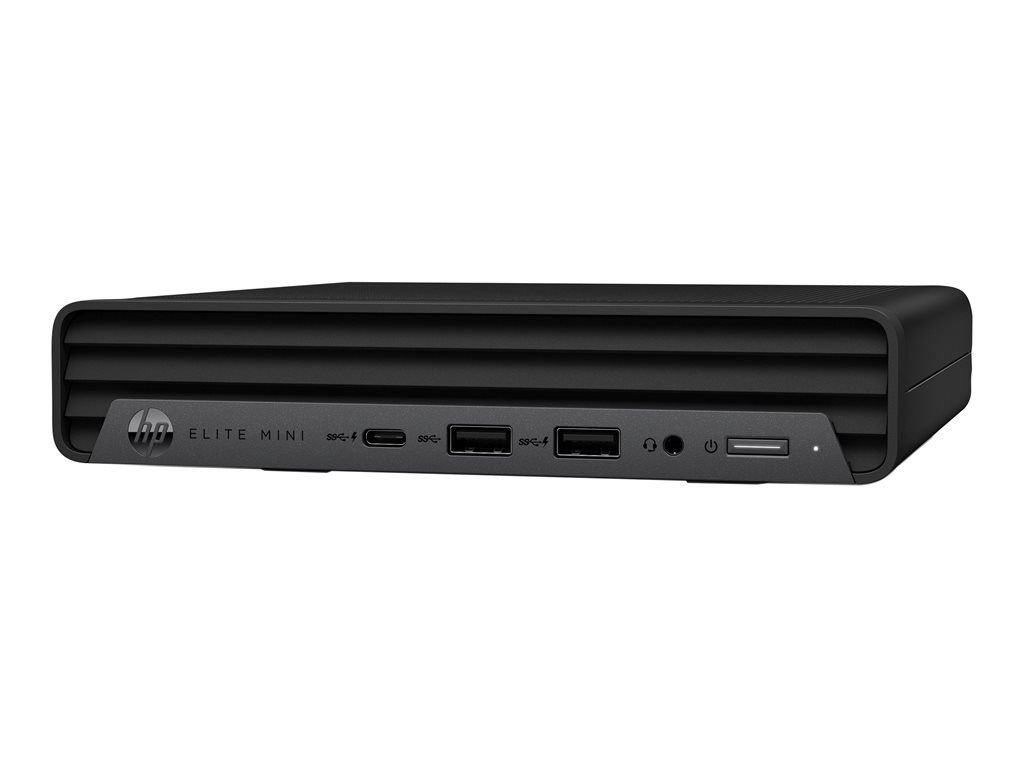

Printers & POSHP Mini Conference G9 - mini desktop Core i7 12700T 1.4 GHz - vPro - 16 GB - SSD 256 GB - with Microsoft Team Rooms
SKU 9C428AW#ABB
| Product Description: | HP Mini Conference G9 - mini desktop Core i7 12700T 1.4 GHz - vPro - 16 GB - SSD 256 GB - with Microsoft Team Rooms |
| Type: | Personal computer - mini desktop |
| Platform Technology: | Intel vPro Platform |
| Localisation: | Language: English / region: Europe |
| Processor: | Intel Core i7 (12th Gen) 12700T / 1.4 GHz (up to 4.7 GHz, (12-core) |
| Processor Main Features: | Intel Turbo Boost Technology |
| Cache Memory: | 25 MB L3 Cache |
- Specifications
- Description
| General | |
| Platform Technology: | Intel vPro Platform |
| Type: | Personal computer |
| Product Form Factor: | Mini desktop |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation: | Language: English / region: Europe |
| Bundled with: | Microsoft Team Rooms |
| Processor / Chipset | |
| CPU: | Intel Core i7 (12th Gen) 12700T |
| Clock Speed: | 1.4 GHz (P-core) / 1 GHz (E-core) |
| Max Turbo Speed: | 4.7 GHz (P-core) / 3.4 GHz (E-core) |
| Number of Cores: | 12-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| L2 cache: | 12 MB |
| Processor Main Features: | Intel Turbo Boost Technology |
| Chipset Type: | Intel Q670 |
| Cache Memory | |
| Installed Size: | L3 Cache - 25 MB |
| Cache Per Processor: | 25 MB |
| RAM | |
| Installed Size: | 16 GB (installed) / 16 GB (max) |
| Technology: | DDR5 SDRAM |
| Effective Memory Speed: | 4800 MHz |
| Rated Memory Speed: | 4800 MHz |
| Form Factor: | SO-DIMM 262-pin |
| Slots: | 2 (Total) / 0 (empty) |
| Configuration Features: | 2 x 8 GB |
| Hard Drive | |
| Type: | SSD - M.2 2280 |
| Capacity: | 1 x 256 GB |
| Interface Type: | PCI Express |
| Features: | NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics 770 |
| Video Interfaces: | HDMI, DisplayPort |
| HDCP Compatible: | Yes |
| Audio Output | |
| Sound Output Mode: | Stereo |
| Max Sampling Rate: | 192 kHz |
| Compliant Standards: | High Definition Audio |
| Input Device | |
| Type: | No keyboard, no mouse |
| Networking | |
| Interface (Bus) Type: | PCI Express Mini Card (M.2) |
| Ethernet Controller: | Intel I219-LM |
| Wireless LAN Supported: | Yes |
| Wireless NIC: | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Remote Management Protocol: | SNMP 2 |
| Features: | Wake on LAN (WoL), auto-uplink (auto MDI/MDI-X), MU-MIMO Support, PXE 2.1 support, dual stream (2x2) |
| Compliant Standards: | Wi-Fi CERTIFIED |
| Expansion / Connectivity | |
| Slots: | 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (for internal storage) |
| Interfaces: | 1 x USB-C 3.2 Gen 2x2 (charging) ¦ 5 x USB 3.2 Gen 2 (2 front, 3 rear) (two of them with wake functionality, one of them is charging) ¦ 1 x headphones/microphone (CTIA and OMTP headset support) ¦ 2 x DisplayPort 1.4a ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1 |
| Power | |
| Device Type: | Power adapter |
| Power Device Name: | HP Smart AC Adapter |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 90 Watt |
| Efficiency: | 89% |
| Power Factor Correction: | Yes (active) |
| Operating System / Software | |
| OS Provided: | Windows 10 IoT Enterprise English |
| Software: | HP Image Assistant, HP Manageability & Integration Kit, HP Sure Start Gen7 |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| Dimensions & Weight | |
| Width: | 17.7 cm |
| Depth: | 17.5 cm |
| Height: | 3.4 cm |
| Weight: | 1.42 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 49.8 cm |
| Shipping Depth: | 13.2 cm |
| Shipping Height: | 23.5 cm |
| Shipping Weight: | 2.95 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
Empower your teams with rich, immersive collaborative experiences across town and around the world in an instant. Powered by an advanced processor, the HP Presence Mini Conferencing PC with Zoom Rooms is designed to work with your existing audiovisual infrastructure, including touch-control panels and up to three displays.
- Easy to deploy
- Strong security
- Customize your setup
The technical details come from 3rd party. edgemo is not responsible for any errors.
