HP Elite t755 - SFF Ryzen Embedded V2546 3 GHz - 8 GB - SSD 256 GB - Danish

SKU 5H0Z1EA#ABY

Product Description:	HP Elite t755 - SFF Ryzen Embedded V2546 3 GHz - 8 GB - SSD 256 GB - Danish
Type:	Thin client - SFF
Localisation:	Language: Danish / region: Denmark
Processor:	1 x AMD Ryzen Embedded V2546 / 3 GHz (up to 3.95 GHz, (6-core)
Processor Main Features:	AMD Memory Guard
Cache Memory:	8 MB L3 Cache
Cache Per Processor:	8 MB

20-01-2025

Specifications
Description
Accessories

General
Type:	Thin client
Product Form Factor:	SFF
Built-in Devices:	Speaker
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Localisation:	Language: Danish / region: Denmark

Processor / Chipset
CPU:	AMD Ryzen Embedded V2546
Clock Speed:	3 GHz
Max Turbo Speed:	3.95 GHz
Number of Cores:	6-core
CPU Qty:	1
Max CPU Qty:	1
L2 cache:	3 MB
CPU Upgradability:	Not upgradable
Processor Main Features:	AMD Memory Guard

Cache Memory
Installed Size:	L3 Cache - 8 MB
Cache Per Processor:	8 MB

RAM
Installed Size:	8 GB (installed) / 32 GB (max)
Technology:	DDR4 SDRAM - non-ECC
Effective Memory Speed:	3200 MHz
Rated Memory Speed:	3200 MHz
Form Factor:	SO-DIMM 260-pin
Slots:	2 (Total) / 0 (empty)
Features:	Dual channel memory architecture
Configuration Features:	2 x 4 GB

Hard Drive
Type:	SSD - M.2
Capacity:	1 x 256 GB
Interface Type:	PCI Express
Features:	NVM Express (NVMe)

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Multi-GPU Configuration:	1 single GPU card / integrated GPU
Graphics Processor:	AMD Radeon RX 6300 / AMD Radeon Graphics
Video Memory:	2 GB GDDR6 SDRAM
Video Interfaces:	DisplayPort
Max Monitors Supported:	6

Input Device
Type:	Keyboard, mouse

Keyboard
Keyboard Name:	HP 320K
Interface:	USB
Localization & Layout:	Danish

Mouse
Mouse Name:	HP 320M
Interface:	USB

Networking
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity
Slots:	2 (total) / 1 (free) x M.2 Card (for internal storage) ¦ 1 (total) / 1 (free) x PCIe x16 - half-height (x8 mode)
Interfaces:	2 x USB 3.1 Gen 1 (2 front) ¦ 1 x USB-C 3.2 Gen 2 (1 front) ¦ 1 x audio line-out/line-in - mini-jack (1 front) ¦ 4 x DisplayPort 1.2 (4 rear) ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ 2 x USB 2.0 - Type A (2 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear)

Miscellaneous
Theft/Intrusion Protection:	Security lock slot (cable lock sold separately)
Security Slot Type:	Kensington security slot
VESA Mounting Interface:	VESA, 100 x 100 mm
Compliant Standards:	RoHS2, Energy-Related Products (ErP) Lot 3, CECP, SEPA, HP GSE, WEEE, low halogen, UL, CB, GS, CCC, BSMI, FCC Class B certified, CISPR Class B, EN, VCCI Class B, ICES Class B, AS/NZS, CNS, KCC Class B, EN60601-1-2, FIPS 140-2

Power
Device Type:	Power adapter
Power Device Name:	HP Smart AC Adapter
Voltage Required:	AC 100-240 V (50/60 Hz)
Power Provided:	90 Watt

Operating System / Software
OS Provided:	HP ThinPro
Software:	HP ThinUpdate, HP Smart Zero Client Services, HP Write Manager, HP Device Manager, HP Easy Update, Mozilla Firefox

Sustainability Information
ENERGY STAR Certified:	Yes

Manufacturer Warranty
Service & Support:	Limited warranty - parts and labour - 1 year

Dimensions & Weight
Width:	5 cm
Depth:	21 cm
Height:	21 cm
Weight:	1.4 kg

Dimensions & Weight (Shipping)
Shipping Weight:	3.798 kg

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	40 °C
Humidity Range Operating:	10 - 90% (non-condensing)

vis mere

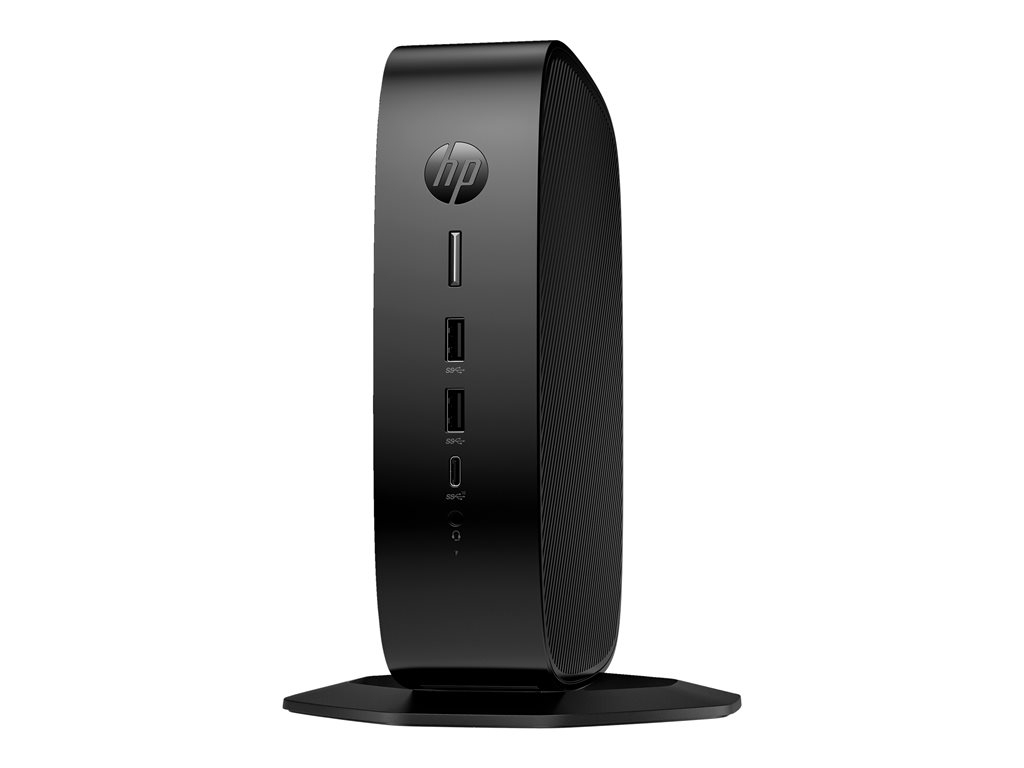

The HP Elite t755 redefines efficiency and productivity in a compact package. Designed to meet the demands of modern workspaces, it combines a small form factor with the power of a 6-core AMD Ryzen Embedded processor, ensuring that space constraints do not compromise performance. With 8 MB of L3 cache and speeds up to 3.95 GHz, it effortlessly handles multitasking and demanding applications.
Connectivity is a breeze with its array of ports, including USB 3.1 Gen 1, USB-C 3.2 Gen 2, and DisplayPort 1.2, making it easy to connect all your peripherals without the need for additional adapters. Security is paramount, and with the Trusted Platform Module (TPM 2.0), your data remains secure, providing peace of mind in a world of ever-evolving threats.
Not only is the HP Elite t755 powerful and secure, but it is also designed with the environment in mind. Its ENERGY STAR certification and EPEAT compliance ensure that your computing is both efficient and environmentally friendly, reducing your carbon footprint while maintaining high performance. Whether for business or personal use, the HP Elite t755 is a smart choice for those who value efficiency, security, and sustainability.

Small form factor for optimal space management
6-core AMD Ryzen Embedded processor for high-performance computing
Multiple connectivity options with USB 3.1, USB-C 3.2, and DisplayPort
Trusted Platform Module (TPM 2.0) for enhanced data security
ENERGY STAR certified and EPEAT compliant for energy efficiency
