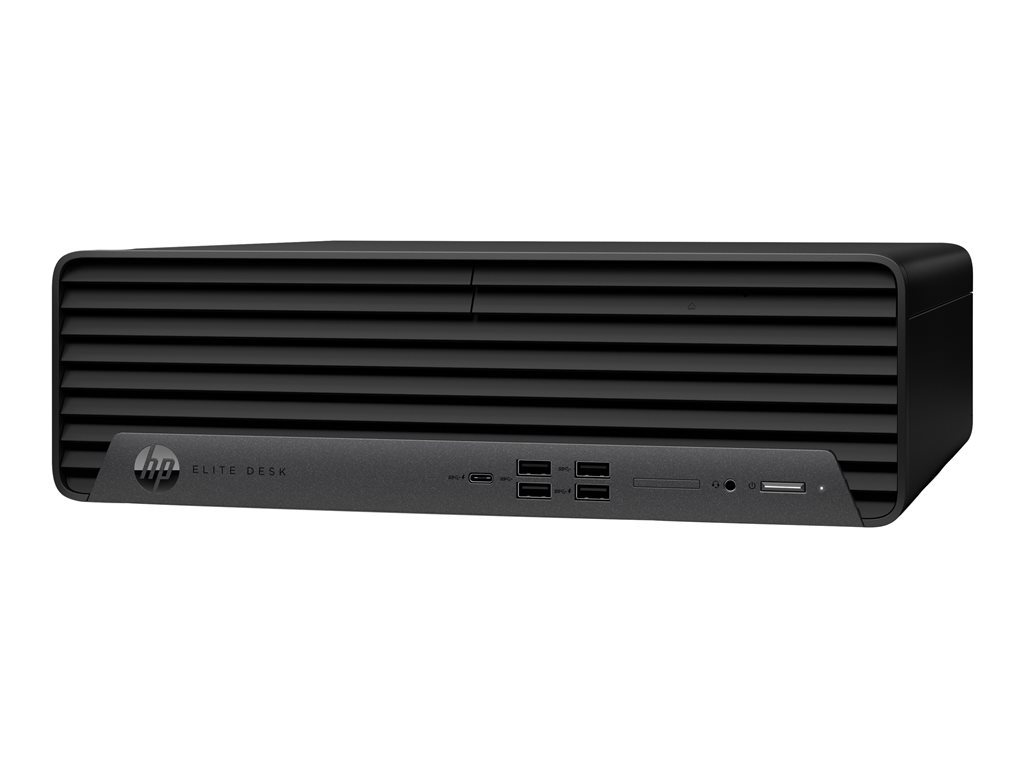

HP Elite 800 G9 - SFF - Core i5 12500 - vPro - 16 GB - SSD 256 GB
SKU 5V8C6EA#UUW
Product Description: | HP Elite 800 G9 - SFF - Core i5 12500 - vPro - 16 GB - SSD 256 GB |
Type: | Personal computer - small form factor |
Bundled Services: | HP 3 years Onsite Desktop Bundle Hardware Support |
Platform Technology: | Intel vPro Platform |
Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
Processor: | Intel Core i5 (12th Gen) 12500 (up to 4.6 GHz, (6-core) |
Processor Main Features: | Intel Turbo Boost Technology |
- Specifications
- Description
General | |
Platform Technology: | Intel vPro Platform |
Type: | Personal computer |
Bundled Services: | HP 3 years Onsite Desktop Bundle Hardware Support |
Product Form Factor: | Small form factor |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Localisation: | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
Processor / Chipset | |
CPU: | Intel Core i5 (12th Gen) 12500 |
Max Turbo Speed: | 4.6 GHz |
Number of Cores: | 6-core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
CPU Upgradability: | Upgradable |
Processor Main Features: | Intel Turbo Boost Technology |
Chipset Type: | Intel Q670 |
Cache Memory | |
Installed Size: | L3 Cache - 18 MB |
Cache Per Processor: | 18 MB |
RAM | |
Installed Size: | 16 GB / 128 GB (max) |
Technology: | DDR5 SDRAM |
Effective Memory Speed: | 4800 MHz |
Rated Memory Speed: | 4800 MHz |
Slots: | 4 (Total) / 2 (empty) |
Configuration Features: | 2 x 8 GB |
Hard Drive | |
Type: | SSD - M.2 2280 |
Capacity: | 1 x 256 GB |
Interface Type: | PCI Express 3.0 |
Features: | NVM Express (NVMe), HP Value |
Storage Controller | |
Type: | 1 x SATA/NVMe |
Controller Interface Type: | SATA-600 / NVMe |
Channel Qty: | 4 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Graphics Processor: | Intel UHD Graphics 770 Dynamic Video Memory Technology |
Video Interfaces: | HDMI, DisplayPort |
HDCP Compatible: | Yes |
Audio Output | |
Sound Output Mode: | Stereo |
Max Sampling Rate: | 192 kHz |
Compliant Standards: | High Definition Audio |
Input Device | |
Type: | No keyboard, no mouse |
Networking | |
Ethernet Controller: | Intel I219-LM |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | SNMP 2 |
Features: | Wake on LAN (WoL), ACPI support, PXE 2.1 support |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
Expansion / Connectivity | |
Bays: | 2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line |
Slots: | 1 (total) / 1 (free) x M.2 Card - 2230 ¦ 2 (total) / 1 (free) x M.2 Card - 2280 (x4 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x1 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 |
Interfaces: | 3 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 (one of them is fast-charging) ¦ 4 x USB 3.2 Gen 2 (4 in front) ¦ 1 x USB-C 3.2 Gen 2x2 ¦ 2 x DisplayPort 1.4a ¦ 1 x headphones/microphone (1 in front) (CTIA headset support) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x LAN ¦ 1 x HDMI |
Miscellaneous | |
Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), padlock loop |
Security Slot Type: | Kensington security slot |
Compliant Standards: | FCC Class B certified, ICES-003, CCC, FIPS 140-2 Level 2, RoHS, UL 60950-1, CSA C22.2 No. 60950-1-07, WEEE, KCC Class B, Common Criteria EAL4+, CECP, VCCI Class B, SEPA, low halogen, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, IEEE 1680.1 |
Power | |
Device Type: | Power supply |
Voltage Required: | AC 90-264 V (50/60 Hz) |
Power Provided: | 260 Watt |
80 PLUS Certification: | 80 PLUS Platinum |
Efficiency: | 89% (115VAC), 90% (230 VAC) |
Power Factor Correction: | Yes (active) |
Operating System / Software | |
OS Provided: | Windows 10 Pro 64-bit Edition (available through downgrade rights from Windows 11 Pro) + Windows 11 Pro Licence - Danish / English / Finnish / Norwegian / Swedish |
Software: | HP Support Assistant, HP PC Hardware Diagnostics UEFI, Microsoft 365 (Trial), HP Secure Erase, HP Setup Integrated OOBE, HP Notifications, HP Connection Optimizer, HP Sure Click, HP Privacy Settings, HP Cloud Recovery, HP Sure Sense, HP Sure Admin, HP QuickDrop, HP BIOSphere Gen6, HP DriveLock, myHP, HP Desktop Support Utilities, HP Client Security Manager Gen7, HP SureStart Gen7, HP Touchpoint Customizer, HP Easy Clean, HP Connect for Microsoft Endpoint Manager, HP SureRun Gen5, HP Sure Recover Gen5, HP Wolf Security for Business |
Sustainability Information | |
ENERGY STAR Certified: | Yes |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 1 year - on-site |
Dimensions & Weight | |
Width: | 33.8 cm |
Depth: | 30.8 cm |
Height: | 10 cm |
Weight: | 5.04 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 39.9 cm |
Shipping Depth: | 49.9 cm |
Shipping Height: | 23 cm |
Shipping Weight: | 7.72 kg |
Environmental Parameters | |
Min Operating Temperature: | 5 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 5 - 90% |
The HP Elite 800 Tower PC delivers the high performance that advanced users need, with support for complex programs and rendering, as well as demanding graphics content. Featuring an Intel processor and fast memory and storage, this computer is perfect for your demanding tasks.
- Stunning performance
- Connection of multiple displays
