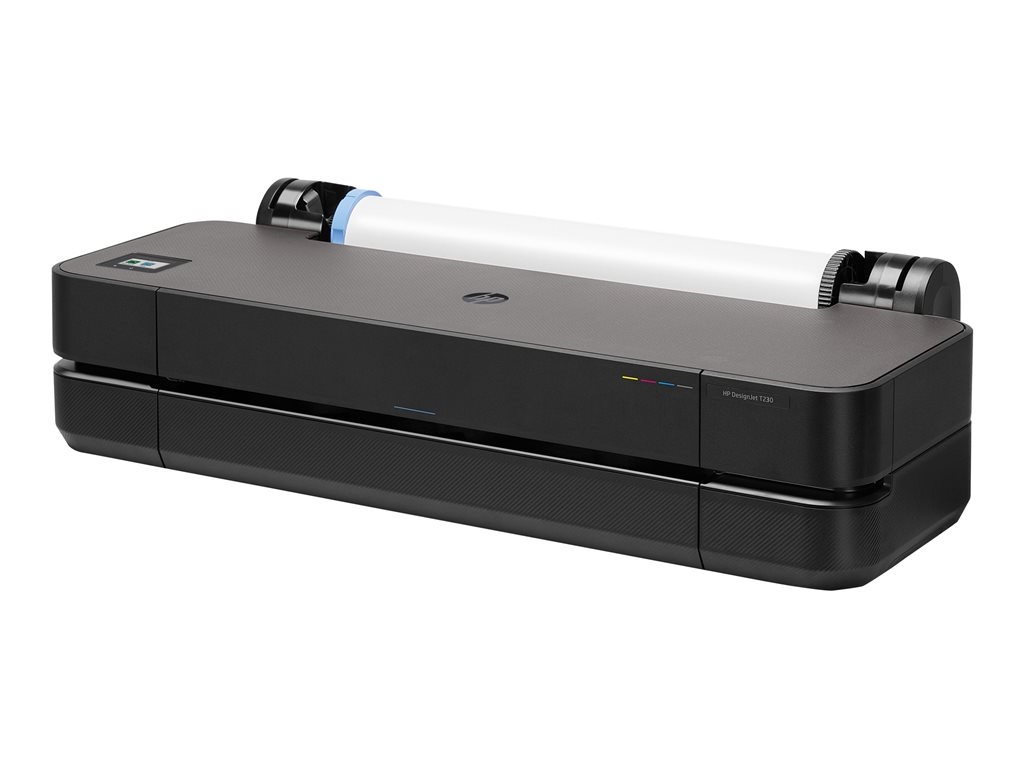

Printers & POSHP DesignJet T230 - large-format printer - colour - ink-jet
SKU 5HB07A#B19
| Product Description: | HP DesignJet T230 - large-format printer - colour - ink-jet |
| Printer Type: | 24" large-format printer - ink-jet - colour |
| Weight: | 21.5 kg |
| Localisation: | English, German, French, Italian, Spanish / Europe |
| Inkjet Technology: | HP Thermal Inkjet |
| Ink Palette Supported (Colours): | 4-ink - cyan, magenta, yellow, pigment black |
| Max Media Size: | A1 (594 x 841 mm), ANSI D (559 x 864 mm) |
- Specifications
- Description
| General | |
| Printer Type: | 24" large-format printer - ink-jet - colour |
| Localisation: | English, German, French, Italian, Spanish / Europe |
| Printer | |
| Inkjet Technology: | HP Thermal Inkjet |
| Ink Palette Supported (Colours): | 4-ink - cyan, magenta, yellow, pigment black |
| Nozzle Configuration: | 1376 nozzles |
| Minimum Ink Droplet Size: | 12 pl (black), 5.5 pl (colour) |
| Ink Cartridge Configuration: | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
| Print Speed: | Up to 0.58 min/page - black draft - ANSI D (559 x 864 mm) ¦ Up to 0.58 min/page - colour draft - ANSI D (559 x 864 mm) ¦ Up to 0.58 min/page - black draft - A1 (594 x 841 mm) ¦ Up to 0.58 min/page - colour draft - A1 (594 x 841 mm) |
| Connectivity Technology: | Wireless |
| Interface: | USB 2.0, LAN, Wi-Fi |
| Max Resolution (B&W): | 2400 x 1200 dpi |
| Max Resolution (Colour): | 2400 x 1200 dpi |
| Language Simulation: | URF, JPEG |
| Printer Features: | Print from mobile device, 4.1 kg max roll weight |
| RAM | |
| RAM Installed (Max): | 512 MB / 512 MB (max) |
| Media Handling | |
| Media Type: | Plain paper, photo paper, bond paper, film, glossy paper, semi-gloss paper, technical paper, self-adhesive paper |
| Max Media Size: | A1 (594 x 841 mm), ANSI D (559 x 864 mm) |
| Min Media Size (Custom): | 210 mm x 279 mm |
| Max Media Size (Custom): | 610 mm x 45.7 m |
| Media Sizes: | ANSI A (Letter) (216 x 279 mm), A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), ANSI B (Ledger) (279 x 432 mm), ANSI C (432 x 559 mm), ANSI D (559 x 864 mm) |
| Media Thickness Range: | Up to 0.3 mm |
| Media Weight: | 60 g/m² - 280 g/m² |
| Networking | |
| Networking: | Print server |
| Expansion / Connectivity | |
| Connections: | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
| Miscellaneous | |
| Compliant Standards: | EMC, WEEE, REACH, ERP, EU RoHS, RED, EAEU RoHS |
| Power | |
| Power Device: | Power supply - internal |
| Frequency Required: | 50/60 Hz |
| Power Consumption Operational: | 35 Watt |
| Power Consumption Stand by: | 0.2 Watt |
| Power Consumption Sleep: | 2.1 Watt |
| Software / System Requirements | |
| Software Included: | HP Support Assistant, HP Click, HP DesignJet Utility |
| Environmental Standards | |
| EPEAT Compliant: | EPEAT Gold |
| ENERGY STAR: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% |
| Sound Emission (Idle): | 16 dBA |
| Sound Emission (Operating): | 42 dBA |
| Dimensions & Weight | |
| Width: | 101.3 cm |
| Depth: | 44 cm |
| Height: | 28.5 cm |
| Weight: | 21.5 kg |
| Dimensions & Weight (Shipping) | |
| Width (Shipping): | 115.5 cm |
| Depth (Shipping): | 57.5 cm |
| Height (Shipping): | 40.5 cm |
| Weight (Shipping): | 28 kg |
Save time, money and plenty of office space with an easy-to-use and compact plotter that delivers high-quality prints every time.
- Avoid waiting by the printer with high-speed printing
- Be more productive - save time from job prep to final print by printing your projects up to two times faster
- Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app
- Get high-quality results - HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut
The technical details come from 3rd party. edgemo is not responsible for any errors.
