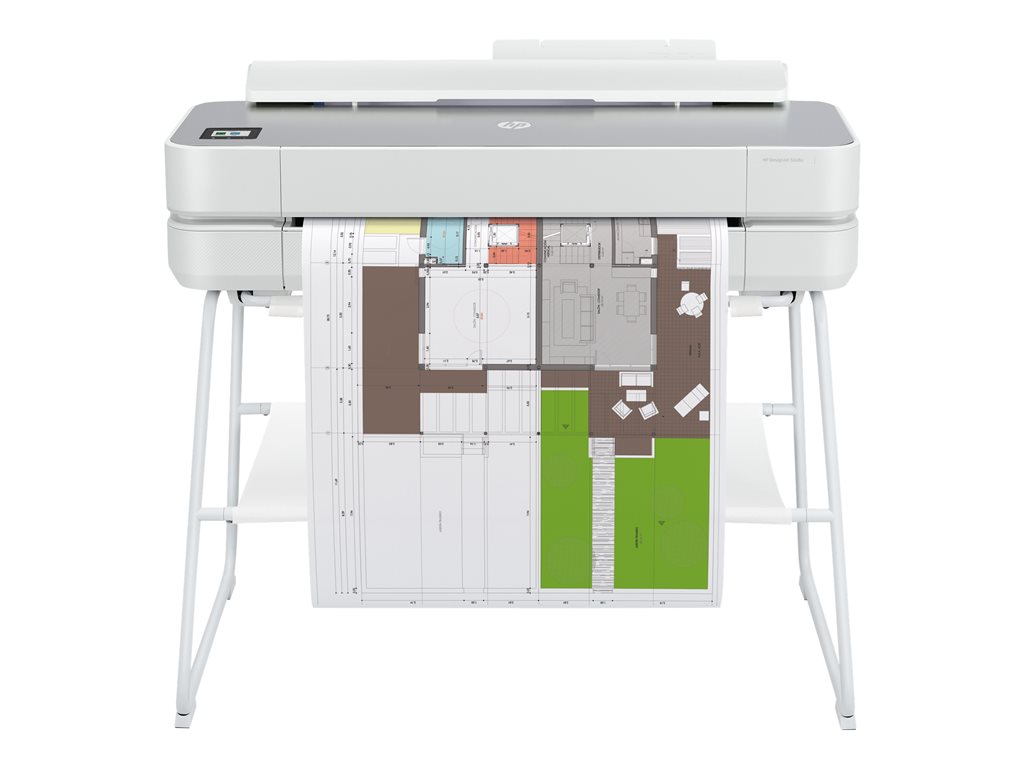

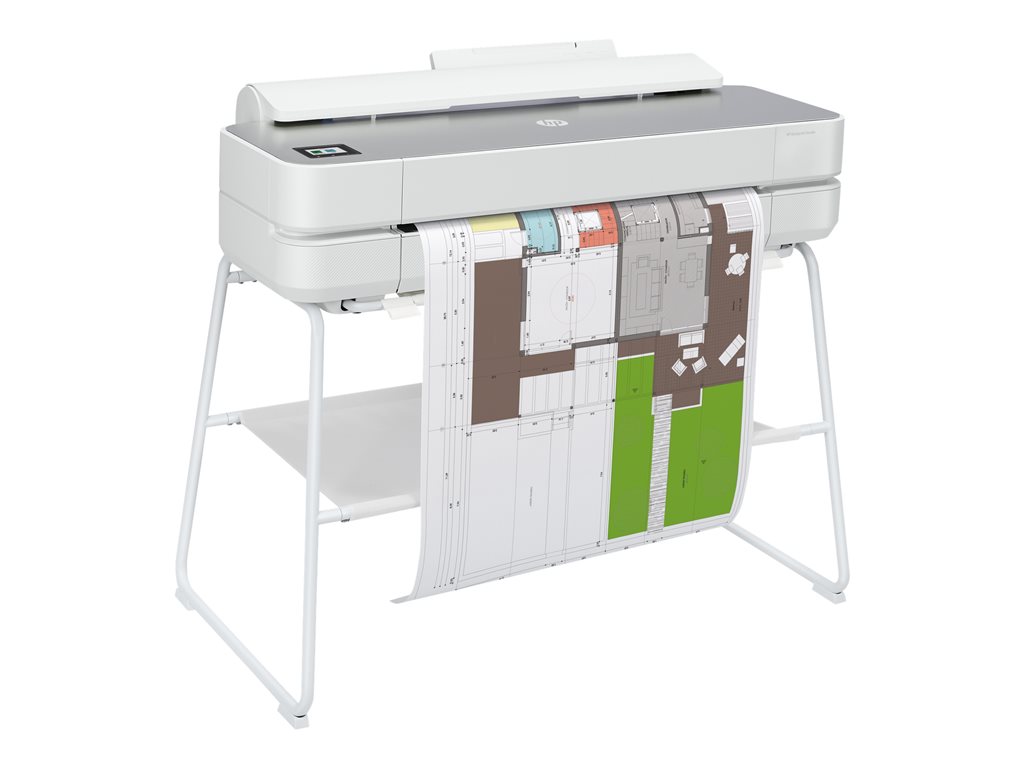

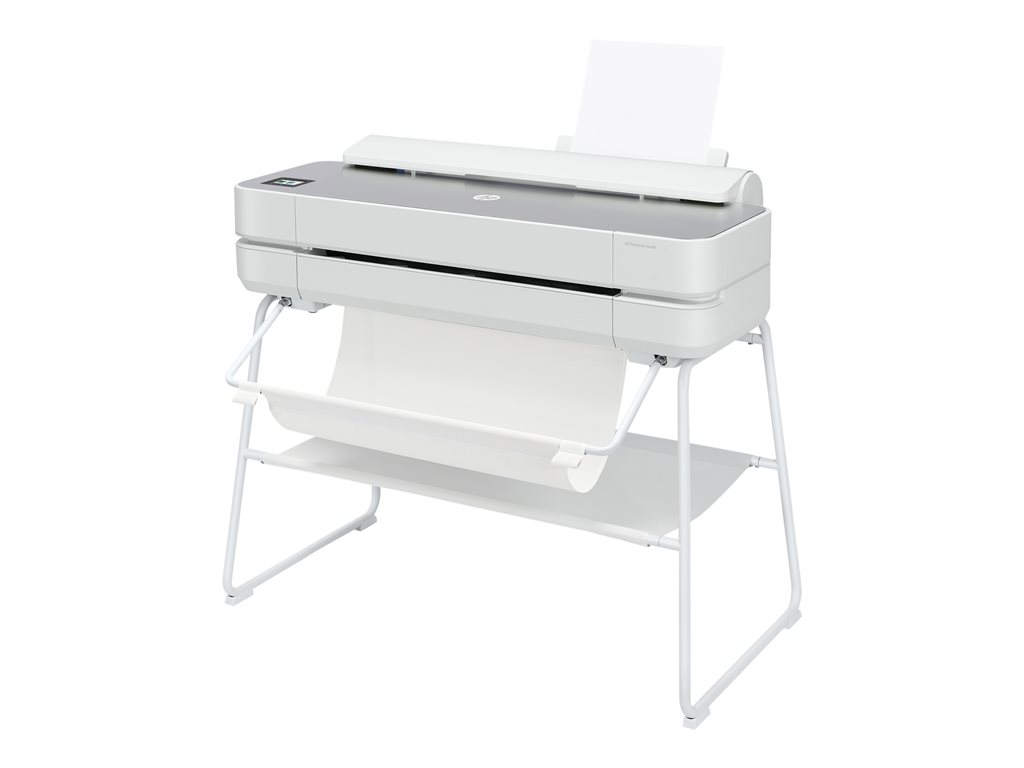

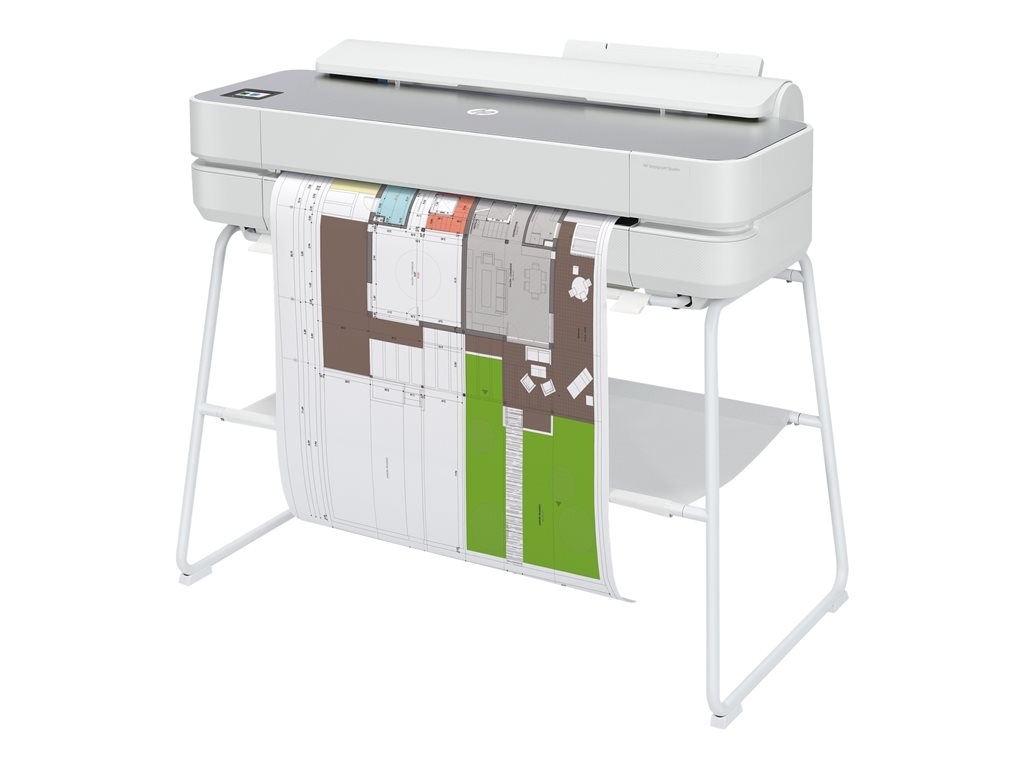

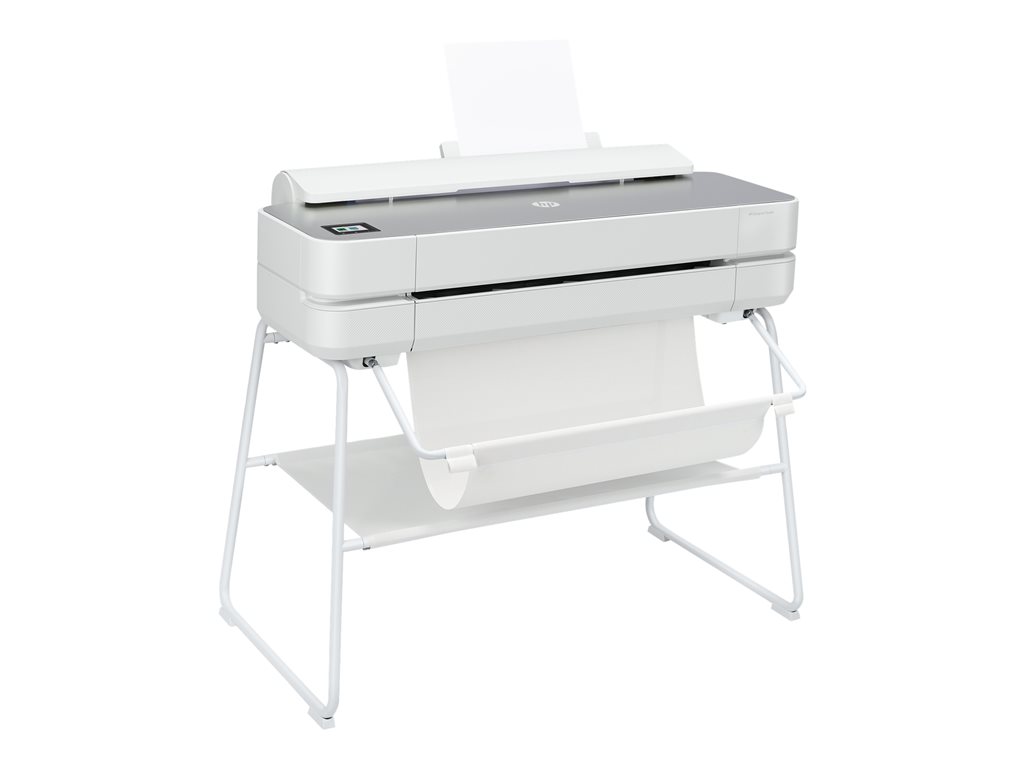

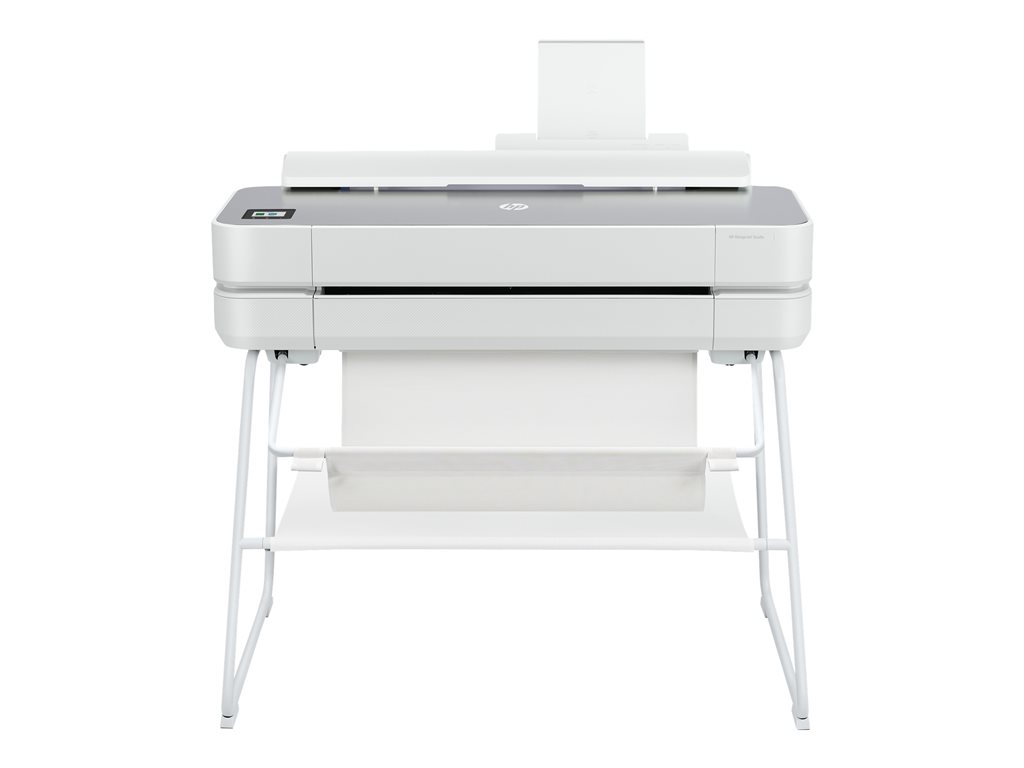

HP DesignJet Studio - Steel Edition - large-format printer - colour - ink-jet

SKU 5HB12C#B19
Product Description:HP DesignJet Studio - Steel Edition - large-format printer - colour - ink-jet
Printer Type:24" large-format printer - ink-jet - colour
Weight:33.6 kg
Localisation:English, French, Spanish, German, Italian / Europe
Inkjet Technology:HP Thermal Inkjet
Ink Palette Supported (Colours):4-ink - cyan, magenta, yellow, pigment black
Max Media Size:279 x 610 mm, Roll (61 cm x 45.7 m)
13-03-2025
Login for price
  • Specifications
  • Description
  • Accessories
General
Printer Type:24" large-format printer - ink-jet - colour
Localisation:English, French, Spanish, German, Italian / Europe
Printer
Inkjet Technology:HP Thermal Inkjet
Ink Palette Supported (Colours):4-ink - cyan, magenta, yellow, pigment black
Nozzle Configuration:1376 nozzles
Minimum Ink Droplet Size:12 pl (black), 5.5 pl (colour)
Ink Cartridge Configuration:4 cartridges (1 each: cyan, magenta, yellow, pigment black)
Print Speed:Up to 0.43 min/page - black draft ¦ Up to 0.43 min/page - colour draft ¦ Up to 0.43 min/page - black draft ¦ Up to 0.43 min/page - colour draft
Connectivity Technology:Wireless
Interface:USB 2.0, LAN, Wi-Fi
Max Resolution (B&W):2400 x 1200 dpi
Max Resolution (Colour):2400 x 1200 dpi
Language Simulation:HP GL/2, HP RTL, CALS G4, JPEG, URF
Printer Features:Print from mobile device
RAM
RAM Installed (Max):1 GB / 1 GB (max)
Media Handling
Media Type:Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper
Max Media Size:279 x 610 mm, Roll (61 cm x 45.7 m)
Min Media Size (Custom):210 mm x 279 mm
Max Media Size (Custom):610 mm x 45.7 m
Media Sizes:A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), ANSI A (Letter) (216 x 279 mm), ANSI B (Ledger) (279 x 432 mm), ANSI C (432 x 559 mm), Roll (91.4 cm x 45.7 m)
Media Thickness Range:Up to 0.3 mm
Networking
Networking:Print server
Expansion / Connectivity
Connections:1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45
Miscellaneous
Compliant Standards:EMC Class B, RED, EU RoHS, EAEU RoHS, REACH, ERP, LVD, EN 60950-1, EN 62368-1, EAC
Power
Power Device:Power supply - internal
Frequency Required:50/60 Hz
Power Consumption Operational:35 Watt
Power Consumption Stand by:0.2 Watt
Power Consumption Sleep:2.1 Watt
Software / System Requirements
Software Included:HP Click, HP DesignJet Utility, HP Support Assistant
Environmental Standards
ENERGY STAR:Yes
Manufacturer Warranty
Service & Support:Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:5 °C
Max Operating Temperature:40 °C
Humidity Range Operating:20 - 80%
Sound Emission (Idle):16 dBA
Sound Emission (Operating):42 dBA
Dimensions & Weight
Width:101.3 cm
Depth:55.5 cm
Height:93.2 cm
Weight:33.6 kg
Dimensions & Weight (Shipping)
Width (Shipping):119.9 cm
Depth (Shipping):59 cm
Height (Shipping):52.4 cm
Weight (Shipping):43 kg
vis mere
  • Design that performs, technology that stands out
  • Easily set up your plotter using your smartphone
  • First net carbon neutral HP DesignJet plotter
  • Print multi-size A3/B and A0/E projects automatically, without manually switching the media source
  • Save time with the world's easiest job submission - send multiple files in one click with HP Click software
  • Print with confidence you'll get the results you expect with an intuitive driver and true print preview
  • Avoid waiting by the printer with high-speed printing as fast as 25 seconds per A1/D plot
  • Be more productive - save time from job prep to final print by printing your projects up to 2x faster
  • Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app
  • Get high-quality results - HP Bright Office Inks plot up to 31% more-line accuracy and up to 65% more gamut




The technical details come from 3rd party. edgemo is not responsible for any errors.
