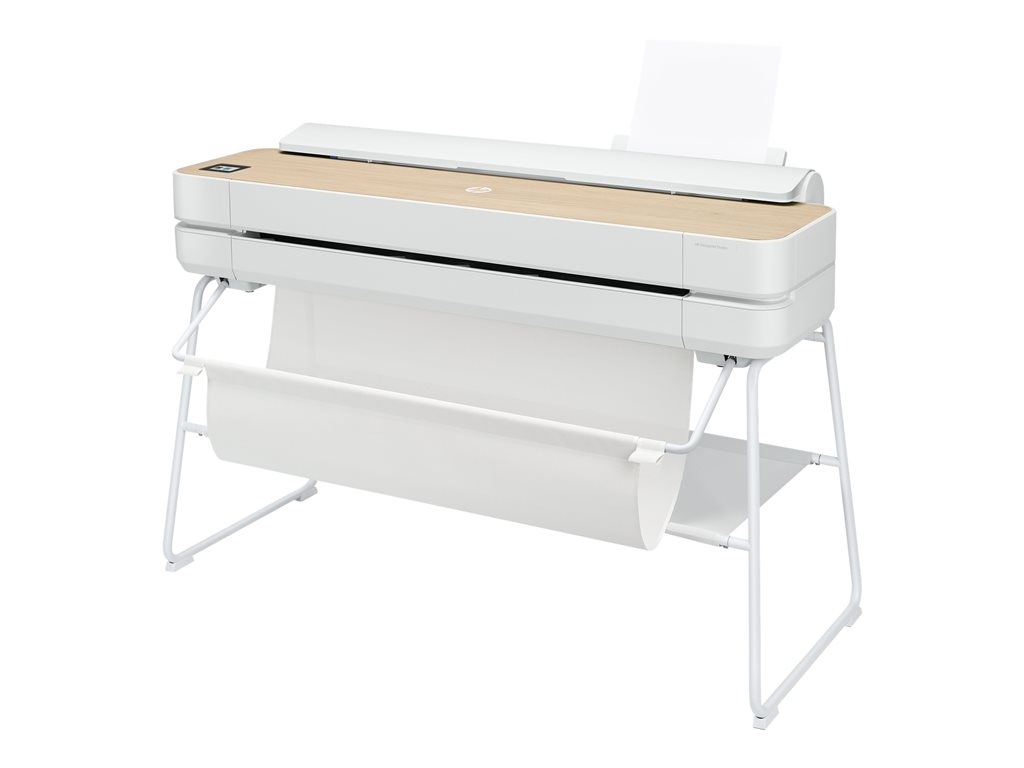

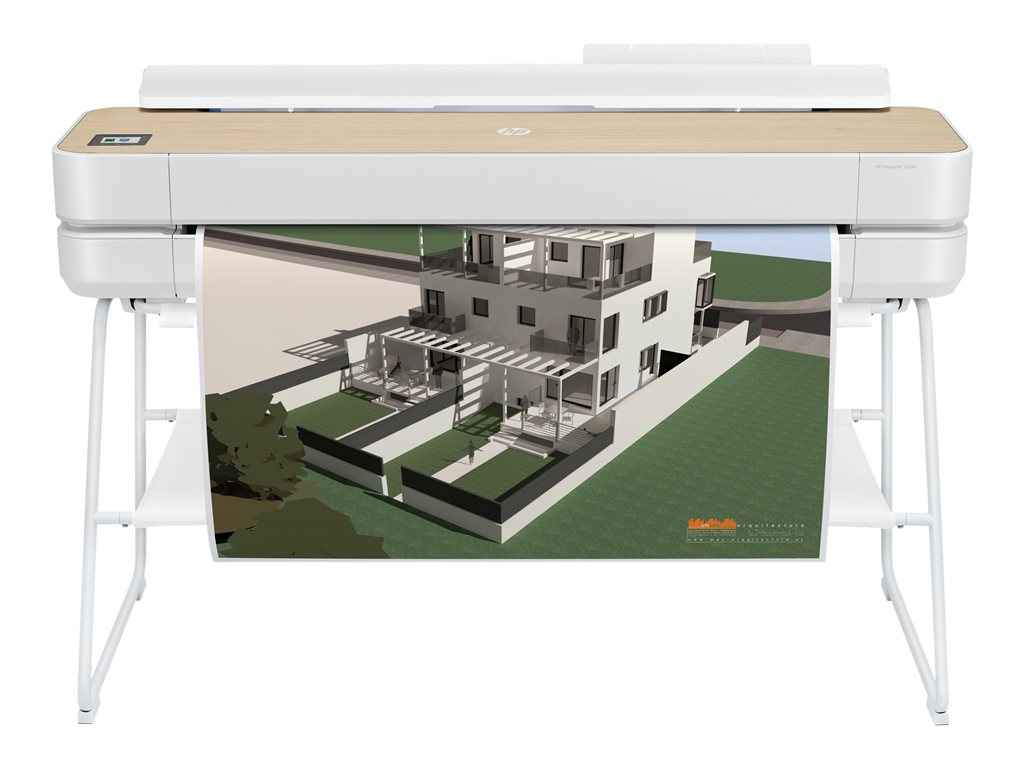

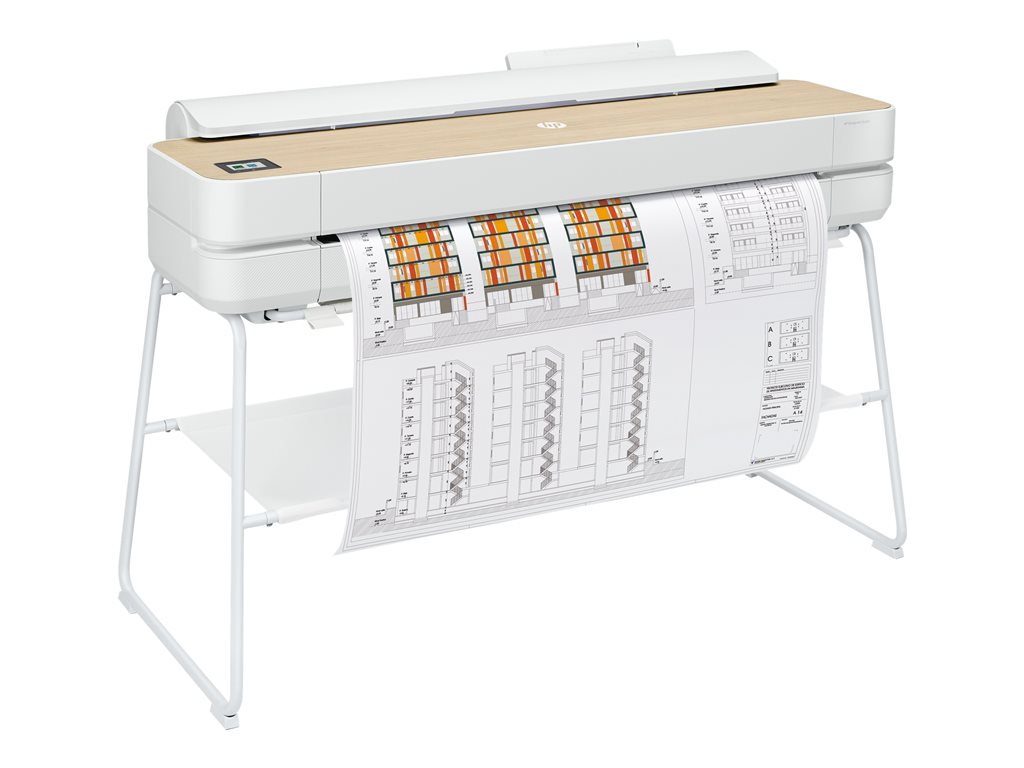

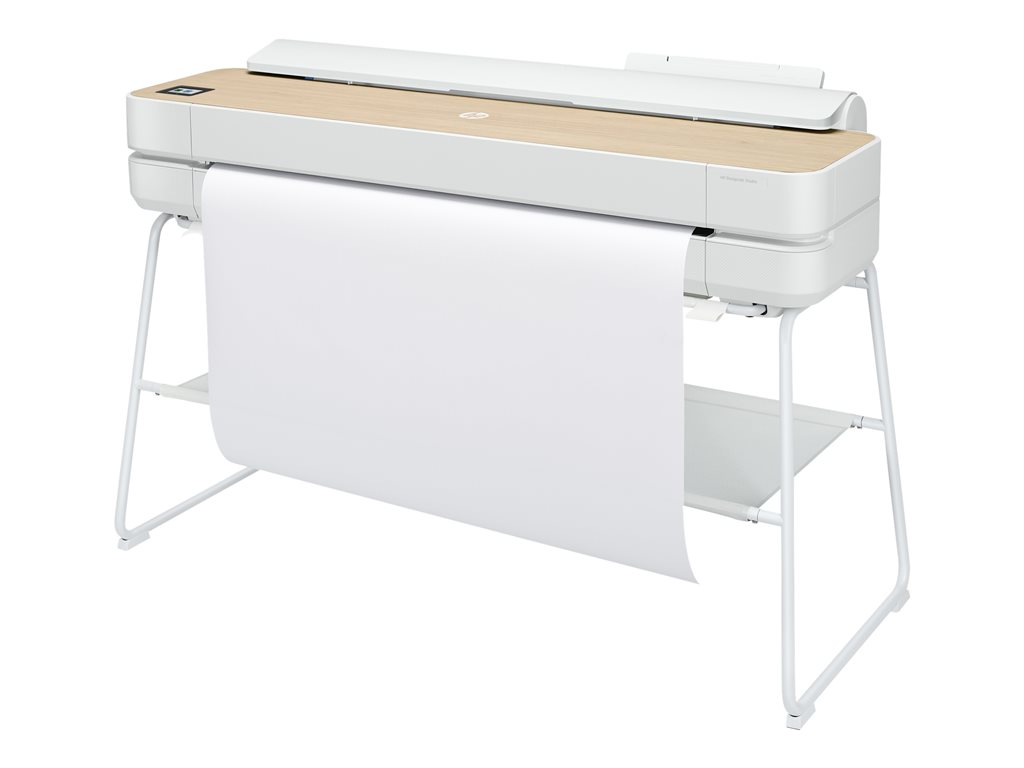

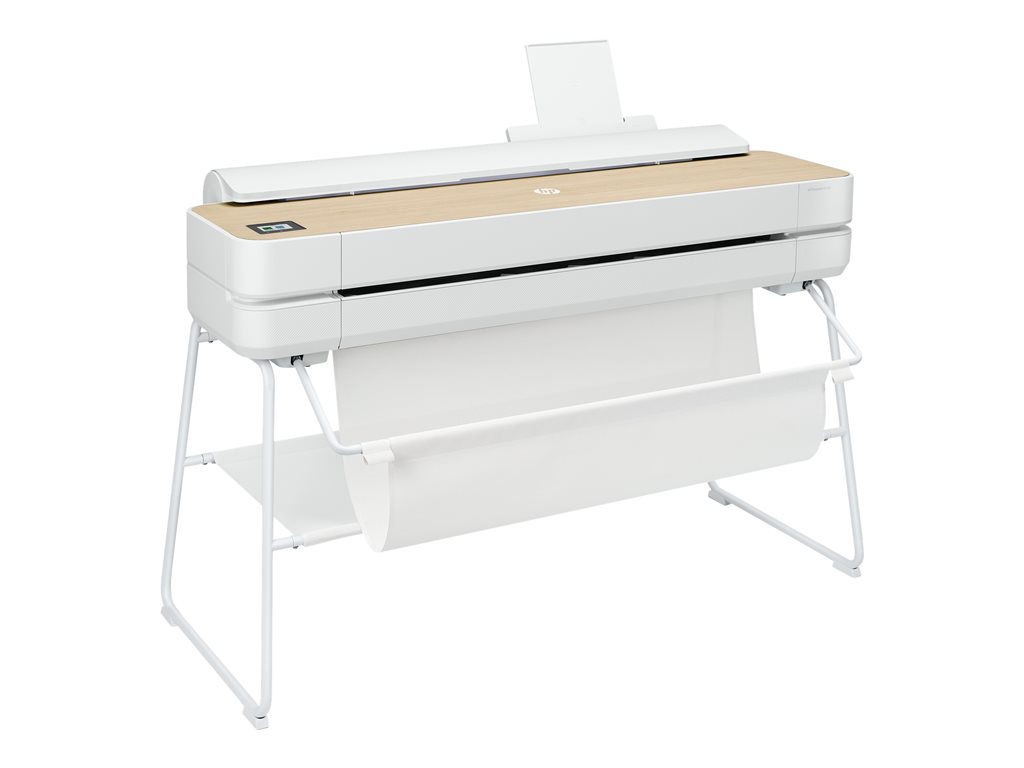

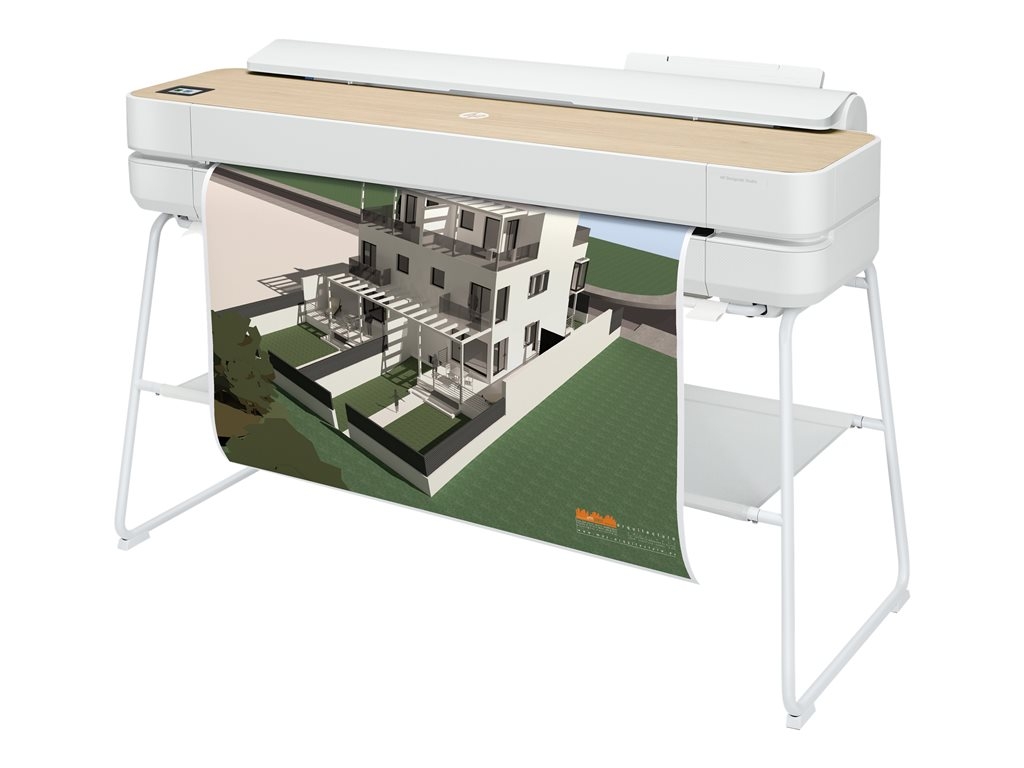

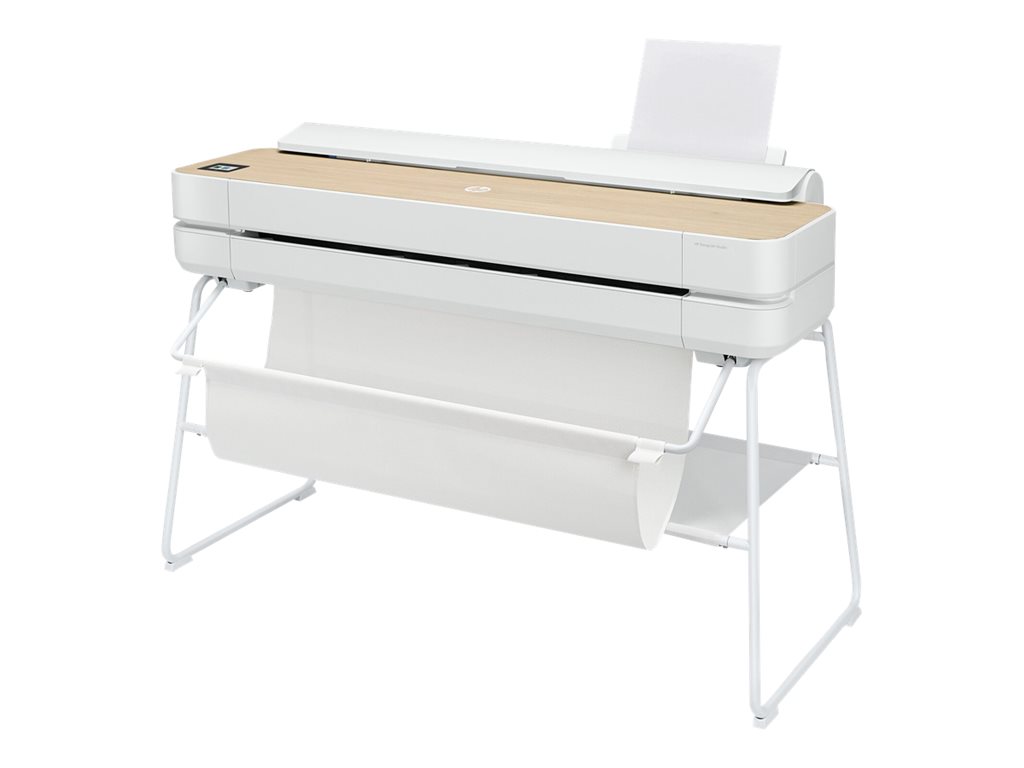

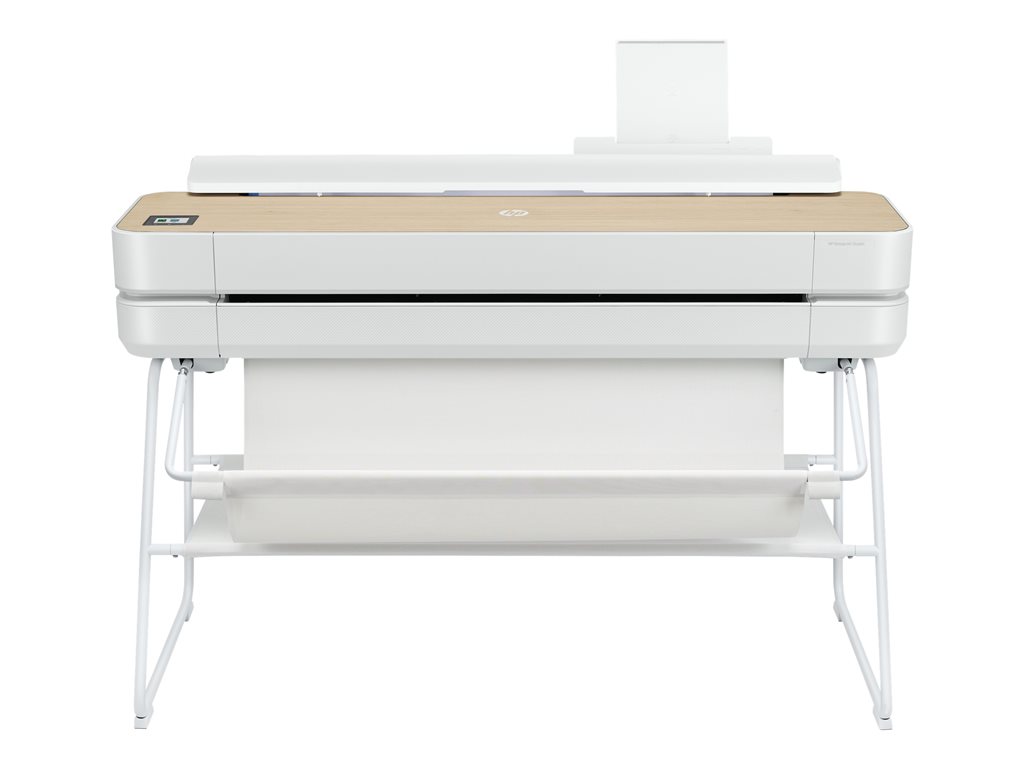

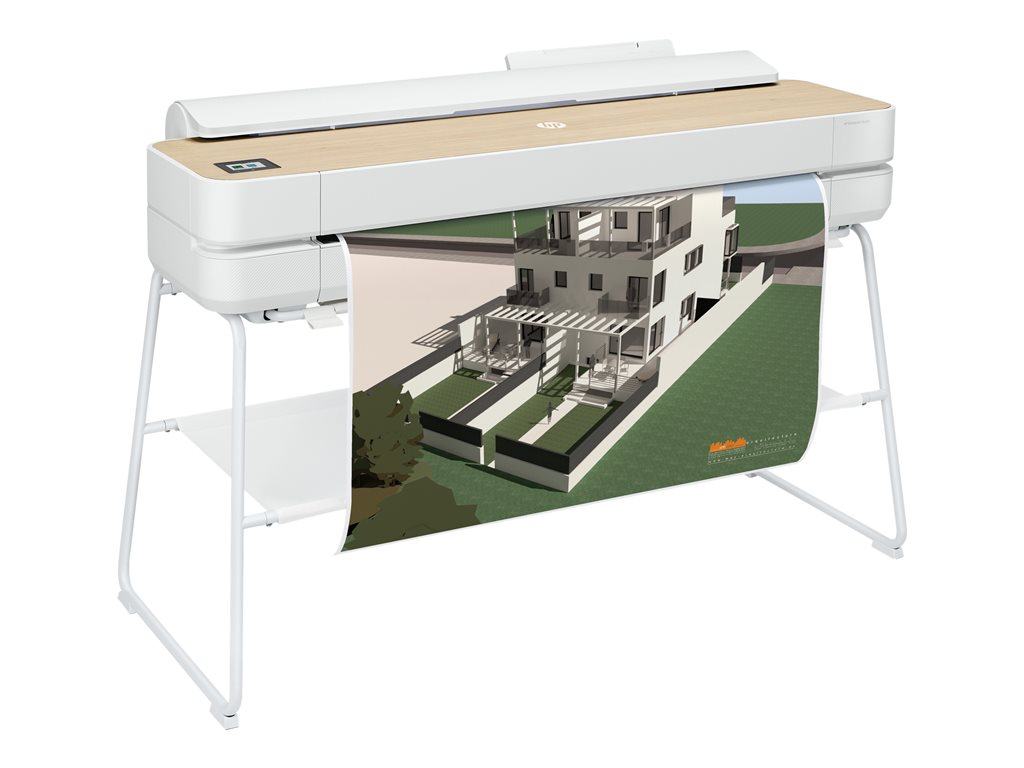

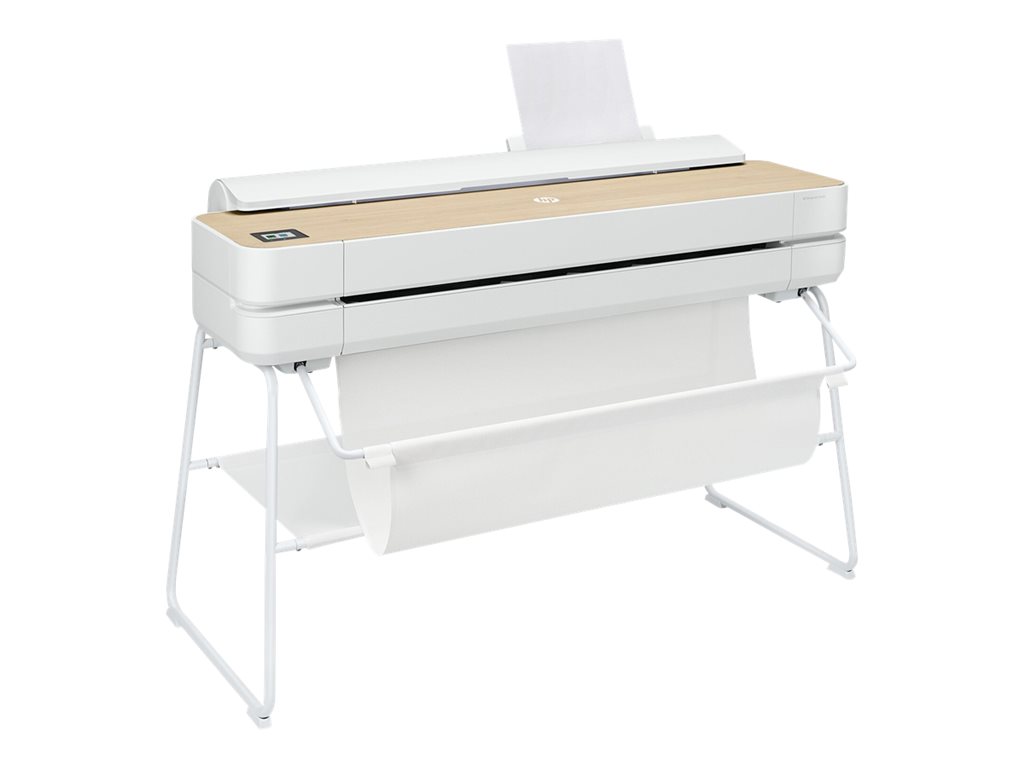

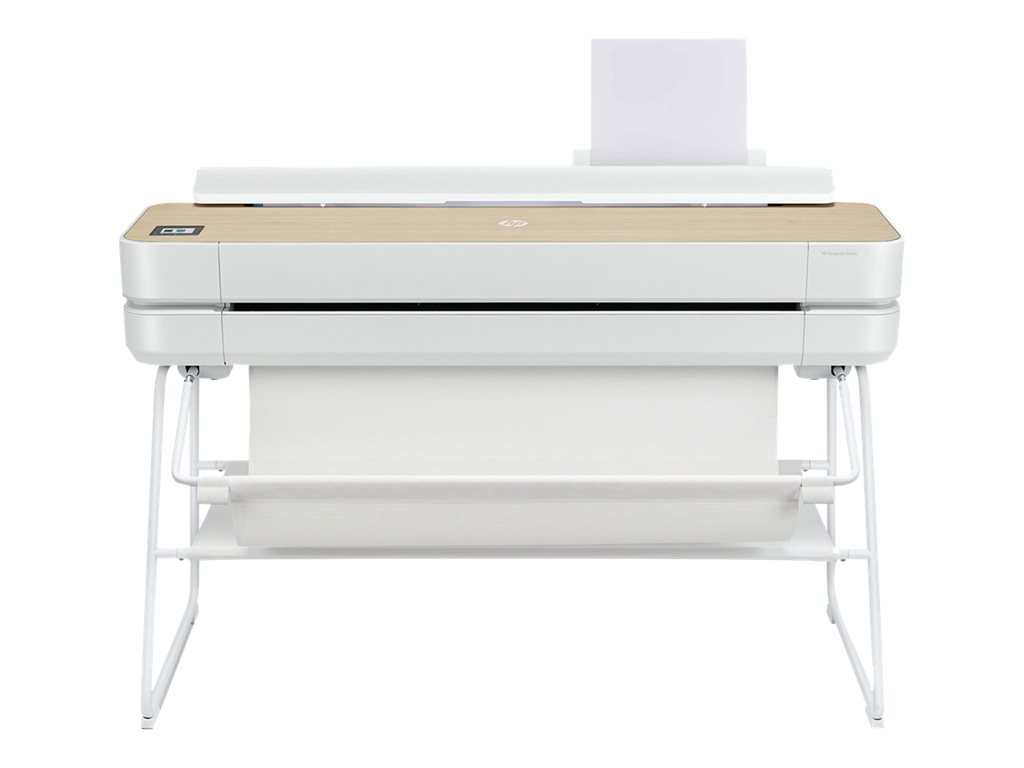

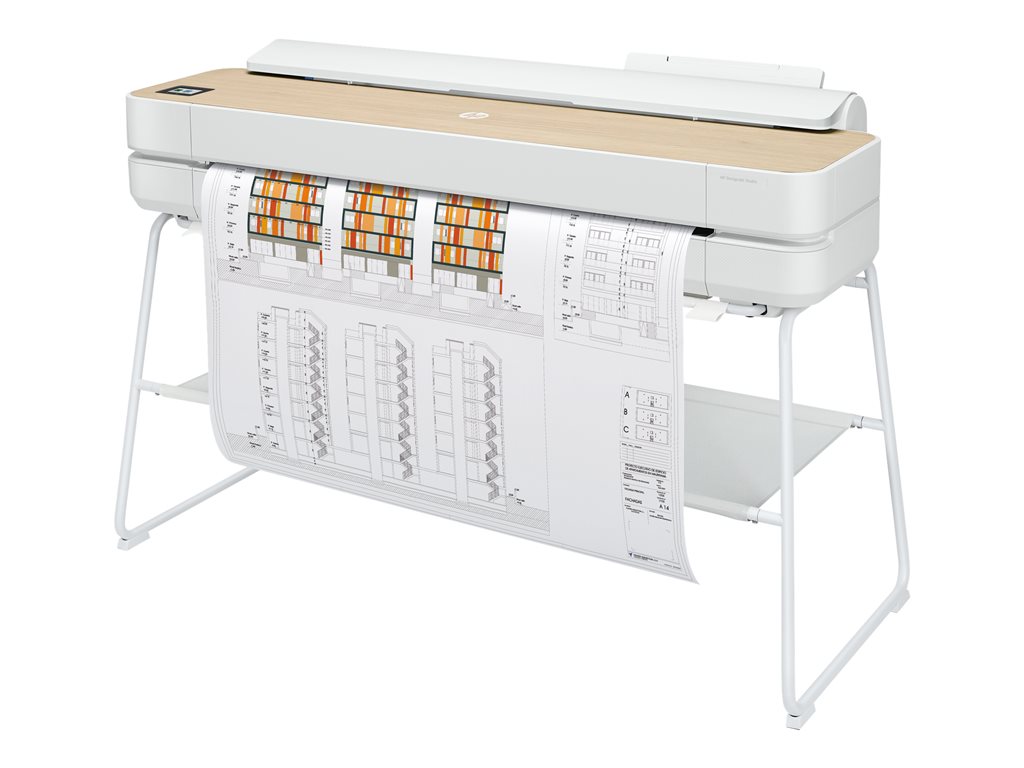

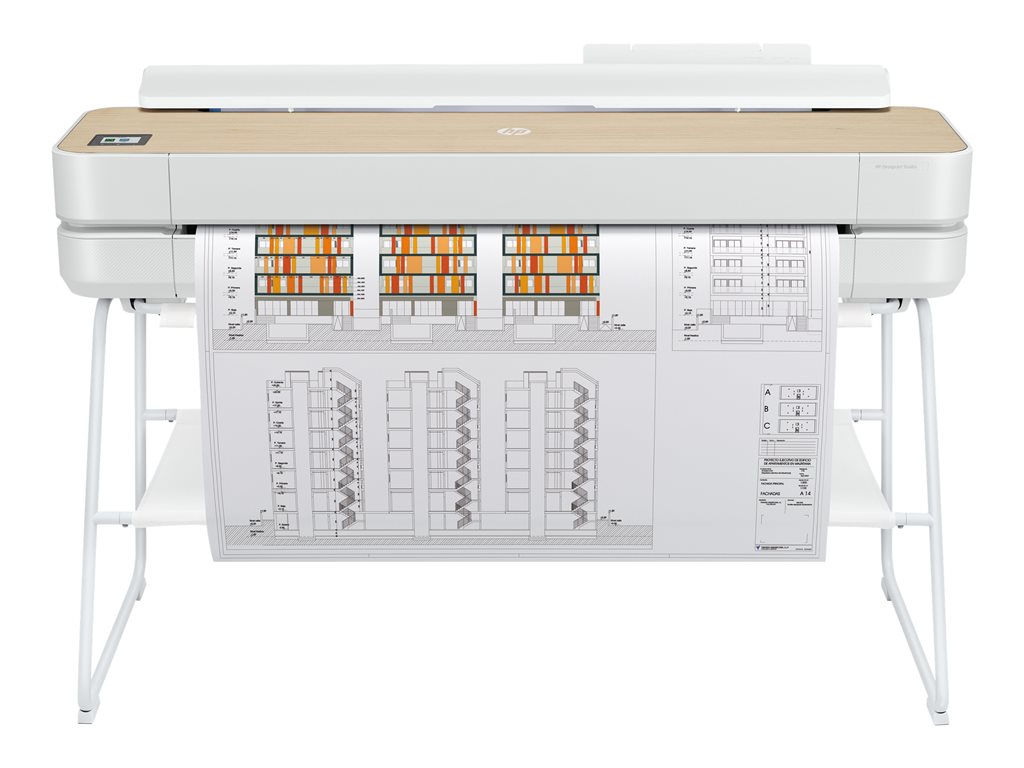

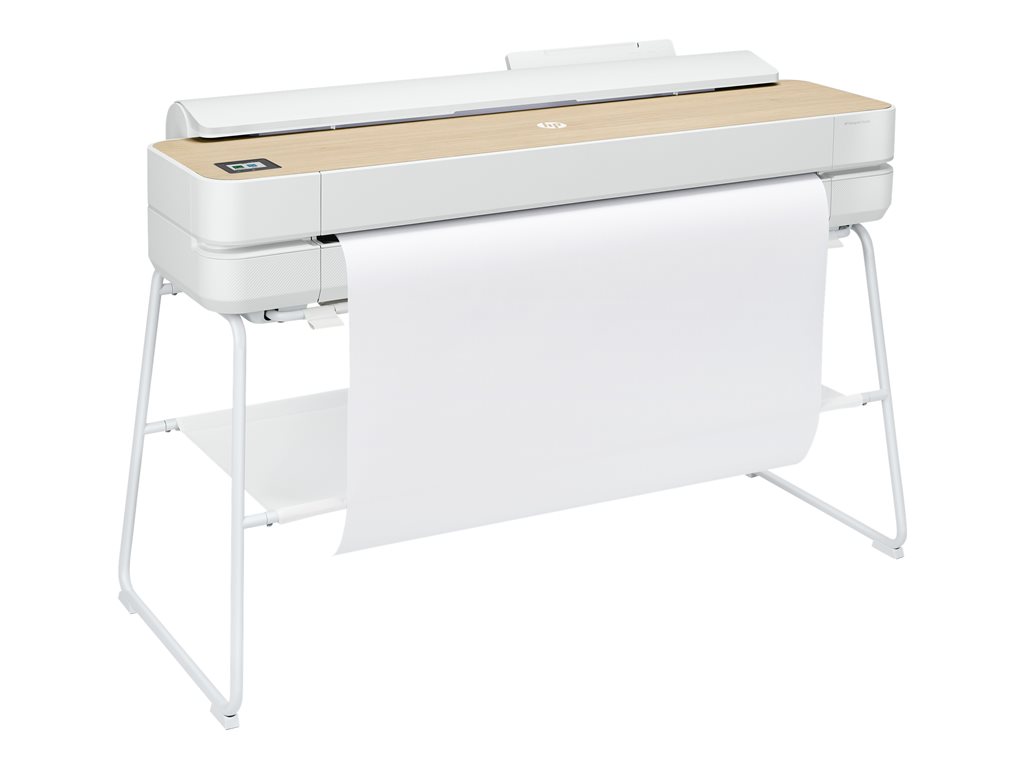

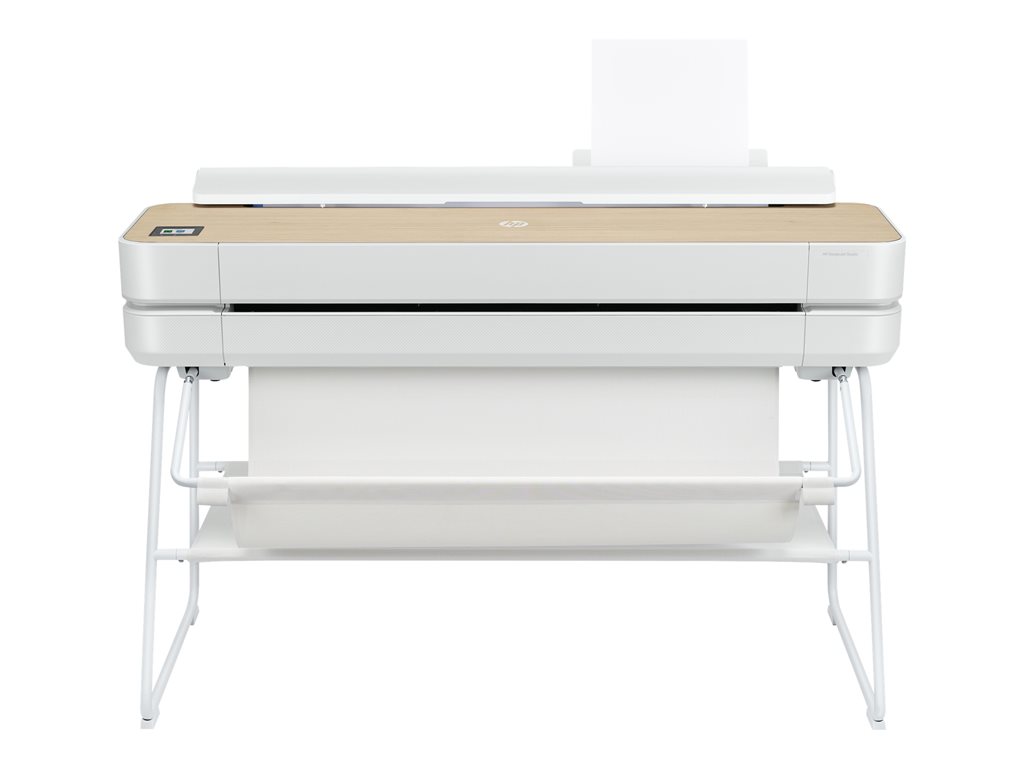

HP DesignJet Studio - large-format printer - colour - ink-jet
SKU 5HB14A#B19
Product Description: | HP DesignJet Studio - large-format printer - colour - ink-jet |
Printer Type: | 36" large-format printer - ink-jet - colour |
Weight: | 41.7 kg |
Localisation: | English, French, Spanish, German, Italian / Europe |
Inkjet Technology: | HP Thermal Inkjet |
Ink Palette Supported (Colours): | 4-ink - cyan, magenta, yellow, pigment black |
Max Media Size: | A0 (841 x 1189 mm), ANSI D (559 x 864 mm), Roll (91.4 cm x 45.7 m) |
- Specifications
- Description
General | |
Printer Type: | 36" large-format printer - ink-jet - colour |
Localisation: | English, French, Spanish, German, Italian / Europe |
Printer | |
Inkjet Technology: | HP Thermal Inkjet |
Ink Palette Supported (Colours): | 4-ink - cyan, magenta, yellow, pigment black |
Nozzle Configuration: | 1376 nozzles |
Minimum Ink Droplet Size: | 12 pl (black), 5.5 pl (colour) |
Ink Cartridge Configuration: | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
Print Speed: | Up to 0.42 min/page - black draft - ANSI D (559 x 864 mm) ¦ Up to 0.42 min/page - colour draft - ANSI D (559 x 864 mm) ¦ Up to 0.42 min/page - black draft - A1 (594 x 841 mm) ¦ Up to 0.42 min/page - colour draft - A1 (594 x 841 mm) |
Connectivity Technology: | Wireless |
Interface: | USB 2.0, LAN, Wi-Fi |
Max Resolution (B&W): | 2400 x 1200 dpi |
Max Resolution (Colour): | 2400 x 1200 dpi |
Language Simulation: | HP GL/2, HP RTL, CALS G4, JPEG, URF |
Printer Features: | Print from mobile device, 6.2 kg max roll weight |
RAM | |
RAM Installed (Max): | 1 GB / 1 GB (max) |
Media Handling | |
Media Type: | Bond paper, film, technical paper, plain paper, photo paper, glossy paper, self-adhesive paper, semi-gloss paper |
Max Media Size: | A0 (841 x 1189 mm), ANSI D (559 x 864 mm), Roll (91.4 cm x 45.7 m) |
Min Media Size (Custom): | 210 mm x 279 mm |
Max Media Size (Custom): | 914 mm x 45.7 m |
Media Sizes: | A4 (210 x 297 mm), A3 (297 x 420 mm), A2 (420 x 594 mm), A1 (594 x 841 mm), A0 (841 x 1189 mm), ANSI A (Letter) (216 x 279 mm), ANSI B (Ledger) (279 x 432 mm), ANSI C (432 x 559 mm), ANSI D (559 x 864 mm), ANSI E (864 x 1118 mm), Roll (91.4 cm x 45.7 m) |
Media Thickness Range: | Up to 0.3 mm |
Media Weight: | 60 g/m² - 280 g/m² |
Networking | |
Networking: | Print server |
Expansion / Connectivity | |
Connections: | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
Miscellaneous | |
Compliant Standards: | EMC Class B, RED, EU RoHS, EAEU RoHS, REACH, ERP, LVD, EN 60950-1, EN 62368-1, EAC |
Power | |
Power Device: | Power supply - internal |
Frequency Required: | 50/60 Hz |
Power Consumption Operational: | 35 Watt |
Power Consumption Stand by: | 0.2 Watt |
Power Consumption Sleep: | 2.1 Watt |
Software / System Requirements | |
Software Included: | HP Click, HP DesignJet Utility, HP Support Assistant |
Environmental Standards | |
ENERGY STAR: | Yes |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature: | 5 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 20 - 80% |
Sound Emission (Idle): | 16 dBA |
Sound Emission (Operating): | 42 dBA |
Dimensions & Weight | |
Width: | 131.7 cm |
Depth: | 55.5 cm |
Height: | 93.2 cm |
Weight: | 41.7 kg |
Dimensions & Weight (Shipping) | |
Width (Shipping): | 147 cm |
Depth (Shipping): | 57.5 cm |
Height (Shipping): | 64.6 cm |
Weight (Shipping): | 62 kg |
- Design that performs, technology that stands out
- Easily set up your plotter using your smartphone
- First net carbon neutral HP DesignJet plotter
- Print multi-size A3/B and A0/E projects automatically, without manually switching the media source
- Save time with the world's easiest job submission - send multiple files in one click with HP Click software
- Print with confidence you'll get the results you expect with an intuitive driver and true print preview
- Avoid waiting by the printer with high-speed printing as fast as 25 seconds per A1/D plot
- Be more productive - save time from job prep to final print by printing your projects up to 2x faster
- Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app
- Get high-quality results - HP Bright Office Inks plot up to 31% more-line accuracy and up to 65% more gamut
