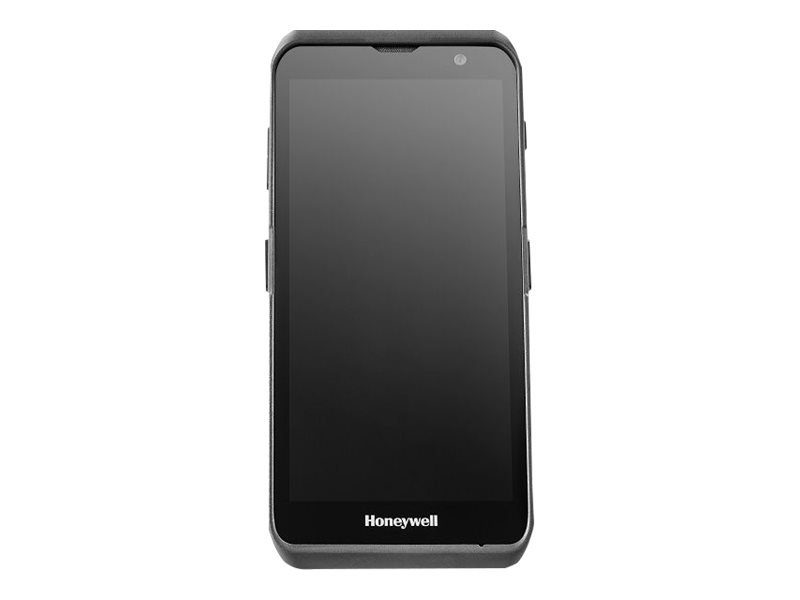

Printers & POSHoneywell ScanPal EDA5S - data collection terminal - Android 11 - 32 GB - 5.5"
SKU EDA5S-00AE31N21RK
| Product Description: | Honeywell ScanPal EDA5S - data collection terminal - Android 11 - 32 GB - 5.5" |
| Product Type: | Data collection terminal - rugged |
| Operating System: | Android 11 |
| Display: | 5.5" colour LED backlight - 1440 x 720 - Multi-Touch |
| Processor: | Qualcomm Snapdragon SM6115 (8-core) |
| Processor Clock Speed: | 2 GHz |
| Storage: | 32 GB |
- Specifications
- Description
| General | |
| Product Type: | Data collection terminal - rugged |
| Operating System: | Android 11 |
| Display | |
| Type: | 5.5" colour - LED backlight |
| Resolution: | 1440 x 720 |
| Touchscreen: | Multi-Touch |
| Features: | Glass Film Film (GFF), Corning Gorilla glass 5, capacitive touch screen |
| Processor | |
| Processor: | Qualcomm Snapdragon SM6115 |
| Processor Clock Speed: | 2 GHz |
| Number of Cores: | 8-core |
| Memory | |
| Storage: | 32 GB |
| RAM: | 3 GB |
| Supported Flash Memory Cards: | microSD, microSDHC, microSDXC |
| Max Supported Capacity: | 128 GB |
| Communications | |
| Wireless Connectivity: | 802.11a/b/g/n/ac, NFC, Bluetooth 5.1 |
| Security Protocols & Features: | LEAP, WEP, WPA, EAP-TTLS, EAP-TLS, WPA2-Enterprise, OPEN, EAP-PWD, WPA3, WPA3-Enterprise, WPA2-EAP, EAP-PEAP, WPA3-OWE |
| Rear Camera | |
| Sensor Resolution: | 13 Megapixel |
| Front Camera | |
| Sensor Resolution: | 5 Megapixel |
| Input Device | |
| Type: | Touch-screen |
| Keys Qty: | 5 |
| Barcodes | |
| Barcode Reader: | Yes |
| Scan Element Type: | 2D imager |
| Expansion and Connectivity | |
| Expansion Slots: | 1 x microSDHC |
| Interfaces: | 1 x USB-C |
| Battery | |
| Technology: | Lithium Ion |
| Capacity: | 3060 mAh |
| Run Time: | Up to 8 hours |
| Recharge Time: | 3.5 hour(s) |
| Miscellaneous | |
| Sensors: | Accelerometer, proximity sensor, light sensor |
| Features: | LED indicator, MU-MIMO technology, Quick Charge, 1.2 m drop to concrete resistant, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), removable battery, Honeywell S0703 imager, scan indicator |
| Included Accessories: | Power adapter |
| Cables Included: | USB-C cable |
| Compliant Standards: | MIL-STD 810G, IP67, TLS, IEEE 802.11ac, SAE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11r, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11w, AER, IEEE 802.11v, WPA2-EAP, WEP, WPA, WPA2, WPA3 |
| Dimensions & Weight | |
| Width: | 7.5 cm |
| Depth: | 1.12 cm |
| Height: | 15.9 cm |
| Weight: | 218 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | -10 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Min Storage Temperature: | -20 °C |
| Max Storage Temperature: | 70 °C |
The ScanPal EDA5S is Honeywell's ScanPal series mobile computer equipped with powerful processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication. A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day. The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication. The EDA5S incorporates the powerful Honeywell S0703 scan engine which enables accurate and fast reading even of damaged or incomplete barcodes. Outfitted with a rugged housing and IP67 rated sealing, the EDA5S can operate under rough usage and demanding environmental conditions. A 3060mAh battery provides up to 8 hours of power without interruption. The battery is also easily removable and supports Quick Charge 3.0.
The technical details come from 3rd party. edgemo is not responsible for any errors.
