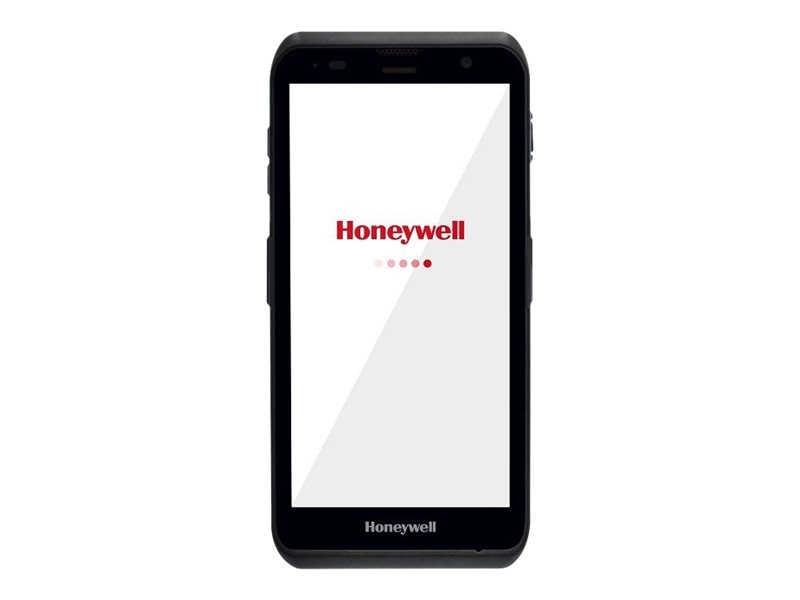

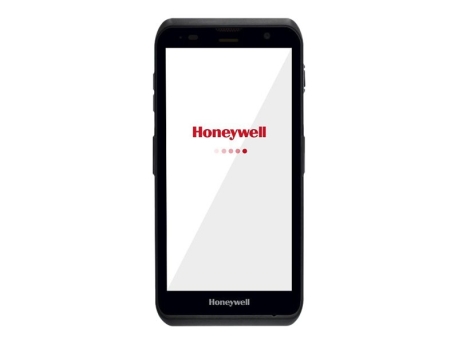

Honeywell ScanPal EDA52 - data collection terminal - Android 11 - 64 GB - 5.5"
SKU EDA52-00AE6BN21RK
Product Description: | Honeywell ScanPal EDA52 - data collection terminal - Android 11 - 64 GB - 5.5" |
Product Type: | Data collection terminal - rugged |
Operating System: | Android 11 |
Display: | 5.5" LED backlight - 1440 x 720 - Multi-Touch |
Processor: | Qualcomm Snapdragon SM6115 (8-core) |
Processor Clock Speed: | 2 GHz |
Storage: | 64 GB |
- Specifications
- Description
General | |
Product Type: | Data collection terminal - rugged |
Operating System: | Android 11 |
Display | |
Type: | 5.5" - LED backlight |
Resolution: | 1440 x 720 |
Touchscreen: | Multi-Touch |
Features: | Glass Film Film (GFF), Corning Gorilla glass 5, capacitive touch screen |
Processor | |
Processor: | Qualcomm Snapdragon SM6115 |
Processor Clock Speed: | 2 GHz |
Number of Cores: | 8-core |
Memory | |
Storage: | 64 GB |
RAM: | 4 GB |
Supported Flash Memory Cards: | microSD, microSDHC, microSDXC |
Max Supported Capacity: | 128 GB |
Communications | |
Wireless Connectivity: | 802.11a/b/g/n/ac, NFC, Bluetooth 5.1 |
Security Protocols & Features: | LEAP, WEP, TLS, WPA, WPA2, WPA2-PSK, TTLS, PEAP, WPA2-Enterprise, OPEN, PWD, WPA3, WPA3-Enterprise, WPA3-SAE, WPA3-OWE |
Rear Camera | |
Sensor Resolution: | 13 Megapixel |
Focus Adjustment: | Automatic |
Front Camera | |
Sensor Resolution: | 5 Megapixel |
Input Device | |
Type: | Touch-screen |
Keys Qty: | 5 |
Barcodes | |
Barcode Reader: | Yes |
Scan Element Type: | 2D imager |
Software | |
Preloaded Software: | Google Mobile Services |
Expansion and Connectivity | |
Expansion Slots: | 1 x microSD |
Interfaces: | USB-C ¦ 6 pin connector |
Battery | |
Technology: | Lithium Ion |
Capacity: | 4500 mAh |
Run Time: | Up to 12 hours |
Recharge Time: | 3.5 hour(s) |
Miscellaneous | |
Sensors: | Accelerometer, proximity sensor, light sensor |
Features: | Volume control, firmware upgradable, scan key, MU-MIMO technology, QC3.0 Quick Charge, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), removable battery, Honeywell S0703 imager, 1.3 m drop to concrete resistant, Real-Time Clock (RTC) with 10min backup (super capacitor) |
Compliant Standards: | MIL-STD 810G, IP67, IEEE 802.11ac, SAE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11r, WPA2-PSK, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11w, IEEE 802.11v, WEP, WPA, WPA2, WPA3 |
Dimensions & Weight | |
Width: | 7.5 cm |
Depth: | 1.44 cm |
Height: | 15.9 cm |
Weight: | 258 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 1 year |
Environmental Parameters | |
Min Operating Temperature: | -20 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 90% (non-condensing) |
Min Storage Temperature: | -30 °C |
Max Storage Temperature: | 70 °C |
ScanPal EDA52 is Honeywell's next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication.
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.
The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.
Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0.
The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.
The EDA52 is built on Android 11 and can be upgraded to Android 13 minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.
The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.
Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0.
The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.
The EDA52 is built on Android 11 and can be upgraded to Android 13 minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.
The technical details come from 3rd party. edgemo is not responsible for any errors.
