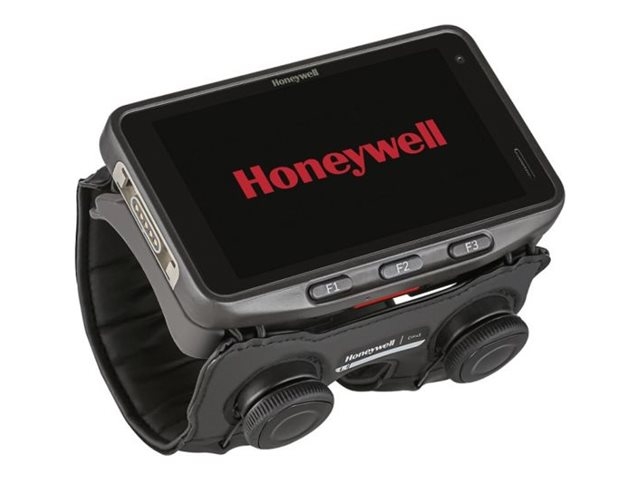

Honeywell CW45 - data collection terminal - Android 12 - 64 GB - 4.7"
SKU CW45-X0N-BND10XG
Product Description: | Honeywell CW45 - data collection terminal - Android 12 - 64 GB - 4.7" |
Product Type: | Data collection terminal - rugged |
Operating System: | Android 12 |
Display: | 4.7" colour LED backlight - 720 x 1280 - Multi-Touch |
Processor: | Qualcomm QCS4290/QCM4290 (8-core) |
Processor Clock Speed: | 2 GHz |
Storage: | 64 GB UFS card |
- Specifications
- Description
General | |
Product Type: | Data collection terminal - rugged |
Operating System: | Android 12 |
Display | |
Type: | 4.7" colour - LED backlight |
Resolution: | 720 x 1280 |
Touchscreen: | Multi-Touch |
Features: | Glove touch mode, rain sensing touch mode, optical bonding, Corning Gorilla glass 5, capacitive touch screen, stylus touch mode, screen protector mode |
Processor | |
Processor: | Qualcomm QCS4290/QCM4290 |
Processor Clock Speed: | 2 GHz |
Number of Cores: | 8-core |
Memory | |
Storage: | 64 GB UFS card |
RAM: | 6 GB - LPDDR4X SDRAM |
Communications | |
Wireless Connectivity: | NFC, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 LE |
Security Protocols & Features: | WEP, TLS, WPA, WPA2, TTLS, PEAP, OPEN, WPA3, IPSec V4/L2TP, PPTP |
Bluetooth Profiles: | Hands-Free Profile (HFP), Object Push Profile (OPP), Serial Port Profile (SPP), Advanced Audio Distribution Profile (A2DP), Audio/Video Remote Control Profile (AVRCP), Phonebook Access Profile (PBAP), Generic Attribute Profile (GATT) |
Front Camera | |
Sensor Resolution: | 8 Megapixel |
Multimedia | |
Audio: | Microphone, speaker |
Input Device | |
Type: | Touch-screen, 3 programmable buttons, alphanumeric keypad |
Keys Qty: | 21 |
Barcodes | |
Barcode Reader: | Yes |
Scan Element Type: | 2D imager |
RFID | |
RFID Specification: | Mifare, Felica, ISO/IEC 15693 |
Software | |
Preloaded Software: | Honeywell Mobility Edge Utilities and Demos, Honeywell Device Client Pack (1 year prelicenced) |
Expansion and Connectivity | |
Interfaces: | 1 x dock ¦ 1 x USB |
USB Host: | Yes |
Battery | |
Technology: | Lithium Ion |
Capacity: | 6800 mAh |
Recharge Time: | 6.5 hour(s) |
Miscellaneous | |
Sensors: | Accelerometer, ambient light sensor, gyroscope, eCompass, high gravity sensor |
Features: | Warm swap, 2x2 MiMo function, ergonomic, compact, 13 Megapixel side camera |
Compliant Standards: | IEC 60068-2-32, IP67, IP65, ISO/IEC 18092, MIL-STD-810H, ISO/IEC 15693, ISO/IEC 14443A/B |
Localisation: | Global |
Dimensions & Weight | |
Width: | 13.3 cm |
Depth: | 1.4 cm |
Height: | 8.6 cm |
Weight: | 328 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 1 year |
Environmental Parameters | |
Min Operating Temperature: | -20 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 5 - 95% RH (non-condensing) |
Min Storage Temperature: | -30 °C |
Max Storage Temperature: | 70 °C |
The CW45 wearable computer is a robust tool that improves productivity by ergonomically presenting workflow information at the point of activity and integrating the tools needed to do the job at hand. Ultra-reliable performance, data connectivity and communications for mobile workers on the front lines of warehouse/DC, retail, logistics and manufacturing are always where you need them, when you need them. Designed from the ground up for comfort, ease of use, and reliability, the CW45 offers a low-profile 4.7-inch HD display, high-end ruggedness, and comfortable, easy-to-wear accessories. The CW45 is designed for companies that invest in sophisticated solutions and want a long-lasting, stable and secure platform on which to base them. Developed on Honeywell's next-generation Mobility Edge platform, the CW45 offers the lifecycle, security and durability needed to optimize the solution's long-term return on investment.
The technical details come from 3rd party. edgemo is not responsible for any errors.
