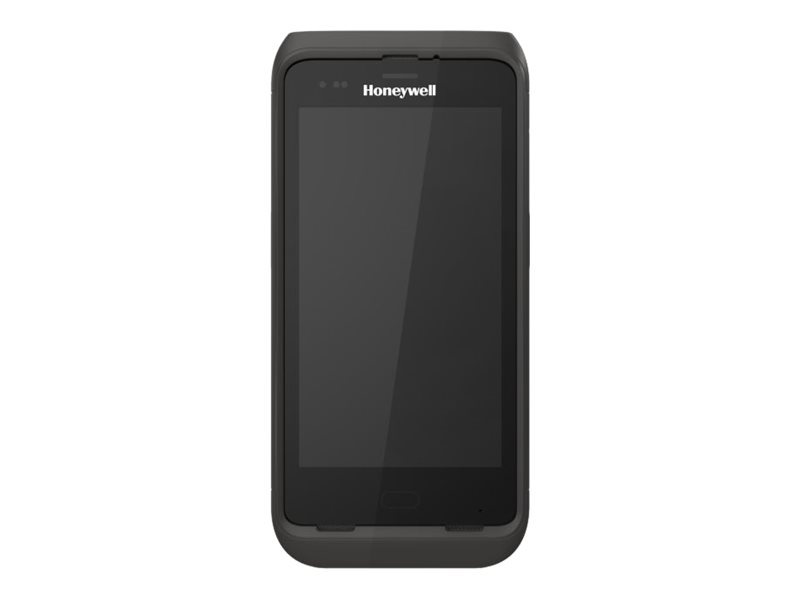

Printers & POSHoneywell CT45 XP - data collection terminal - Android 11 - 64 GB - 5" - 4G
SKU CT45P-L1N-38D120G
| Product Description: | Honeywell CT45 XP - data collection terminal - Android 11 - 64 GB - 5" - 4G |
| Product Type: | Data collection terminal - rugged |
| Operating System: | Android 11 |
| Display: | 5" colour LED backlight - 1920 x 1080 - Multi-Touch |
| Processor: | Qualcomm QCS4290/QCM4290 (8-core) |
| Processor Clock Speed: | 2 GHz |
| Storage: | 64 GB UFS card |
- Specifications
- Description
| General | |
| Product Type: | Data collection terminal - rugged |
| Operating System: | Android 11 |
| Display | |
| Type: | 5" colour - LED backlight |
| Resolution: | 1920 x 1080 |
| Touchscreen: | Multi-Touch |
| Features: | Glove touch mode, rain sensing touch mode, optical bonding, Corning Gorilla glass 5, capacitive touch screen |
| Processor | |
| Processor: | Qualcomm QCS4290/QCM4290 |
| Processor Clock Speed: | 2 GHz |
| Number of Cores: | 8-core |
| Memory | |
| Storage: | 64 GB UFS card |
| RAM: | 6 GB - LPDDR4X SDRAM |
| Supported Flash Memory Cards: | microSD, microSDHC, microSDXC |
| Max Supported Capacity: | 512 GB |
| Compatibility: | microSDIO |
| Communications | |
| Cellular Technology: | 4G |
| Cellular Protocols: | GSM, UMTS, HSPA+, LTE Advanced |
| Max Transfer Rate: | 390 Mbps |
| Wireless Connectivity: | NFC, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
| Security Protocols & Features: | LEAP, WEP, WPA, WPA2, EAP-TTLS, EAP-TLS, WPA2-Enterprise, OPEN, EAP-PWD, WPA-Enterprise, WPA3, WPA3-Enterprise, EAP-PEAP |
| Bluetooth Profiles: | Hands-Free Profile (HFP), Object Push Profile (OPP), Serial Port Profile (SPP), Advanced Audio Distribution Profile (A2DP), Audio/Video Remote Control Profile (AVRCP), Phonebook Access Profile (PBAP), Generic Attribute Profile (GATT) |
| Rear Camera | |
| Sensor Resolution: | 13 Megapixel |
| Focus Adjustment: | Automatic |
| Front Camera | |
| Sensor Resolution: | 8 Megapixel |
| Navigation System | |
| Receiver: | A-GPS/GPS/GLONASS/Gallileo/Beidou |
| Multimedia | |
| Audio: | Three microphones, speaker |
| Barcodes | |
| Barcode Reader: | Yes |
| Scan Element Type: | 2D imager |
| Max Working Distance: | 10 m |
| RFID | |
| RFID Specification: | ISO 15693, Mifare, Felica, DESFire, ISO 14443A, ISO 14443B, ISO/IEC 18092 Type F |
| Software | |
| Preloaded Software: | Honeywell SDK, Google Mobile Services, Honeywell Mobility Edge Utilities and Demos |
| Expansion and Connectivity | |
| Expansion Slots: | 1 x microSDXC ¦ 2 x Nano-SIM card |
| Interfaces: | Headphones mini jack (3.5mm) ¦ USB-C |
| USB Host: | Yes |
| Battery | |
| Technology: | Lithium Ion |
| Capacity: | 4020 mAh |
| Run Time: | Up to 12 hours |
| Recharge Time: | 3 hour(s) |
| Miscellaneous | |
| Sensors: | Accelerometer, ambient light sensor, proximity sensor, magnetometer, hall sensor, gravity sensor, gyroscope |
| Features: | Moisture resistant, drop-resistant, microphone with noise-cancellation, warm swap, QC3.0 Quick Charge, 2x2 MiMo function, ESD protection, Voice over Internet Protocol (VoIP), Honeywell FlexRange imager |
| Compliant Standards: | IP68, IP65, HAC (Hearing Aid Compatible), MIL-STD 810H |
| Localisation: | Worldwide |
| Dimensions & Weight | |
| Width: | 7.9 cm |
| Depth: | 1.92 cm |
| Height: | 16.3 cm |
| Weight: | 282 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | -20 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Min Storage Temperature: | -30 °C |
| Max Storage Temperature: | 70 °C |
The CT45 product family offers an integrated, repeatable, and scalable approach based on a common hardware and software Mobility Edge platform - achieving enterprise stability and security via incorporating a powerful Qualcomm processor that is guaranteed to support from Android 11 throughout Android 13, Android 14 and 15 are committed subject to feasibility.
The CT45 XP leverages the latest Wi-Fi 6 technology to facilitate access to essential information with low latency, even in a highly dense connected environment. Delivery workers can now efficiently access the network outside of the 4 walls using 4G-LTE advanced technology, keeping mobile frontline workers always connected to crucial information to place orders, check stock, look up order status, or scan items anywhere and anytime.
The CT45 XP leverages the latest Wi-Fi 6 technology to facilitate access to essential information with low latency, even in a highly dense connected environment. Delivery workers can now efficiently access the network outside of the 4 walls using 4G-LTE advanced technology, keeping mobile frontline workers always connected to crucial information to place orders, check stock, look up order status, or scan items anywhere and anytime.
- Hassle-free connectivity
- Survives tough environments
- Improved productivity and ease of use
- Protect investment of ownership
The technical details come from 3rd party. edgemo is not responsible for any errors.
