Printers & POSHoneywell 5145 Eclipse - barcode scanner
SKU MK5145-31C41-EU
| Product Description: | Honeywell 5145 Eclipse - barcode scanner |
| Type: | Barcode scanner - handheld - RS-232 - decoded |
| Colour: | Black |
| Localisation: | Europe |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | Visible laser diode |
| Scan Speed: | 72 line / sec |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - handheld |
| Colour: | Black |
| Localisation: | Europe |
| Barcode | |
| Interface Type: | RS-232 |
| Minimum Bar Width: | 4 mil |
| Scan Element Type: | Visible laser diode |
| Scan Mode: | Single-pass |
| Scan Speed: | 72 line / sec |
| Max Working Distance: | 17.8 cm |
| Skew (Degrees): | 52 |
| Pitch (Degrees): | 68 |
| Print Contrast Signal (PCS): | 35% |
| Decode Capability: | EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, GS1 DataBar, Telepen, Code 32, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Trioptic Code, EAN-UCC Composite, Code 93i |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | LED indicator |
| Features: | Reduced Space Symbology (RSS), CodeGate, CodeSense |
| Expansion / Connectivity | |
| Interfaces: | 1 x RS-232 - DB-9 |
| Miscellaneous | |
| Cables Included: | 1 x serial cable - 2.1 m |
| Compliant Standards: | RoHS, WEEE, OPOS, cULus |
| Power | |
| Power Device: | Power adapter - external |
| Voltage: | AC 120/230 V (50/60 Hz) |
| Software | |
| Software Included: | MetroSet2 |
| Dimensions & Weight | |
| Width: | 6.3 cm |
| Depth: | 5.1 cm |
| Height: | 16.9 cm |
| Weight: | 100 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Drop Specification: | 1.5 m |

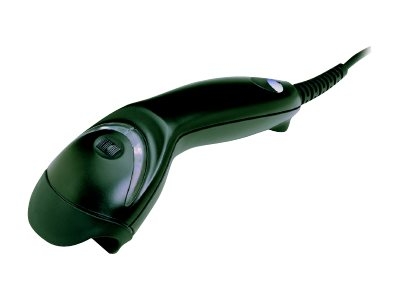

The 5145 Eclipse is a single-line, hand-held laser scanner. Honeywell's patented CodeGate technology allows the user to easily target the desired bar code and complete data transmission with a simple press of a button, making Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
- CodeGate and CodeSense
- OPOS and JPOS system compatible
The technical details come from 3rd party. edgemo is not responsible for any errors.
