Printers & POSHikvision DS-QAZ1325G1T - IP speaker - for PA system
SKU DS-QAZ1325G1T

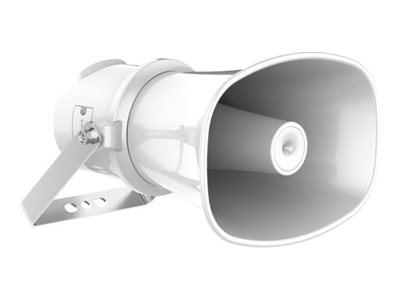

| Product Description: | Hikvision DS-QAZ1325G1T - IP speaker - for PA system |
| Product Type: | IP speaker - for PA system |
| Integrated Memory: | 4 GB |
| Enclosure Design: | Horn |
| Speaker Type: | Active |
| Continuous Power: | 25 Watt |
| Frequency Response: | 100 - 20000 Hz |
- Specifications
- Description
| General | |
| Product Type: | IP speaker - for PA system |
| Features: | 2-way audio talkback, broadcast mode, TTS support |
| Integrated Memory: | 4 GB |
| Microphone: | 2 microphones |
| Enclosure Colour: | White |
| Enclosure Design: | Horn |
| Enclosure Material: | Metal |
| Speaker System | |
| Speaker Type: | Active |
| Continuous Power: | 25 Watt |
| Frequency Response: | 100 - 20000 Hz |
| Nominal Impedance: | 8 Ohm |
| Signal-To-Noise Ratio: | 83 dB |
| Max Output Level (Max SPL): | 124 dB |
| Sensitivity: | 110 dB |
| Amplifier: | Integrated |
| Coverage: | 100° x 70° |
| Voice Codecs: | G.711u-law, G.711a-law, MP3 |
| Network Protocols: | NTP, IPv4, HTTP, HTTPS, SSL, TLS, DNS, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| Audio Formats: | WAV, MP3 |
| Speaker System Details | |
| Driver Details: | Speaker: full-range driver - Horn |
| Connections | |
| Connector Type: | LAN/power (RJ-45) |
| Miscellaneous | |
| Included Accessories: | Threaded cap |
| Compliant Standards: | IP67, EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 6100-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020, RCM, AS/NZS CISPR 32:2015, ICES-003 issue 7, IEC62368-1:2014, EN 62368-1:2014/A11:2017, RoHS 2011/65/EU, WEEE 2012/19/EU, REACH |
| Power | |
| Power Source: | Power over Ethernet (PoE) |
| Dimensions & Weight | |
| Width: | 17.5 cm |
| Depth: | 23.7 cm |
| Height: | 27.2 cm |
| Weight: | 2.1 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 3.1 cm |
| Shipping Depth: | 24.5 cm |
| Shipping Height: | 40 cm |
| Shipping Weight: | 3.4 kg |
| Environmental Parameters | |
| Min Operating Temperature: | -30 °C |
| Max Operating Temperature: | 60 °C |
| Humidity Range Operating: | 0 - 90% (non-condensing) |
The Hikvision DS-QAZ1325G1T is an IP speaker designed for public address systems, bringing versatility to audio solutions. It features a robust design with IP67 compliance for water and dust resistance, ensuring reliable performance in various environments. With a wide frequency response from 100 to 20,000 Hz and a maximum output level of 124 dB, it delivers clear sound in broadcast mode or during two-way audio communication.
Equipped with 4 GB of internal storage, the speaker supports multiple audio formats including WAV and MP3. It operates efficiently with Power over Ethernet (PoE), simplifying installation. The integrated amplifier and horn design enhance audio quality while the metal body ensures durability across a temperature range of -30°C to 60°C, suitable for both indoor and outdoor applications.
Equipped with 4 GB of internal storage, the speaker supports multiple audio formats including WAV and MP3. It operates efficiently with Power over Ethernet (PoE), simplifying installation. The integrated amplifier and horn design enhance audio quality while the metal body ensures durability across a temperature range of -30°C to 60°C, suitable for both indoor and outdoor applications.
- Designed for public address systems with reliable audio output
- IP67 compliance for water and dust resistance
- Supports multiple audio formats including WAV and MP3
- Power over Ethernet simplifies installation
- Operating range from -30°C to 60°C
The technical details come from 3rd party. edgemo is not responsible for any errors.
