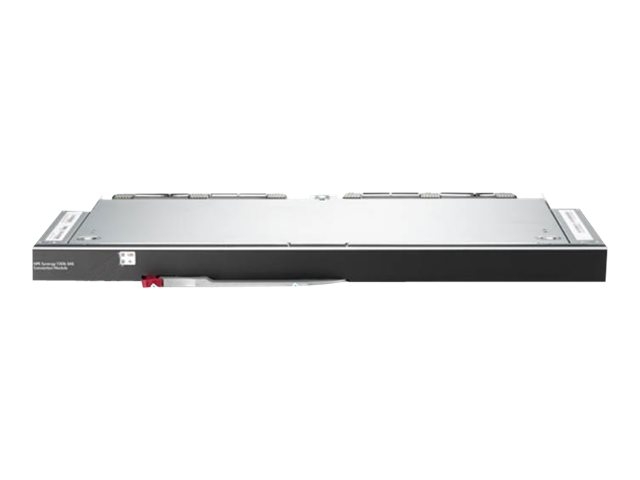

Printers & POSHPE Synergy Connection Module - storage controller - SAS 12Gb/s
SKU 755985-B21
| Product Description: | HPE Synergy Connection Module - storage controller - SAS 12Gb/s |
| Device Type: | Storage controller - plug-in module |
| Interface: | SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Disk array (RAID) |
| Channel Qty: | 4 |
| Max Storage Devices Qty: | 12 |
- Specifications
- Description
| General | |
| Device Type: | Storage controller - plug-in module |
| Storage Controller | |
| Interface: | SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Disk array (RAID) |
| Channel Qty: | 4 |
| Max Storage Devices Qty: | 12 |
| RAID Level: | JBOD |
| Miscellaneous | |
| Features: | Hot-swappable |
| Dimensions & Weight | |
| Width: | 43 cm |
| Depth: | 28.1 cm |
| Height: | 2.74 cm |
| Weight: | 2.68 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For: | HPE Synergy 12000 Frame |
The HPE Synergy SAS Connection Module connects Synergy Compute Modules to in-frame storage resources. It dynamically creates virtual JBODs for any compute module in the HPE Synergy 12000 Frame, remaps connections, or changes personality, all done with stored profiles. The Connection Module provides in-frame connectivity between Synergy compute modules.
- Hot-pluggable SAS Connection Module for HPE Synergy 12000 Frame
- Dual Domain direct attached SAS architecture supported
- Internal blade bay ports, containing SAS links
The technical details come from 3rd party. edgemo is not responsible for any errors.
