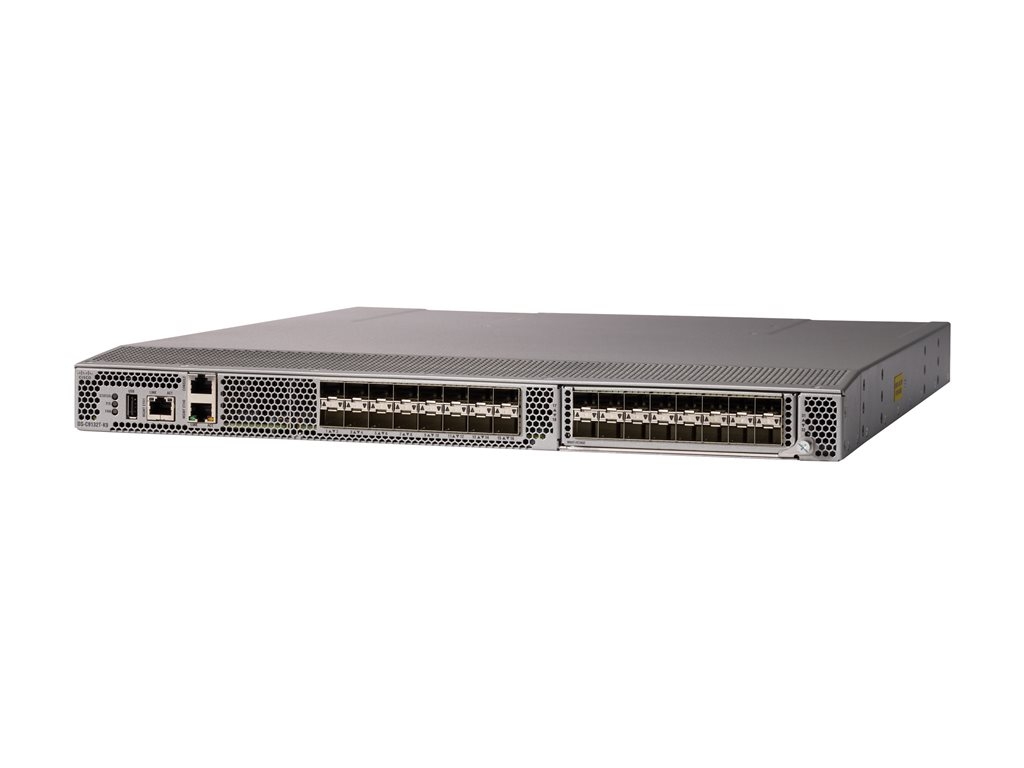

HPE StoreFabric SN6610C - switch - 8 ports - Managed - rack-mountable
SKU Q9D34A
Product Description: | HPE StoreFabric SN6610C - switch - 8 ports - Managed - rack-mountable |
Device Type: | Switch - 8 ports - Managed |
Enclosure Type: | Rack-mountable 1U |
Subtype: | Fibre Channel |
Ports: | 8 x 32Gb Fibre Channel QSFP |
Performance: | Aggregate bandwidth: 2 Tbps ¦ Port-to-port latency: 700 ns |
Capacity: | Maximum frame size: 2112 |
- Specifications
- Description
General | |
Device Type: | Switch - 8 ports - Managed |
Enclosure Type: | Rack-mountable 1U |
Subtype: | Fibre Channel |
Ports: | 8 x 32Gb Fibre Channel QSFP |
Performance: | Aggregate bandwidth: 2 Tbps ¦ Port-to-port latency: 700 ns |
Capacity: | Maximum frame size: 2112 |
Remote Management Protocol: | SNMP 1, SNMP 3, HTTP, SMI-S, SSH, CLI, HTTPS, SSH-2 |
Encryption Algorithm: | SSL |
Authentication Method: | DH-CHAP, FCAP, LDAP, RADIUS, TACACS+ |
Features: | ISL support, Syslog support, manageable, RBAC, SCP, SFTP client, SFTP server, QoS, FPI monitoring, SDDQ, DFP, DPS, Enhanced BB Credit Recovery, FDMI, FSPF, ISL Trunking, RSCN support, RCS, SNS |
Expansion / Connectivity | |
Interfaces: | 8 x 32Gb Fibre Channel QSFP ¦ 1 x 100Base-TX RJ-45 management ¦ 1 x console RJ-45 management ¦ 1 x USB Type A |
Power | |
Power Device: | Internal power supply - hot-plug |
Installed Qty: | 2 |
Max Supported Qty: | 2 |
Power Redundancy: | Yes |
Power Redundancy Scheme: | 1+1 |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Miscellaneous | |
Cables Included: | 1 x serial cable |
Rack Mounting Kit: | Included |
Software / System Requirements | |
Software Included: | Advanced Web Tools, Advanced Fabric OS, Advanced Zoning, Power Pack+, ISL Trunking, Extended Fabric |
Dimensions & Weight | |
Width: | 44 cm |
Depth: | 35.56 cm |
Height: | 4.39 cm |
Weight: | 7.73 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 1 year - on-site |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 85% (non-condensing) |
Min Storage Temperature: | -25 °C |
Max Storage Temperature: | 70 °C |
Are you looking for a high performance Fibre Channel switch for the modern storage area network? The HPE Storage Fibre Channel Switch C-series SN6610C delivers 32 Gbps Fibre Channel (FC) switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE Storage Fibre Channel Switch C-series SN6610C scales from 8 to 32 ports. Additionally, investing in this switch for the lower-speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.
- HPE Storage Fibre Channel Switch C-series SN6610C provides consistent 32 Gbps low-latency performance across every FC port on the switch.
- The HPE Storage Fibre Channel Switch C-series SN6610C provides an option to deploy as few as eight 32 Gbps Fibre Channel (FC) ports which can grow from 8 ports to 16 ports, and thereafter with a port expansion module. Expanding up to a maximum of 32 ports.
- The HPE Storage Fibre Channel Switch C-series SN6610C supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smart zoning, and other various services.
- The HPE Storage Fibre Channel Switch C-series SN6610C provides intelligent diagnostics tools such as inter-switch link diagnostics, read diagnostic parameters, protocol decoding, network analysis tools, and others for improved reliability, faster problem resolution, and reduced service costs.
The technical details come from 3rd party. edgemo is not responsible for any errors.
