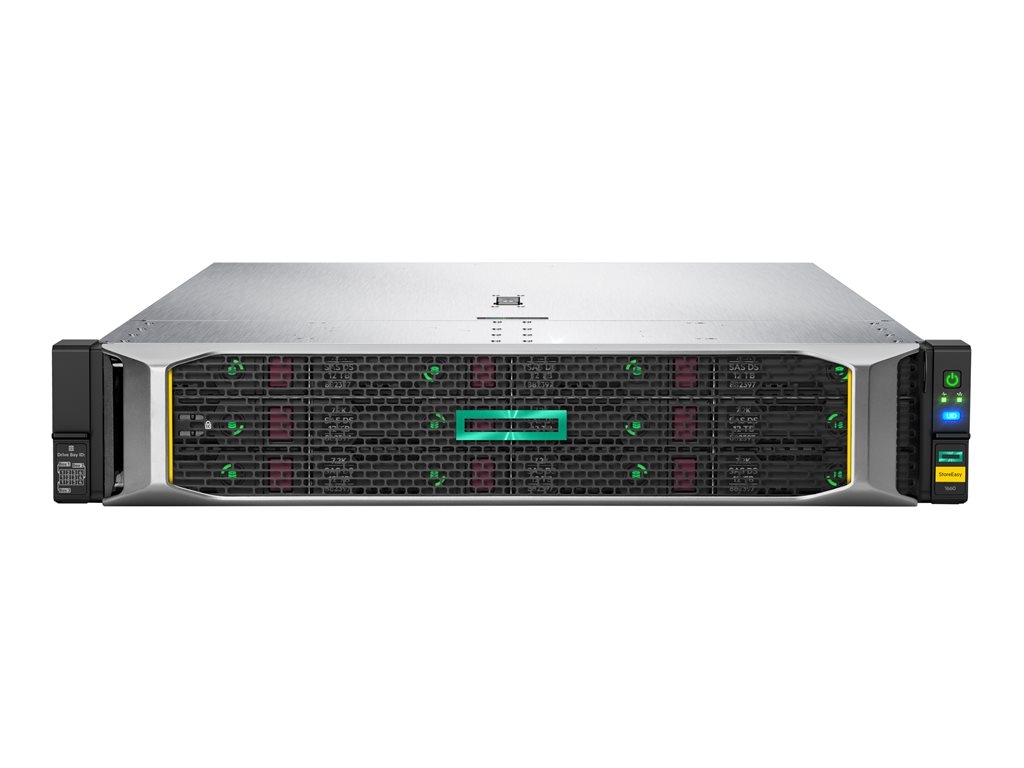

HPE StoreEasy 1660 - NAS server
SKU R7G24A
Product Description: | HPE StoreEasy 1660 - NAS server |
Device Type: | NAS server |
Host Connectivity: | Gigabit Ethernet |
Enclosure Type: | Rack-mountable - 2U |
Max Supported Capacity: | 288 TB |
Installed Devices / Modules Qty: | 8 (installed) / 12 (max) |
Dimensions (WxDxH): | 44.54 cm x 73.02 cm x 8.73 cm |
- Specifications
- Description
General | |
Device Type: | NAS server |
Host Connectivity: | Gigabit Ethernet |
Enclosure Type: | Rack-mountable - 2U |
Total Storage Capacity: | 0 GB |
Max Supported Capacity: | 288 TB |
Installed Devices / Modules Qty: | 8 (installed) / 12 (max) |
Width: | 44.54 cm |
Depth: | 73.02 cm |
Height: | 8.73 cm |
Weight: | 24.5 kg () |
Processor / Memory | |
Processors Installed: | 1 x Intel Xeon Bronze 3204 1.9 GHz |
Number of Cores: | 6-core |
Max Supported Qty: | 2 |
RAM: | 16 GB DDR4 |
Features: | Registered, HPE SmartMemory |
Storage Controller | |
Type: | RAID |
Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
Storage Controller Name: | HPE Smart Array P816i-a |
RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
Hard Drive (2nd) | |
Type: | SSD - 2.5" SFF |
Capacity: | 2 |
Networking | |
Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
Network Services Compatibility: | DNS, DHCP, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Server Message Block 3.1.1 (SMB 3.1.1) |
Expansion / Connectivity | |
Expansion Bays: | 12 (total) / 12 (free) x hot-swap - 3.5" LFF ¦ 2 - 2.5" SFF |
Expansion Slots: | 1 (total) / 1 (free) x FlexibleLOM ¦ 1 x PCI Express 3.0 x16 (full-length, full-height) ¦ 2 x PCI Express 3.0 x8 (full-length, full-height) ¦ 2 (total) / 1 (free) x CPU ¦ 12 (total) / 11 (free) x DIMM 288-pin |
Interfaces: | 1 x VGA ¦ 4 x Ethernet 1000Base-T - RJ-45 ¦ 1 x HPE iLO - RJ-45 ¦ 2 x USB 3.0 |
Miscellaneous | |
Features: | TPM support |
Included Accessories: | Lockable security bezel, 6 x hot-plug redundant fans |
Power | |
Power Device: | Internal power supply - hot-plug |
Installed Qty: | 2 |
Max Supported Qty: | 2 |
Power Redundancy: | Yes |
Power Redundancy Scheme: | 1+1 |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 800 Watt |
80 PLUS Certification: | 80 PLUS Platinum |
Software / System Requirements | |
Storage Operating System: | Microsoft Windows Storage Server IoT 2019 Standard |
Software Included: | HPE iLO Advanced Premium Security Edition with 1 Year Support, HPE StoreEasy Management Console |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Limited warranty - software - 90 days |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 8 - 90% (non-condensing) |
- Adapted and tailored for file storage
- Efficiency saves you time and money
- Multi-dimensional protection for your data
- Highly resilient to prevent disruption to your business and users
