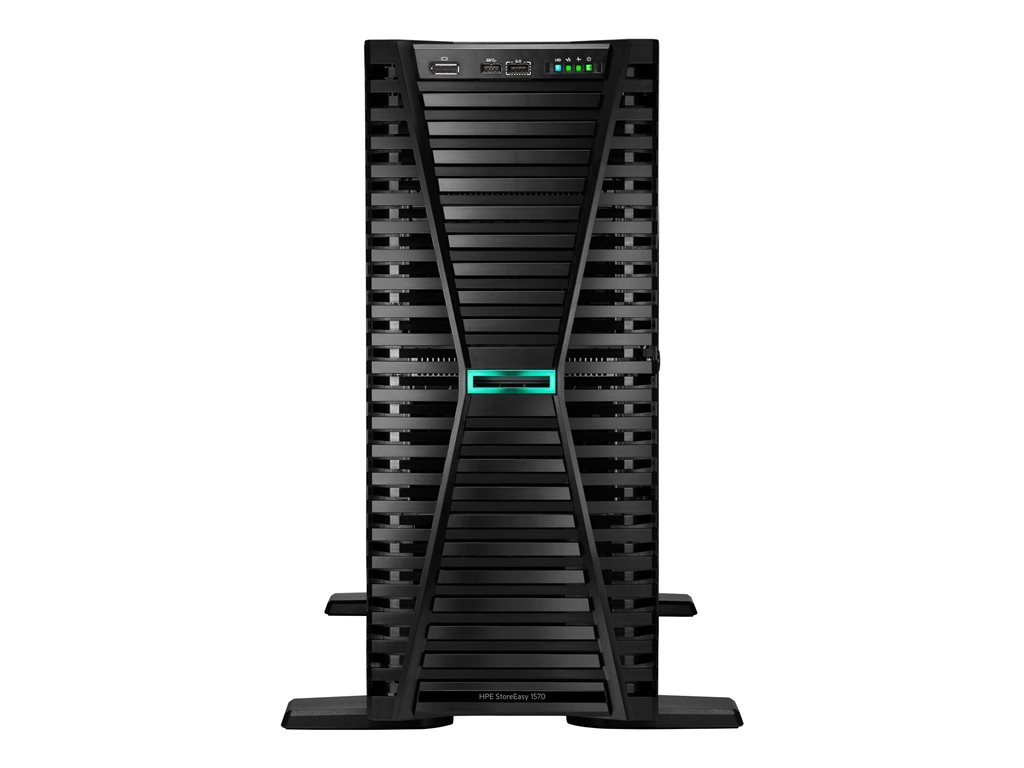

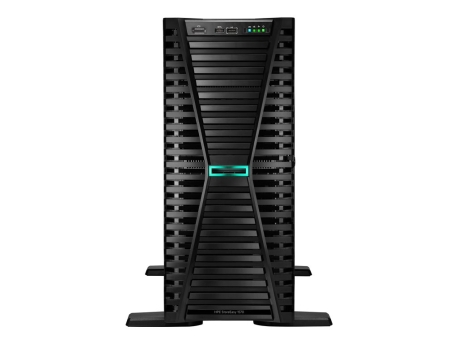

Printers & POSHPE StoreEasy 1570 - NAS server - 16 TB
SKU S2A29A
| Product Description: | HPE StoreEasy 1570 - NAS server - 16 TB |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet |
| Enclosure Type: | 4.5U |
| Total Storage Capacity: | 16 TB |
| Max Supported Capacity: | 112 TB |
| Installed Devices / Modules Qty: | 4 (installed) / 4 (max) |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet |
| Enclosure Type: | 4.5U |
| Total Storage Capacity: | 16 TB |
| Max Supported Capacity: | 112 TB |
| Installed Devices / Modules Qty: | 4 (installed) / 4 (max) |
| Width: | 19.5 cm |
| Depth: | 58.7 cm |
| Height: | 46.2 cm |
| Weight: | 20.4 kg () |
| Processor / Memory | |
| Processors Installed: | 1 x Intel Xeon Bronze 3408U 1.8 GHz |
| Number of Cores: | 8-core |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 1.9 GHz |
| RAM: | 16 GB DDR5 - 4800 Hz |
| Features: | Registered, single rank, HPE SmartMemory |
| Storage Controller | |
| Type: | SATA |
| Interface Type: | SATA 6Gb/s |
| Storage Controller Name: | Intel VROC SATA Software RAID |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Hard Drive | |
| Type: | HDD - 3.5" LFF |
| Capacity: | 4 x 4 TB |
| Interface Type: | SATA 6Gb/s |
| Spindle Speed: | 7200 rpm |
| Features: | RAID 10 - factory configured, Midline |
| Networking | |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, GigE |
| Network Services Compatibility: | DNS, DHCP, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Expansion / Connectivity | |
| Expansion Bays: | 4 (total) / 0 (free) x hot-swap - 3.5" LFF |
| Expansion Slots: | 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCI Express 5.0 x16 (full-length, full-height) ¦ 1 (total) / 1 (free) x PCI Express 5.0 x16 (half-length, full-height) |
| Interfaces: | 2 x Ethernet 1000Base-T (rear) - RJ-45 ¦ 1 x HPE iLO (service) - Type A ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) - Type A ¦ 1 x HPE iLO (1 rear) - RJ-45 ¦ 1 x VGA (1 rear) - DB-15 ¦ 1 x USB 2.0 (internal) |
| Miscellaneous | |
| Cables Included: | 1 x power cable (C13) - 1.83 m |
| Features: | Trusted Platform Module (TPM) |
| Compliant Standards: | WEEE 2002/95/EC |
| Included Accessories: | 2 x non hot-plug redundant fans |
| Pricing Type: | BTO |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Voltage Required: | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided: | 500 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Software / System Requirements | |
| Storage Operating System: | Microsoft Windows Storage Server IoT 2022 Standard |
| Software Included: | HPE iLO Advanced Premium Security Edition with 1 Year Support, HPE StoreEasy Management Console |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 90% RH (non-condensing) |
| Sound Emission: | 28 dBA |
The technical details come from 3rd party. edgemo is not responsible for any errors.
