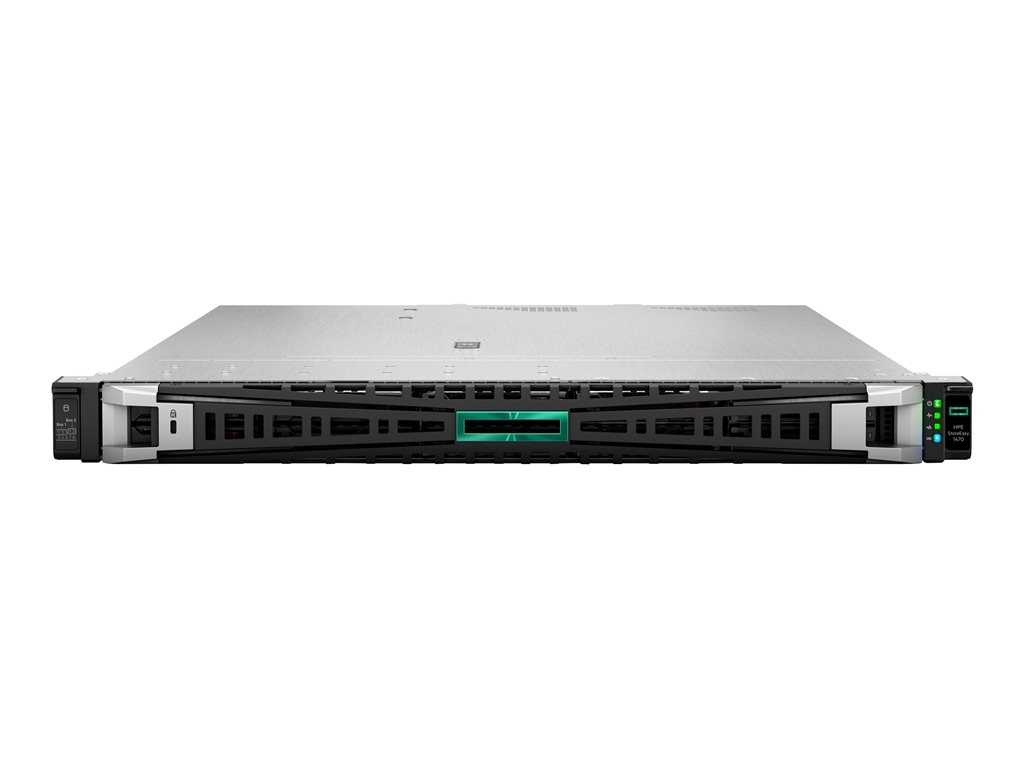

Printers & POSHPE StoreEasy 1470 Performance - NAS server - 16 TB
SKU S2A20A
| Product Description: | HPE StoreEasy 1470 Performance - NAS server - 16 TB |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet |
| Enclosure Type: | Rack-mountable - 1U |
| Total Storage Capacity: | 16 TB |
| Max Supported Capacity: | 48 TB |
| Installed Devices / Modules Qty: | 4 (installed) / 4 (max) |
- Specifications
- Description
| General | |
| Device Type: | NAS server |
| Host Connectivity: | Gigabit Ethernet |
| Enclosure Type: | Rack-mountable - 1U |
| Total Storage Capacity: | 16 TB |
| Max Supported Capacity: | 48 TB |
| Installed Devices / Modules Qty: | 4 (installed) / 4 (max) |
| Width: | 43.44 cm |
| Depth: | 66.47 cm |
| Height: | 4.28 cm |
| Weight: | 17.7 kg () |
| Processor / Memory | |
| Processors Installed: | 1 x Intel Xeon Bronze 3408U 1.8 GHz |
| Number of Cores: | 8-core |
| Max Supported Qty: | 2 |
| Max Turbo Speed: | 1.9 GHz |
| RAM: | 16 GB DDR5 - 4800 Hz |
| Features: | HPE SmartMemory, single rank, registered |
| Storage Controller | |
| Type: | 1 x RAID |
| Interface Type: | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name: | HPE MR408i-o Gen11 SPDM |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Hard Drive | |
| Type: | HDD - 3.5" LFF |
| Capacity: | 4 x 4 TB |
| Interface Type: | SATA 6Gb/s |
| Spindle Speed: | 7200 rpm |
| Features: | Midline, RAID 10 - factory configured |
| Networking | |
| Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
| Network Services Compatibility: | DNS, DHCP, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Expansion / Connectivity | |
| Expansion Bays: | 4 (total) / 0 (free) x hot-swap - 3.5" LFF |
| Expansion Slots: | 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCI Express 5.0 x16 (three-quarter-length, full-height) ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 (low-profile) |
| Interfaces: | 2 x Ethernet 1000Base-T - RJ-45 ¦ 1 x HPE iLO (service) - Type A ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) - Type A ¦ HPE iLO (1 rear) - RJ-45 ¦ 1 x VGA (1 rear) - DB-15 ¦ 1 x USB 2.0 (internal) |
| Miscellaneous | |
| Cables Included: | 1 x power cable (C13-C14) - 1.83 m |
| Features: | Trusted Platform Module (TPM) |
| Compliant Standards: | WEEE 2002/95/EC |
| Included Accessories: | 7 hot-plug redundant fans |
| Pricing Type: | BTO |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Voltage Required: | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided: | 500 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Software / System Requirements | |
| Storage Operating System: | Microsoft Windows Storage Server IoT 2022 Standard |
| Software Included: | HPE StoreEasy Management Console |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 90% RH (non-condensing) |
| Sound Emission: | 36 dBA |
Every day, your organization faces challenges. Why should file storage be one of them? HPE StoreEasy 1000 Storage with the HPE StoreEasy management console provides easy-to-manage centralized network attached storage (NAS) for securely storing documents, images, audio, and video files. HPE StoreEasy 1000 Storage offers flexible, efficient, and reliable file storage, right-sized for your organization's needs and budget, without compromising on quality or capabilities. It is available in a diverse range of form factors, capacities, and performance levels, and can help you get more out of your investment while you protect your indispensable digital assets in an evolving threat landscape. With that in mind, the HPE StoreEasy management console provides a simplified management experience developed by HPE that consolidates multiple interfaces, automates storage tasks, and centralizes monitoring. Now you can spend less time on your file storage and more time on your business.
- HPE StoreEasy 1000 Storage is built from industry-leading HPE ProLiant DNA and comes with pre-configured hardware and a Microsoft® Windows® Server IoT for Storage operating system. Get your NAS out of the box and online fast with tools that simplify installation and curb common configuration errors.
- Save storage space with built-in granular file deduplication and compression - even for very large files and volumes. Define and apply quotas in the StoreEasy management console to control consumption and alert admins to low capacity.
- Built from the world's most secure industry-standard servers, HPE StoreEasy 1000 Storage provides expanded security capabilities to help you protect your customers, your data, and your organization in an evolving threat landscape.
- HPE StoreEasy 1000 Storage increases uptime with standard features including nearly continuous health monitoring with HPE Active Health System, redundant components, file system online self-healing, online verification, and rapid repair that reduces downtime from file corruption.
The technical details come from 3rd party. edgemo is not responsible for any errors.
