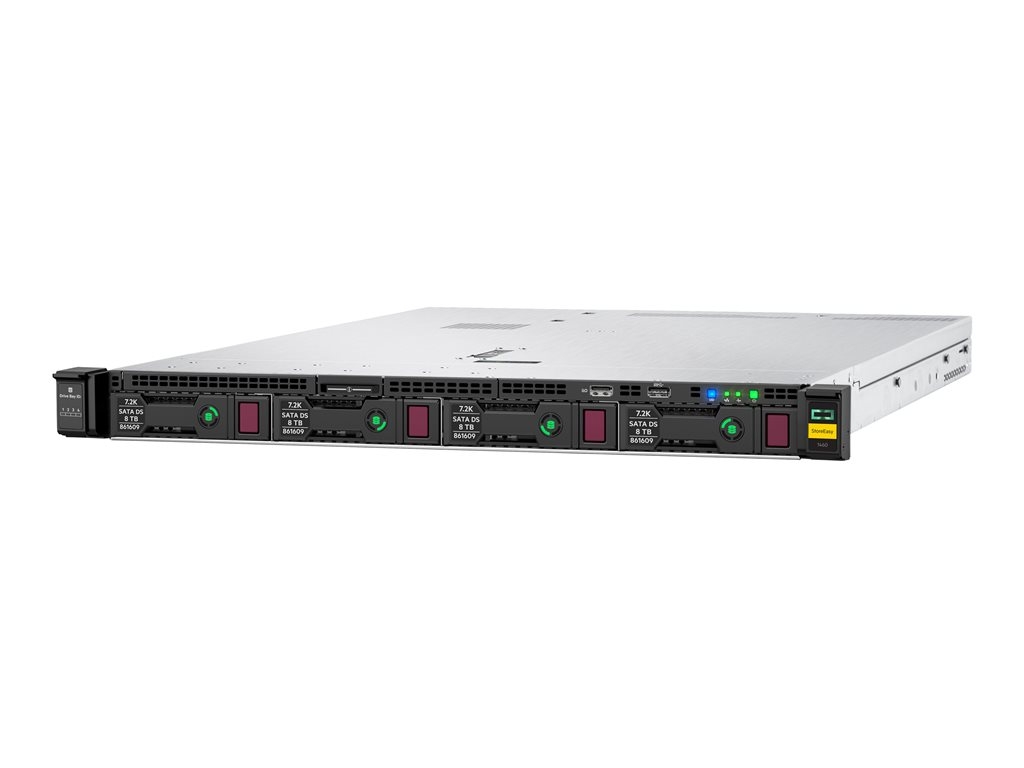

HPE StoreEasy 1460 - NAS server - 32 TB
SKU R7G18A
Product Description: | HPE StoreEasy 1460 - NAS server - 32 TB |
Device Type: | NAS server |
Host Connectivity: | Gigabit Ethernet |
Enclosure Type: | Rack-mountable - 1U |
Total Storage Capacity: | 32 TB |
Max Supported Capacity: | 32 TB |
Installed Devices / Modules Qty: | 4 (installed) / 4 (max) |
- Specifications
- Description
General | |
Device Type: | NAS server |
Host Connectivity: | Gigabit Ethernet |
Enclosure Type: | Rack-mountable - 1U |
Total Storage Capacity: | 32 TB |
Max Supported Capacity: | 32 TB |
Installed Devices / Modules Qty: | 4 (installed) / 4 (max) |
Width: | 43.46 cm |
Depth: | 74.98 cm |
Height: | 4.29 cm |
Weight: | 16.78 kg () |
Processor / Memory | |
Processors Installed: | 1 x Intel Xeon Bronze 3204 1.9 GHz |
Number of Cores: | 6-core |
Max Supported Qty: | 2 |
RAM: | 16 GB DDR4 |
Features: | Registered, HPE SmartMemory |
Storage Controller | |
Type: | RAID |
Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
Hard Drive | |
Type: | HDD - hot-swap - 3.5" LFF |
Capacity: | 4 x 8 TB |
Interface Type: | SATA 6Gb/s |
Data Transfer Rate: | 1.2 GBps |
Spindle Speed: | 7200 rpm |
Features: | Midline, Digitally Signed Firmware |
Networking | |
Data Link Protocol: | 10Mb LAN, 100Mb LAN, 1GbE |
Network Services Compatibility: | DNS, DHCP, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Server Message Block 2.0 (SMB 2.0) |
Expansion / Connectivity | |
Expansion Bays: | 4 (total) / 0 (free) x hot-swap - 3.5" LFF |
Expansion Slots: | 1 (total) / 1 (free) x PCI Express 3.0 x16 (three-quarter-length, full-height) ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 (three-quarter-length, full-height) ¦ 1 (total) / 1 (free) x FlexibleLOM ¦ 2 (total) / 1 (free) x CPU ¦ 24 (total) / 23 (free) x DIMM 288-pin |
Interfaces: | 4 x Ethernet 1000Base-T ¦ 1 x HPE iLO ¦ 2 x USB 3.0 ¦ 1 x VGA ¦ 1 x HPE iLO (management) |
Miscellaneous | |
Features: | Trusted Platform Module (TPM) 2.0 |
Compliant Standards: | WEEE 2002/95/EC |
Included Accessories: | 5 x hot-plug redundant fans, rack rail kit |
Power | |
Power Device: | Internal power supply - hot-plug |
Installed Qty: | 1 |
Max Supported Qty: | 2 |
Power Redundancy: | Optional |
Power Redundancy Scheme: | 1+1 (with optional power supply) |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 500 Watt |
80 PLUS Certification: | 80 PLUS Platinum |
Software / System Requirements | |
Storage Operating System: | Microsoft Windows Storage Server IoT 2019 Standard |
Software Included: | HPE iLO Advanced Premium Security Edition with 1 Year Support |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Limited warranty - software - 90 days |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 8 - 90% (non-condensing) |
HPE StoreEasy 1460 Storage solutions deliver multi-protocol file serving and application storage in a compact and affordable 1U rack-mount form factor that's perfect for a small workgroup, small business, or remote office.
