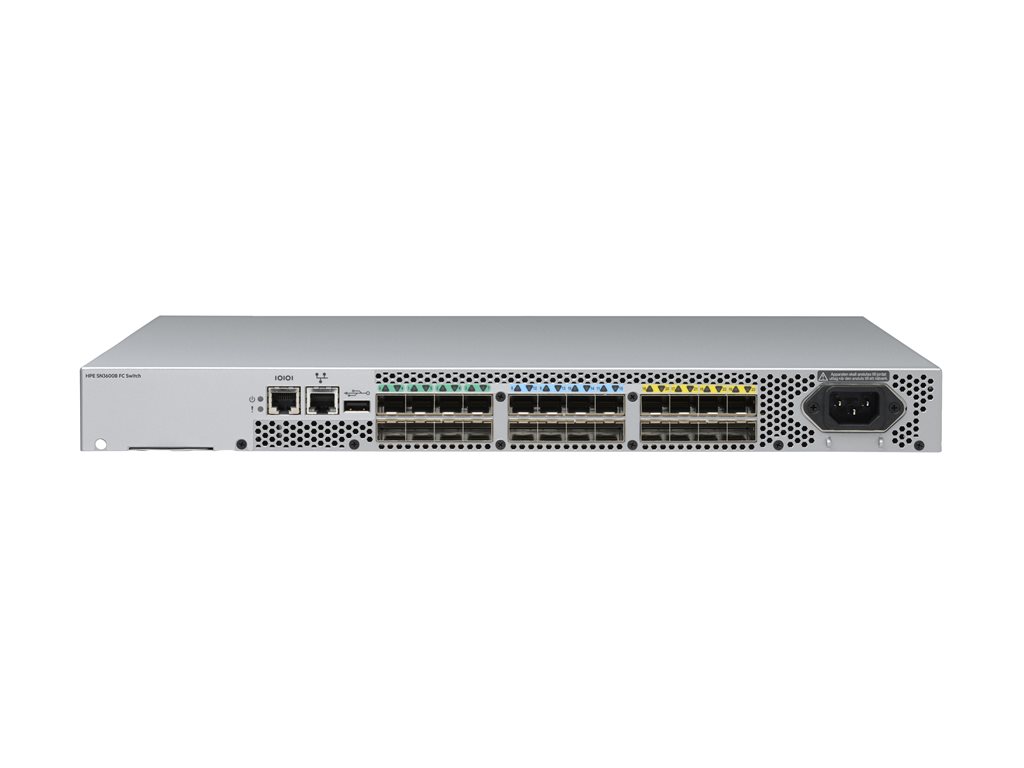

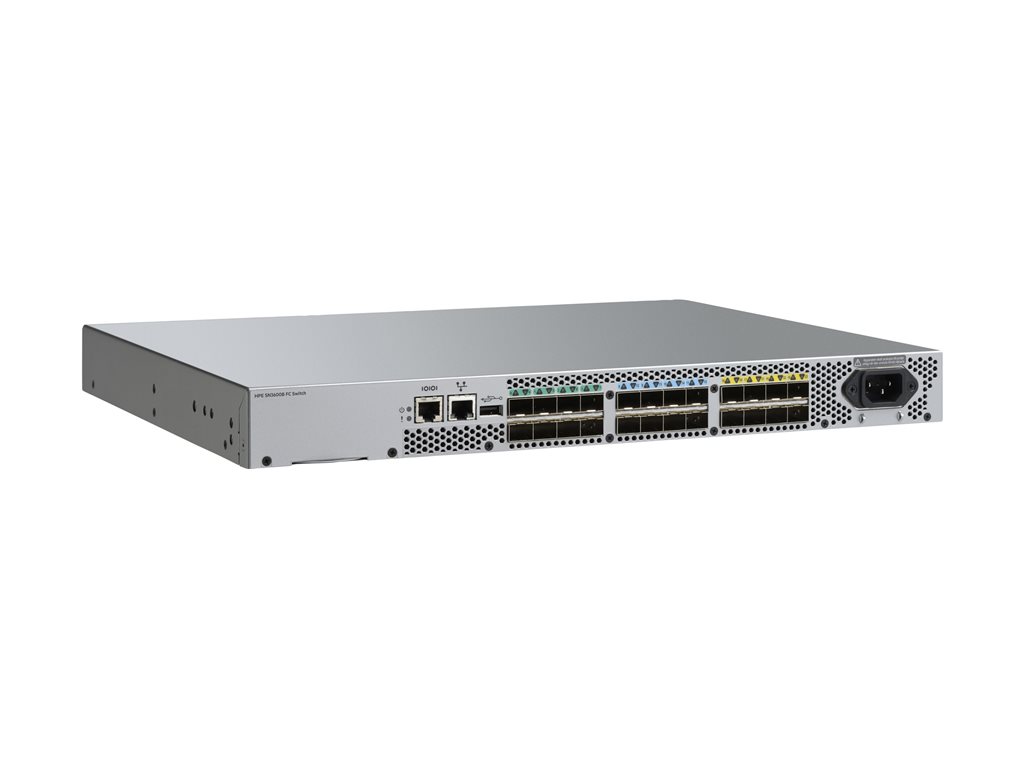

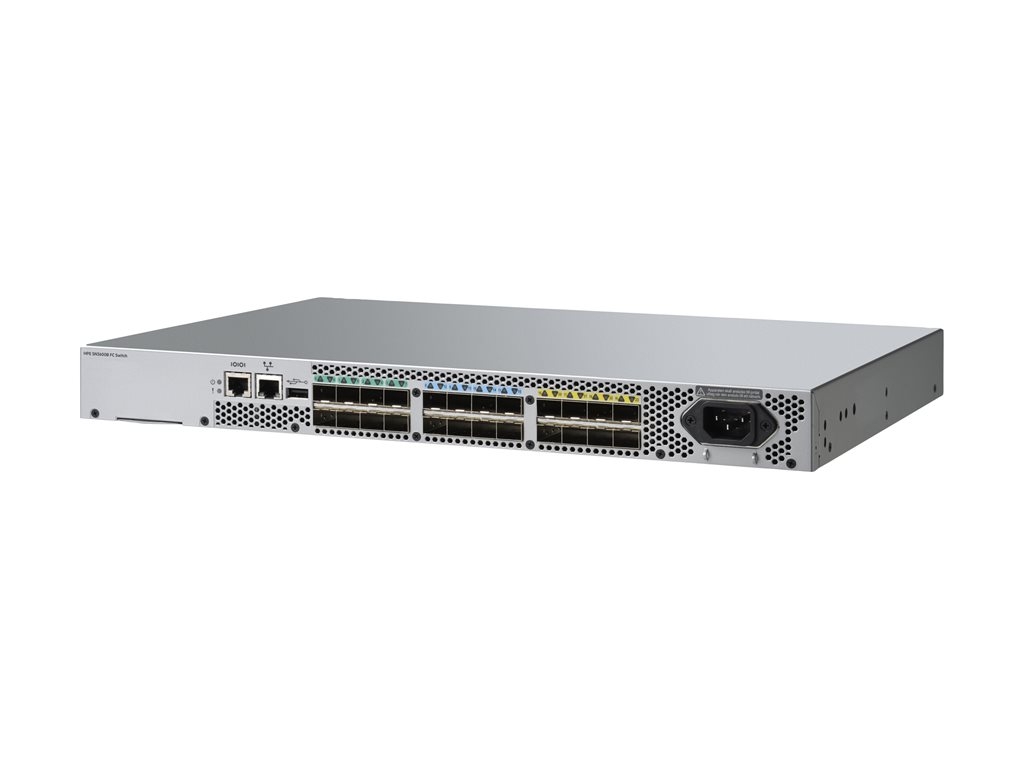

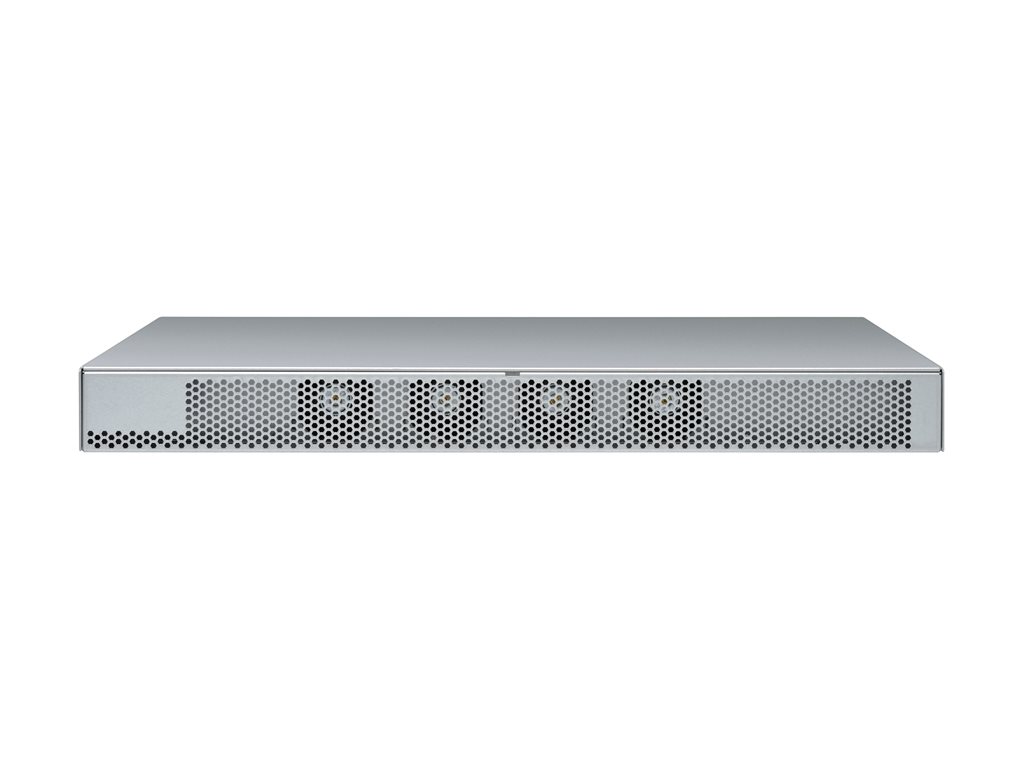

HPE SN3600B 32Gb 24/8 8-port 16Gb Short Wave SFP+ Fibre Channel Switch - switch - 24 ports - Managed - rack-mountable
SKU R4G55B
Product Description: | HPE SN3600B 32Gb 24/8 8-port 16Gb Short Wave SFP+ Fibre Channel Switch - switch - 24 ports - Managed - rack-mountable |
Device Type: | Switch - 24 ports - Managed |
Enclosure Type: | Rack-mountable 1U |
Subtype: | Fibre Channel |
Ports: | 8 x 16Gb Fibre Channel SFP+ + 16 x 32Gb Fibre Channel SFP+ Ports on Demand |
Performance: | Port-to-port latency: 900 ns |
Capacity: | Maximum frame size: 2112 ¦ Frame buffers: 2000 |
- Specifications
- Description
General | |
Device Type: | Switch - 24 ports - Managed |
Enclosure Type: | Rack-mountable 1U |
Subtype: | Fibre Channel |
Ports: | 8 x 16Gb Fibre Channel SFP+ + 16 x 32Gb Fibre Channel SFP+ Ports on Demand |
Performance: | Port-to-port latency: 900 ns |
Capacity: | Maximum frame size: 2112 ¦ Frame buffers: 2000 |
Remote Management Protocol: | HTTP, SNMP 1, SNMP 3, HTTPS, CLI, LDAP, SSH, SSH-2, SFTP, SMI-S |
Encryption Algorithm: | SSL |
Authentication Method: | DH-CHAP, FCAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+, LDAP |
Features: | IPv6 support, RBAC, SCP, Trusted Switch, Secure RPC, Syslog support, IP address filtering |
Status Indicators: | Power, status |
Expansion / Connectivity | |
Interfaces: | 8 x 16Gb Fibre Channel SFP+ short wave ¦ 16 x 32Gb Fibre Channel SFP+ Ports on Demand ¦ 1 x serial (RS-232) ¦ 1 x management (Gigabit LAN) ¦ 1 x USB |
Power | |
Power Device: | Internal power supply |
Voltage Required: | AC 90-264 V (50/60 Hz) |
Miscellaneous | |
Rack Mounting Kit: | Included |
Software / System Requirements | |
Software Included: | Advanced Zoning, Advanced Web Tools, Advanced Fabric OS |
Dimensions & Weight | |
Width: | 42.88 cm |
Depth: | 30.66 cm |
Height: | 4.29 cm |
Weight: | 5.76 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - lifetime |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 85% (non-condensing) |
Min Storage Temperature: | -25 °C |
Max Storage Temperature: | 70 °C |
Humidity Range Storage: | 10 - 90% (non-condensing) |
Are you struggling to meet the I/O demands of hyperscale virtualization, cloud, or growing flash-based SANs? HPE Storage Fibre Channel Switch B-series SN3600B provides Gen6 32Gb Fibre Channel (FC) in an ultra-dense 1U format from 8-ports up to 24-ports, and is affordable for limited budgets. It can replace three generations of FC with its backward compatibility with 4, 8, and 16Gb FC for your investment protection. Designed to build a flash-ready infrastructure, it specifically adapts to business application needs. Applications requiring more throughput and lower latency can also take advantage of NVMe over FC ready support. SAN simplicity is achieved with a simple 3-step install process and SAN deployments with HPE 3PAR all-flash storage are automated using HPE Smart SAN for HPE 3PAR software. Data reliability is enhanced with forward error correction (FEC) by automatically detecting and recovering bit error along with HPE Power Pack+ software, which maintains efficient SAN-health.
- The HPE Storage Fibre Channel Switch B-series SN3600B delivers exceptional price-performance in an entry-level Gen6 FC switch.
- The HPE Storage Fibre Channel Switch B-series SN3600B provides market-leading Gen6 32Gb throughput and low latency in an affordable 1U form factor.
- The HPE Storage Fibre Channel Switch B-series SN3600B can easily be installed and configured and simplifies SAN configuration in an easy 3-step process.
