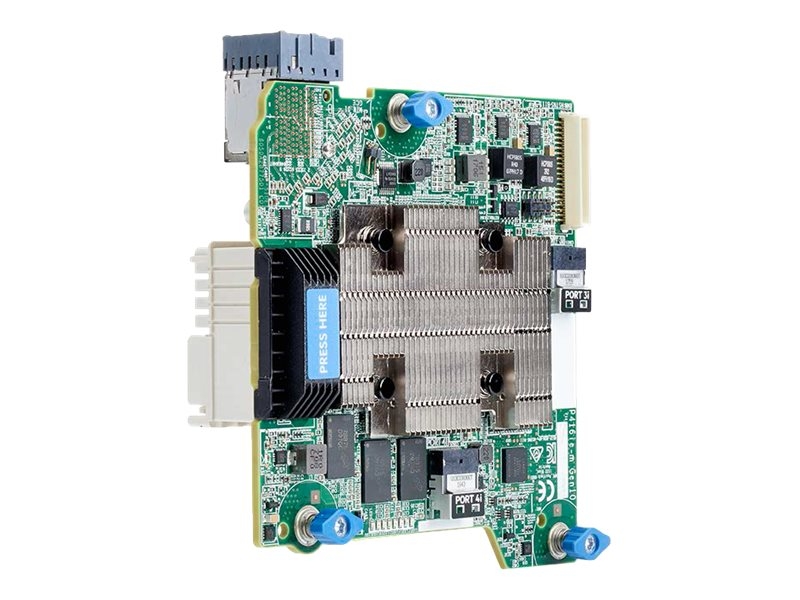

Printers & POSHPE Smart Array P416ie-m SR Gen10 - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
SKU 804428-B21
| Product Description: | HPE Smart Array P416ie-m SR Gen10 - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8 |
| Device Type: | Storage controller (RAID) - plug-in card |
| Bus Type: | PCIe 3.0 x8 |
| Interface: | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Buffer Size: | 2 GB |
| Supported Devices: | Hard drive, disk array (RAID) |
- Specifications
- Description
| General | |
| Device Type: | Storage controller (RAID) - plug-in card |
| Host Bus: | PCIe 3.0 x8 |
| Storage Controller | |
| Interface: | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Buffer Size: | 2 GB |
| Supported Devices: | Hard drive, disk array (RAID) |
| Channel Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Maximum LUNs: | 64 |
| Expansion / Connectivity | |
| Interfaces: | 2 x SATA 6Gb/s / SAS 12Gb/s (internal) |
| Miscellaneous | |
| Features: | Flash Backed Write Cache (FBWC) |
| Compliant Standards: | FIPS 140-2 Level 1 |
| Software / System Requirements | |
| OS Required: | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server |
| Compatibility Information | |
| Designed For: | HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 ¦ HPE ProLiant DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice ¦ HPE Synergy 480 Gen10 Base Compute Module, 480 Gen10 Compute Module, 480 Gen10 Entry Compute Module, 480 Gen10 Performance Compute Module, 480 Gen10 Premium Backplane Compute Module, 480 Gen10 Standard BackPlane Compute Module, 480 Gen10 w/o Drives Compute Module, 660 Gen10 Base Compute Module, 660 Gen10 Compute Module, 660 Gen10 Entry Compute Module, 660 Gen10 Performance Compute Module, 660 Gen10 Premium Compute Module |
Are you looking for an enterprise-level controller to maximize performance and storage capacity? The HPE Smart Array P416ie-m SR Gen10 Controller provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. It has eight internal SAS lanes and eight external SAS lanes, allowing connection to the SAS or SATA drives in the Synergy compute module. This controller supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at rest on any drive.
- The HPE Smart Array P416ie-m SR Gen10 Controller is an enterprise-class controller that increases performance in messaging, database, or general server applications and delivers 12 Gb/s SAS connectivity on HPE Synergy Gen10 Compute Modules when connected to 12 Gb/s internal storage devices.
- The HPE Smart Array P416ie-m SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).
- The HPE Smart Array P416ie-m SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously.
The technical details come from 3rd party. edgemo is not responsible for any errors.
