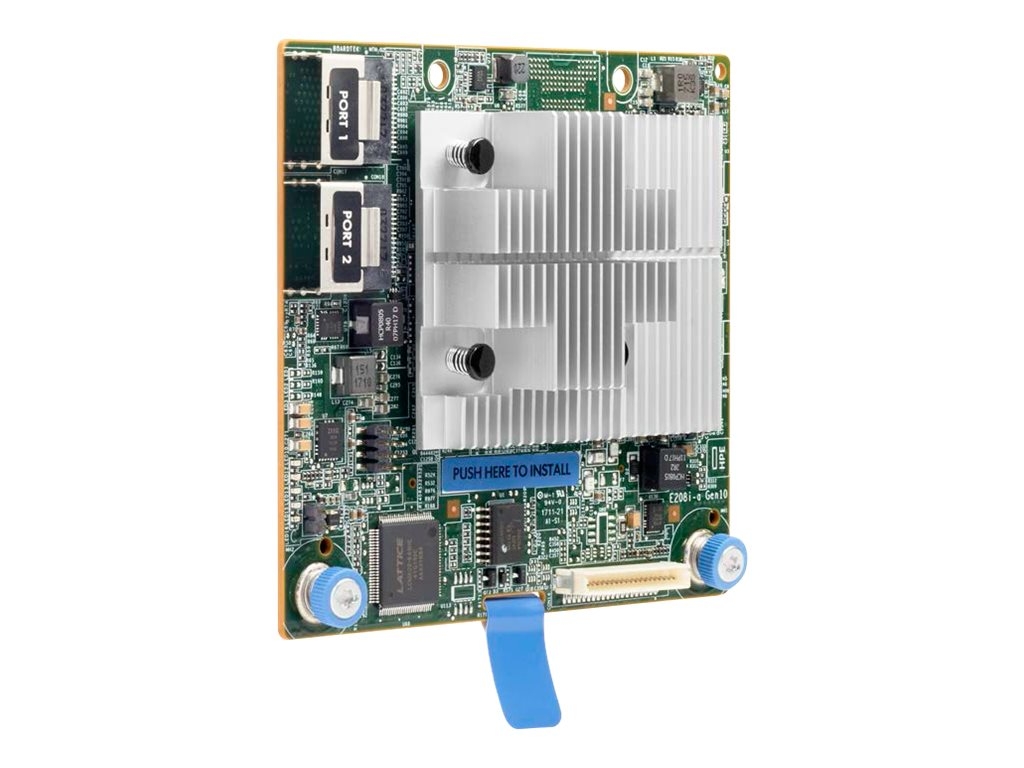

Printers & POSHPE Smart Array E208i-a SR Gen10 - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
SKU 869079-B21
| Product Description: | HPE Smart Array E208i-a SR Gen10 - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8 |
| Device Type: | Storage controller (RAID) - plug-in card |
| Bus Type: | PCIe 3.0 x8 |
| Features: | Low profile heatsink |
| Interface: | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Hard drive, disk array (RAID) |
- Specifications
- Description
| General | |
| Device Type: | Storage controller (RAID) - plug-in card |
| Host Bus: | PCIe 3.0 x8 |
| Features: | Low profile heatsink |
| Storage Controller | |
| Interface: | SATA 6Gb/s / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Hard drive, disk array (RAID) |
| Channel Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Maximum LUNs: | 64 |
| Expansion / Connectivity | |
| Interfaces: | 2 x SATA 6Gb/s / SAS 12Gb/s (internal) |
| Miscellaneous | |
| Compliant Standards: | FIPS 140-2 Level 1 |
| Software / System Requirements | |
| OS Required: | Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server |
| Compatibility Information | |
| Designed For: | HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for HPE Ezmeral Container Platform, 4200 Gen10 for HPE Ezmeral Tracking ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL160 Gen10, DL160 Gen10 Base, DL160 Gen10 Entry, DL160 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 Performance, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL365 Gen10 Plus, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice |
The HPE Smart Array E208i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 and Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class reliability, security and efficiency needed to address your evolving data storage needs.
- The HPE Smart Array E208i-a SR Gen10 Controller is a cost effective enterprise-class controller that provides the basic building blocks for simple RAID storage solutions while delivering 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s internal storage devices.
- The HPE Smart Array E208i-a SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).
- The HPE Smart Array E208i-a SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.
The technical details come from 3rd party. edgemo is not responsible for any errors.
