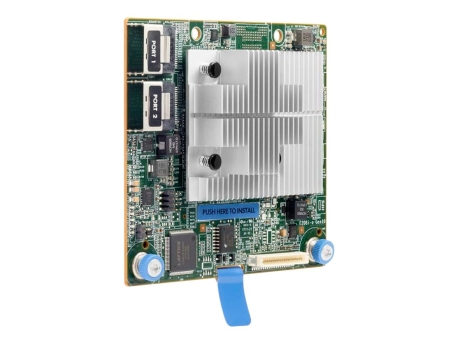

HPE Smart Array E208i-a SR Gen10 - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8

SKU 804326-B21
Product Description:HPE Smart Array E208i-a SR Gen10 - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
Device Type:Storage controller (RAID) - plug-in card
Bus Type:PCIe 3.0 x8
Interface:SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate:12 Gbit/s
Supported Devices:Hard drive, disk array (RAID)
Channel Qty:8
08-05-2024
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Storage controller (RAID) - plug-in card
Host Bus:PCIe 3.0 x8
Storage Controller
Interface:SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate:12 Gbit/s
Supported Devices:Hard drive, disk array (RAID)
Channel Qty:8
RAID Level:RAID 0, RAID 1, RAID 5, RAID 10
Maximum LUNs:64
Expansion / Connectivity
Interfaces:2 x SATA 6Gb/s / SAS 12Gb/s (internal)
Miscellaneous
Compliant Standards:FIPS 140-2 Level 1
Software / System Requirements
OS Required:Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
Compatibility Information
Designed For:HPE Apollo 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4200 Gen10 for BlueData Software, 4200 Gen10 for HPE Ezmeral Container Platform ¦ HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 ¦ HPE ProLiant DL180 Gen10 Base, DL180 Gen10 Entry, DL180 Gen10 SMB, DL345 Gen10 Plus Base, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 Network Choice for SAP HANA Compute Block, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL385 Gen10, DL385 Gen10 High-Performance, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, ML350 Gen10 High Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, XL450 Gen10 200TB Server for Cohesity DataPlatform, XL450 Gen10 400TB Server for Cohesity DataPlatform, XL450 Gen10 700TB Server for Cohesity DataPlatform, XL675d Gen10 Plus
vis mere
The HPE Smart Array E208i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 and Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class reliability, security and efficiency needed to address your evolving data storage needs.
  • Storage interface(SAS/SATA)
  • PCI Express 3.0 x8 link
  • RAID 0, 1, 5, 10
  • Mixed Mode(RAID logic drives and HBA physical drives simultaneously)
  • Legacy and UEFI boot operation
  • UEFI System Utilities(storage configuration)
  • Up to 238 physical drives
  • Up to 64 logical drives
  • HPE Smart Array SR Secure Encryption(optional license)
  • HPE SSD Smart Path
  • Rapid Parity Initialization(RPI)
  • Rapid rebuild
  • Drive Sanitize
  • Performance Optimization-Degraded Reads and Read Coalescing
  • Power efficiency
  • Seamless upgrades from HPE Smart Array Software RAID
  • Seamless upgrades to HPE Smart Array P-class Controllers




The technical details come from 3rd party. edgemo is not responsible for any errors.
