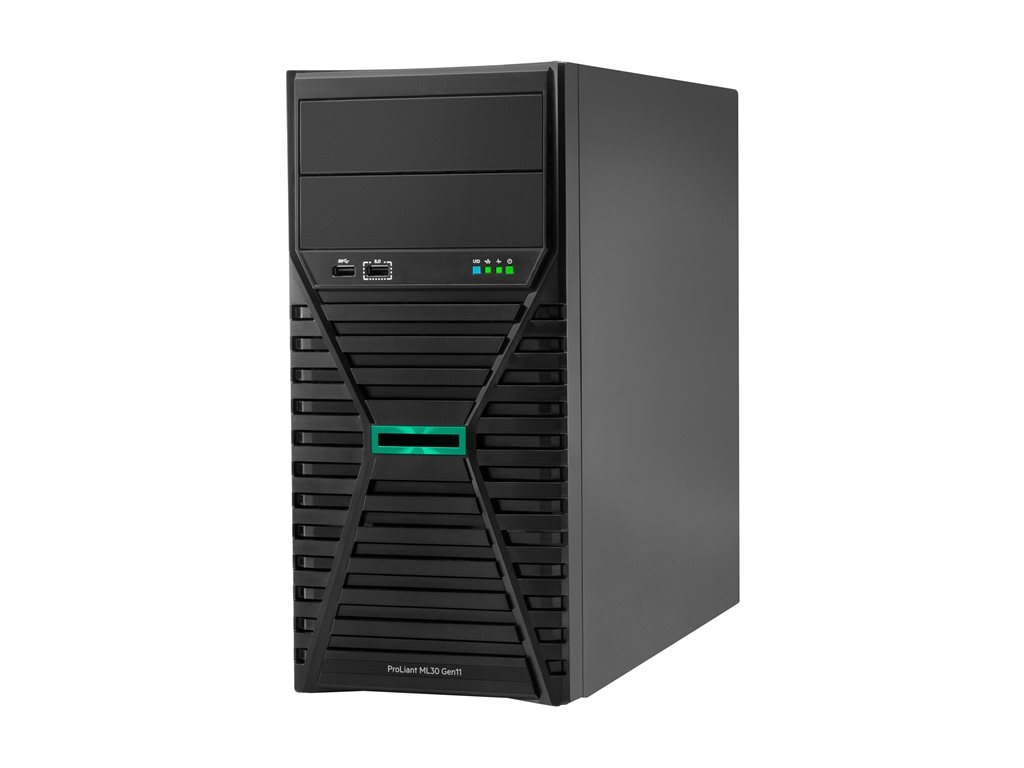

HPE ProLiant ML30 Gen11 - tower Xeon E-2436 2.9 GHz - 32 GB - SSD 2 x 480 GB

SKU P81773-425

Product Description:	HPE ProLiant ML30 Gen11 - tower Xeon E-2436 2.9 GHz - 32 GB - SSD 2 x 480 GB
Type:	Server - tower
Height (Rack Units):	4U
Localisation:	Region: Europe
Server Scalability:	1-way
Processor:	1 x Intel Xeon E-2436 / 2.9 GHz (up to 5 GHz, (6-core)
Processor Main Features:	Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 65W TDP

13-05-2025

Login for price

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Tower - 4U
Built-in Devices:	Led panel
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:	1-way
Hot-Swap Bays Qty:	8
Localisation:	Region: Europe

Processor / Chipset
CPU:	Intel Xeon E-2436
Clock Speed:	2.9 GHz
Max Turbo Speed:	5 GHz
Number of Cores:	6-core
CPU Qty:	1
Max CPU Qty:	1
CPU Upgradability:	Upgradable
Processor Main Features:	Intel Turbo Boost Technology 2, Hyper-Threading Technology, Intel Smart Cache, 65W TDP
Chipset Type:	Intel C262

Cache Memory
Installed Size:	L3 Cache - 18 MB
Cache Per Processor:	18 MB

RAM
Installed Size:	32 GB (installed) / 128 GB (max)
Technology:	DDR5 SDRAM - ECC
Rated Memory Speed:	2400 MHz
Form Factor:	DIMM 288-pin
Slots:	4 (Total) / 3 (empty)
Features:	Unbuffered, HPE Standard Memory
Configuration Features:	1 x 32 GB

Hard Drive
Type:	SSD
Capacity:	2 x 480 GB
Interface Type:	SATA 6Gb/s
Features:	HPE Multi Vendor, Read Intensive

Storage Controller
Type:	1 x RAID
Controller Interface Type:	Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Storage Controller Name:	HPE MR216i-p Gen11 SPDM
Channel Qty:	16
RAID Level:	RAID 0, RAID 1, RAID 10

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Video Memory:	16 MB
Video Interfaces:	DisplayPort, VGA

Networking
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Broadcom BCM5719
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller:	Integrated Lights-Out 6
Features:	PXE support, Wake on LAN (WoL)

Expansion / Connectivity
Bays:	8 (total) / 6 (free) x hot-swap 2.5" SFF
Slots:	1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode, processor) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (x4 mode, processor) ¦ 2 (total) / 1 (free) x PCIe 4.0 x8 - half-length, full-height (x4 mode, PCH) ¦ 1 (total) / 1 (free) x M.2 Card
Interfaces:	1 x DisplayPort ¦ 1 x VGA ¦ 3 x LAN (Gigabit Ethernet) - RJ-45 (3 rear) ¦ 1 x HPE iLO - Type A (1 front) (service port) ¦ 5 x USB 3.2 Gen 1 (1 front, 4 rear) ¦ 1 x LAN (Gigabit Ethernet) / HPE iLO - RJ-45 (1 rear)

Miscellaneous
Included Accessories:	Non-hot plug non-redundant system fan
Theft/Intrusion Protection:	Security lock slot (cable lock sold separately), padlock eye
Security Slot Type:	Kensington security slot
Compliant Standards:	ACPI 6.3, UEFI 2.9, Redfish API, AES, Triple DES, TLS v1.2, Active Directory v1.0, ASHRAE Class A4, ASHRAE Class A3, EU Lot 9

Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Yes
Power Redundancy Scheme:	1+1
Installed Qty:	2
Max Supported Qty:	2
Power Provided:	800 Watt
80 PLUS Certification:	80 PLUS Titanium

Operating System / Software
Software:	HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)

Sustainability Information
ENERGY STAR Certified:	Yes
ENERGY STAR Version:	4.0

Manufacturer Warranty
Service & Support:	Limited warranty - parts - 3 years - on-site - response time: next business day ¦ Limited warranty - parts and labour - 1 year - on-site - response time: next business day

Dimensions & Weight
Width:	17.53 cm
Depth:	47.5 cm
Height:	36.83 cm
Weight:	12.5 kg

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C
Humidity Range Operating:	8 - 90% RH (non-condensing)

The technical details come from 3rd party. edgemo is not responsible for any errors.
