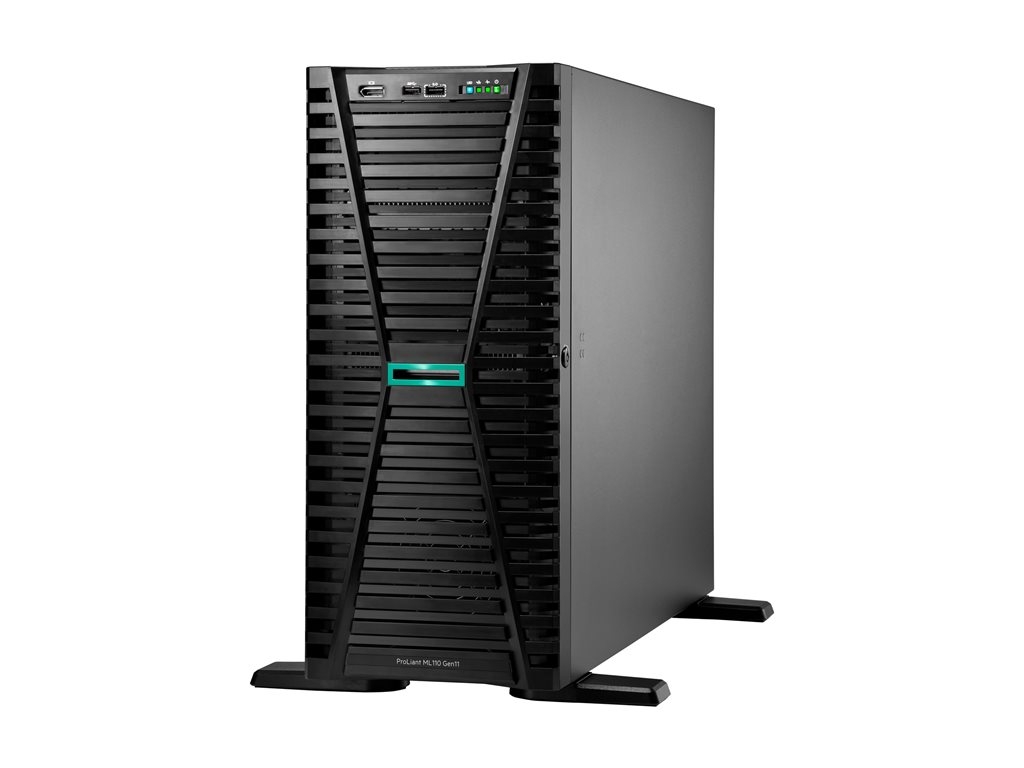

Printers & POSHPE ProLiant ML110 Gen11 - tower Xeon Bronze 3508U 2.1 GHz - 32 GB - SSD 2 x 480 GB
SKU P81774-425
| Product Description: | HPE ProLiant ML110 Gen11 - tower Xeon Bronze 3508U 2.1 GHz - 32 GB - SSD 2 x 480 GB |
| Type: | Server - tower |
| Height (Rack Units): | 4.5U |
| Localisation: | Region: Europe |
| Server Scalability: | 1-way |
| Processor: | 1 x Intel Xeon Bronze 3508U / 2.1 GHz (up to 2.2 GHz, (8-core) |
| Processor Main Features: | Intel Turbo Boost Technology 2, 125W TDP |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Tower - 4.5U |
| Built-in Devices: | Led panel |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 1-way |
| Front Accessible Bays Qty: | 1 |
| Hot-Swap Bays Qty: | 8 |
| Localisation: | Region: Europe |
| Processor / Chipset | |
| CPU: | Intel Xeon Bronze 3508U |
| Clock Speed: | 2.1 GHz |
| Max Turbo Speed: | 2.2 GHz |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| Processor Main Features: | Intel Turbo Boost Technology 2, 125W TDP |
| Chipset Type: | Intel C741 |
| Cache Memory | |
| Installed Size: | L3 Cache - 22.5 MB |
| Cache Per Processor: | 22.5 MB |
| RAM | |
| Installed Size: | 32 GB (installed) / 1 TB (max) |
| Technology: | DDR5 SDRAM - ECC |
| Effective Memory Speed: | 2200 MHz |
| Rated Memory Speed: | 2800 MHz |
| Form Factor: | DIMM 288-pin |
| Slots: | 16 (Total) / 15 (empty) |
| Features: | Registered, HPE SmartMemory |
| Configuration Features: | 1 x 32 GB |
| Hard Drive | |
| Type: | SSD |
| Capacity: | 2 x 480 GB |
| Interface Type: | SATA 6Gb/s |
| Features: | Read Intensive, HPE Multi Vendor |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA-600 / NVMe |
| Storage Controller Name: | Intel VROC SATA Software RAID |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Video Memory: | 16 MB |
| Video Interfaces: | DisplayPort, VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Broadcom BCM5720 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | IPMI 2.0, SMASH CLP, SNMP 3 |
| Remote Management Controller: | Integrated Lights-Out 6 |
| Features: | PXE support, Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Bays: | 1 (total) / 1 (free) x external 5.25" ¦ 8 (total) / 6 (free) x hot-swap 2.5" SFF |
| Slots: | 2 (total) / 2 (free) x PCIe 5.0 x16 ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces: | 1 x DisplayPort 1.1a ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) ¦ 1 x USB 2.0 (1 internal) |
| Miscellaneous | |
| Included Accessories: | 2 x standard fans |
| Compliant Standards: | ACPI 6.4, SMBIOS 3.4, UEFI 2.7, UEFI Class 3, Redfish API, AES, Triple DES, TLS v1.2, ASHRAE Class A3, ASHRAE Class A4, APML, Active Directory v1.0, MCTP |
| Power | |
| Device Type: | Power supply - hot-plug |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 100-120/200-240 V |
| Power Provided: | 1000 Watt |
| 80 PLUS Certification: | 80 PLUS Titanium |
| Operating System / Software | |
| Software: | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download) |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 4.0 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width: | 19.5 cm |
| Depth: | 58.7 cm |
| Height: | 46.2 cm |
| Weight: | 20.1 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 90% RH (non-condensing) |
The HPE ProLiant ML110 Gen11 offers a solution for businesses seeking a reliable tower server. Equipped with an Intel Xeon Bronze processor featuring 8 cores, this server is designed to handle demanding workloads with efficiency and speed. The integrated RAM technology utilizes DDR5 SDRAM, ensuring smooth multitasking and responsiveness. With a total of 16 RAM slots, there is room for future upgrades, making it a scalable option for growing businesses.
The server incorporates a hot-swap storage bay for easy maintenance and minimal downtime. It also features advanced remote management capabilities with Integrated Lights-Out 6, allowing for server management from anywhere. The inclusion of dual Gigabit Ethernet ports ensures seamless networking and connectivity, allowing businesses to stay connected and operational.
The server incorporates a hot-swap storage bay for easy maintenance and minimal downtime. It also features advanced remote management capabilities with Integrated Lights-Out 6, allowing for server management from anywhere. The inclusion of dual Gigabit Ethernet ports ensures seamless networking and connectivity, allowing businesses to stay connected and operational.
- Efficient Intel Xeon Bronze processor with 8 cores
- Hot-swap storage bays for easy maintenance
- Ample expandability with 16 RAM slots
- Integrated Lights-Out 6 for remote server management
- Dual Gigabit Ethernet ports for robust connectivity
The technical details come from 3rd party. edgemo is not responsible for any errors.
