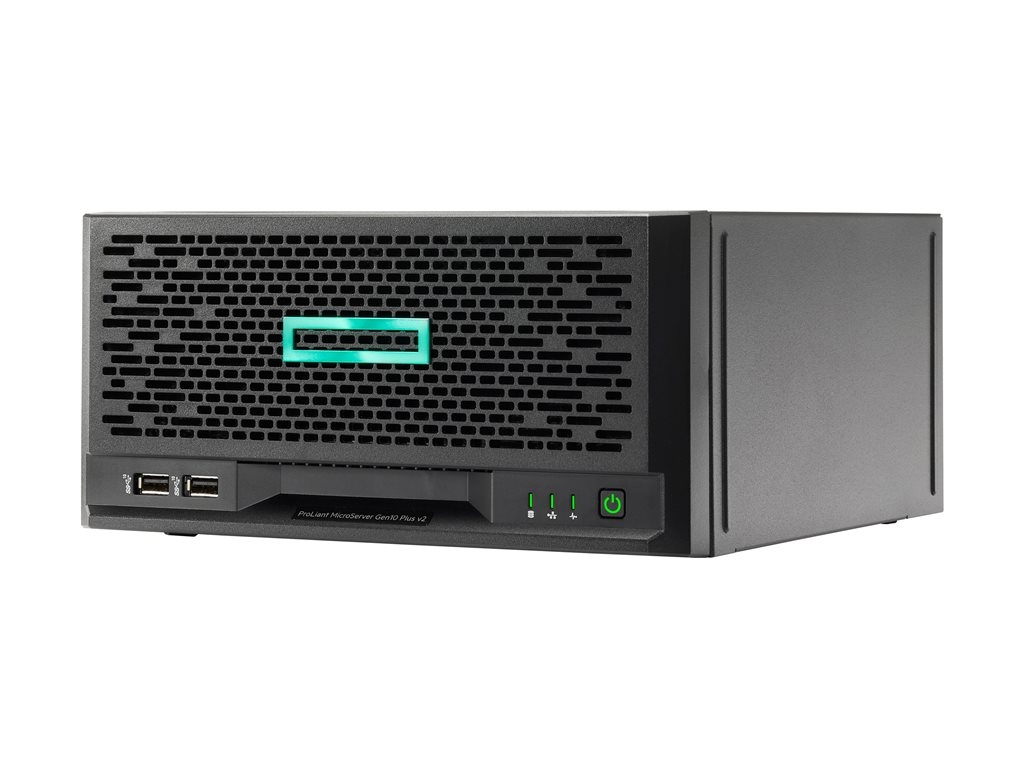

HPE ProLiant MicroServer Gen10 Plus v2 Entry - ultra micro tower Pentium Gold G6405 4.1 GHz - 16 GB - no HDD

SKU P54644-421

Product Description:	HPE ProLiant MicroServer Gen10 Plus v2 Entry - ultra micro tower Pentium Gold G6405 4.1 GHz - 16 GB - no HDD
Type:	Server - ultra micro tower
Localisation:	Region: EMEA
Server Scalability:	1-way
Processor:	1 x Intel Pentium Gold G6405 / 4.1 GHz (Dual-Core)
Processor Socket:	LGA1200 Socket
Processor Main Features:	Hyper-Threading Technology, Intel Smart Cache

In Stock(4)

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Ultra micro tower
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:	1-way
Internal Bays Qty:	4
Localisation:	Region: EMEA

Processor / Chipset
CPU:	Intel Pentium Gold G6405
Clock Speed:	4.1 GHz
Number of Cores:	Dual-Core
CPU Qty:	1
Max CPU Qty:	1
CPU Upgradability:	Upgradable
Processor Main Features:	Hyper-Threading Technology, Intel Smart Cache
CPU Socket:	LGA1200 Socket
Chipset Type:	Intel C252

Cache Memory
Installed Size:	L3 Cache - 4 MB
Cache Per Processor:	4 MB

RAM
Installed Size:	16 GB (installed) / 64 GB (max)
Technology:	DDR4 SDRAM - ECC
Effective Memory Speed:	2666 MHz
Rated Memory Speed:	3200 MHz
Form Factor:	DIMM 288-pin
Slots:	2 (Total) / 1 (empty)
Features:	Unbuffered
Configuration Features:	1 x 16 GB

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x RAID
Controller Interface Type:	SATA 6Gb/s
Storage Controller Name:	Intel VROC SATA Software RAID
RAID Level:	RAID 0, RAID 1, RAID 5, RAID 10

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	Intel UHD Graphics 610
Video Interfaces:	DisplayPort, VGA

Networking
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Intel I350-AM4
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:	SNMP 3, IPMI 2.0, SMASH CLP
Features:	ACPI support, PXE support, Wake on LAN (WoL)

Expansion / Connectivity
Bays:	4 (total) / 4 (free) x internal 3.5" LFF
Slots:	1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile ¦ 1 (total) / 1 (free) x expansion slot (iLO Enablement Kit slot)
Interfaces:	1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 - Type A (3 rear, 1 internal) ¦ 2 x USB 3.2 Gen 2 - Type A (2 in front) ¦ 1 x USB 2.0 - Type A (1 rear) ¦ 4 x LAN (Gigabit Ethernet)

Miscellaneous
Theft/Intrusion Protection:	Security lock slot (cable lock sold separately), padlock loop
Security Slot Type:	Kensington security slot
Compliant Standards:	FCC Class B certified, CISPR 32, EN 55032, EN55024, FCC CFR47 Part 15, ICES-003, CNS 13438, GB 9254, K32, K24, EN 61000-3-2, EN 61000-3-3

Power
Device Type:	Power adapter
Voltage Required:	AC 100-240 V (50/60 Hz)
Power Provided:	180 Watt

Operating System / Software
OS Provided:	No operating system

Manufacturer Warranty
Service & Support:	Limited warranty - parts and labour - 1 year - on-site - response time: next business day

Dimensions & Weight
Width:	24.5 cm
Depth:	24.5 cm
Height:	11.89 cm
Weight:	4.23 kg

Environmental Parameters
Humidity Range Operating:	8 - 90% RH (non-condensing)
Sound Emission:	24 dBA

vis mere

Are you a small office, home office, or small business with branch offices looking to build a customized solution for your office? The HPE ProLiant MicroServer Gen10 Plus v2 server delivers an affordable compact yet powerful entry-level server that you can customize for on-premises or for hybrid cloud possibilities. It has the same compact form factor as the previous version and can be placed flat or vertically depending on your space. Powerful processors build compute performance as well as security and remote management into the server with HPE iLO Silicon Root of Trust from HPE iLO.

Powerful processors
Huge memory
PCIe expansion: PCIe Gen4
