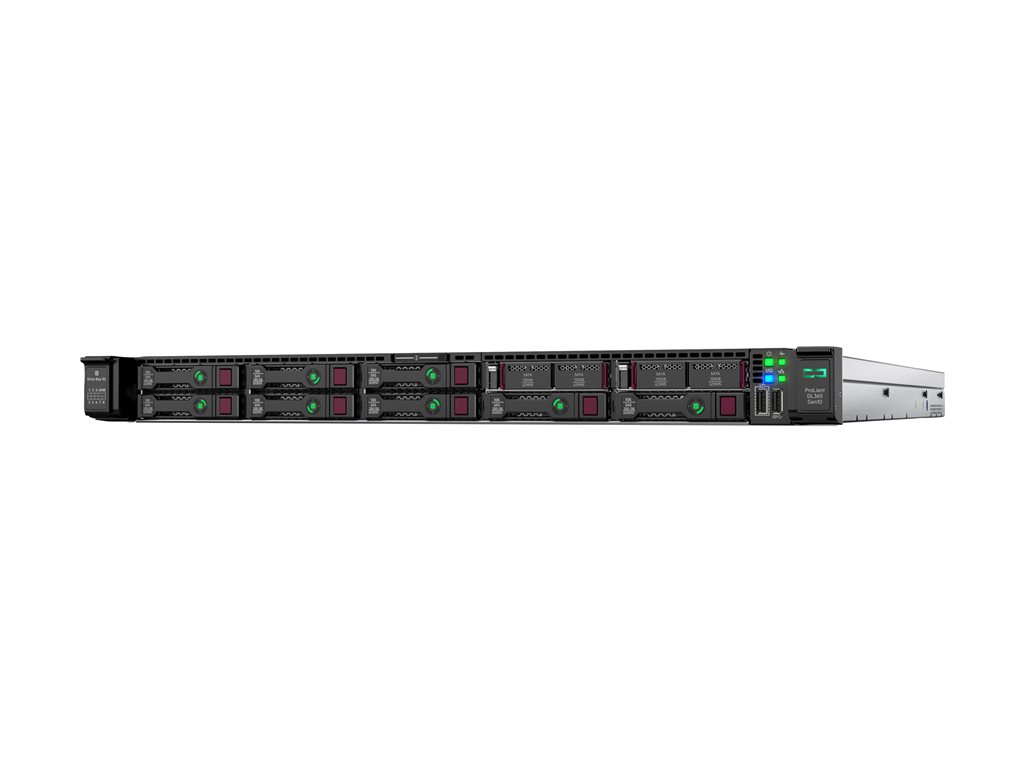

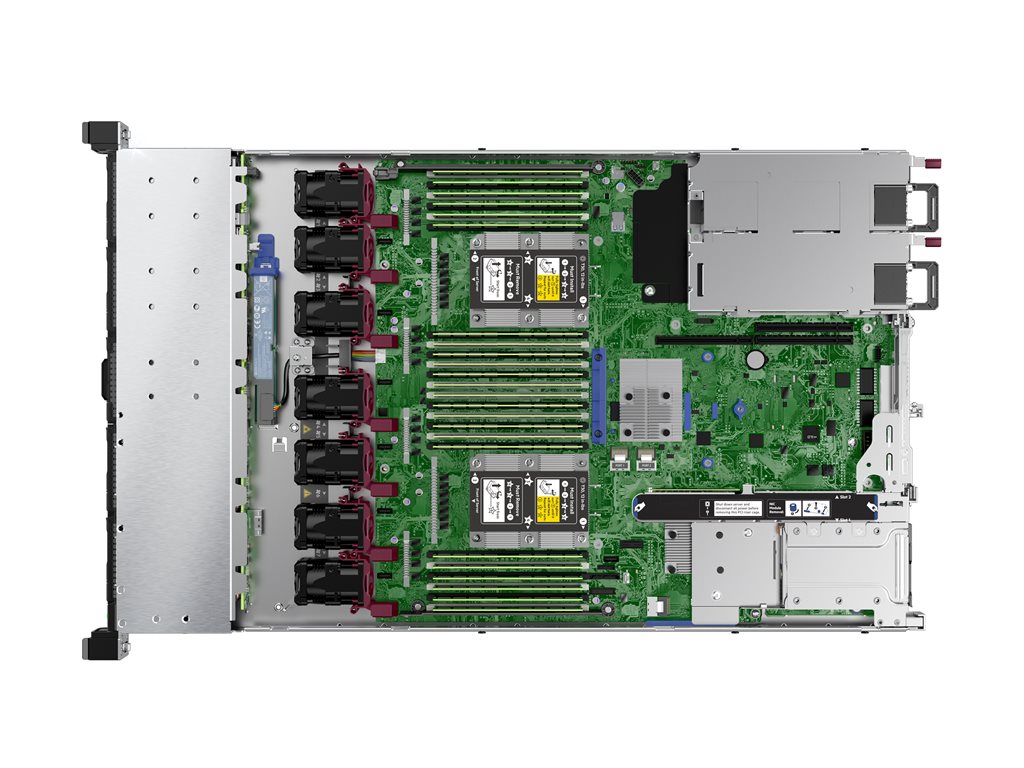

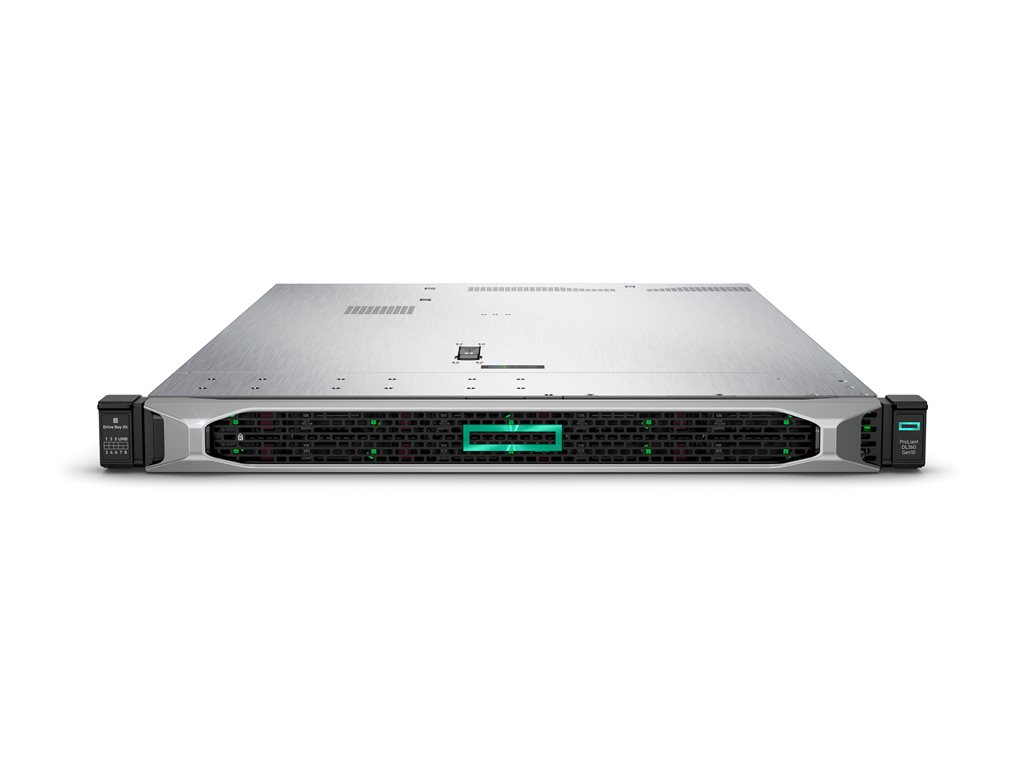

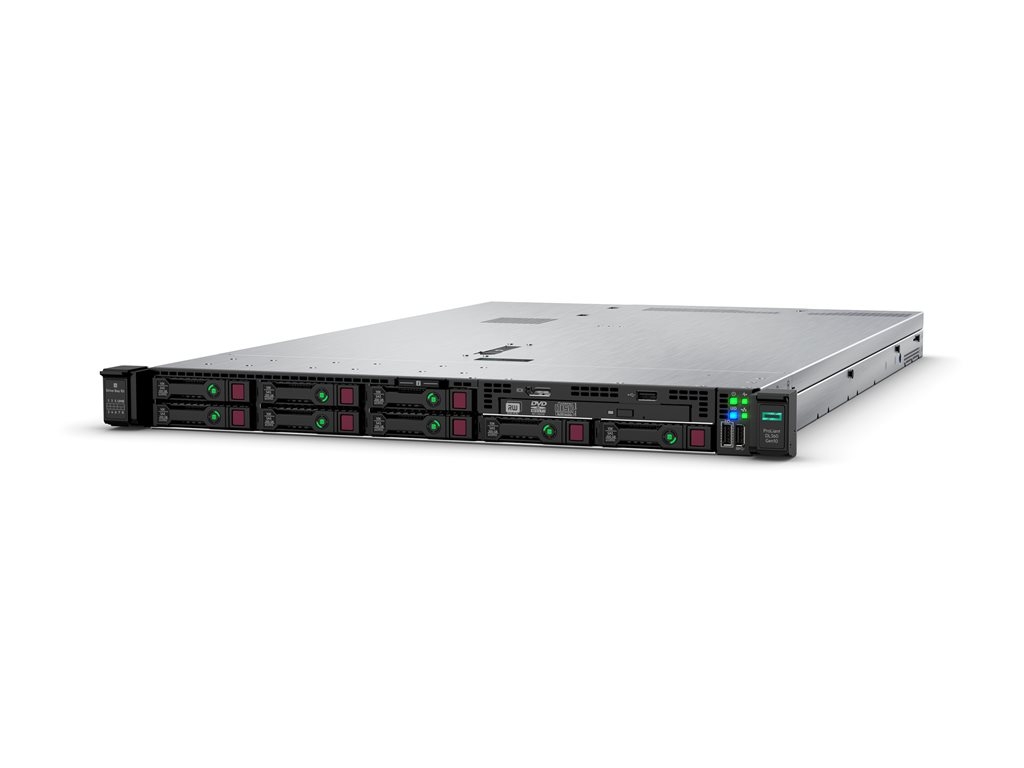

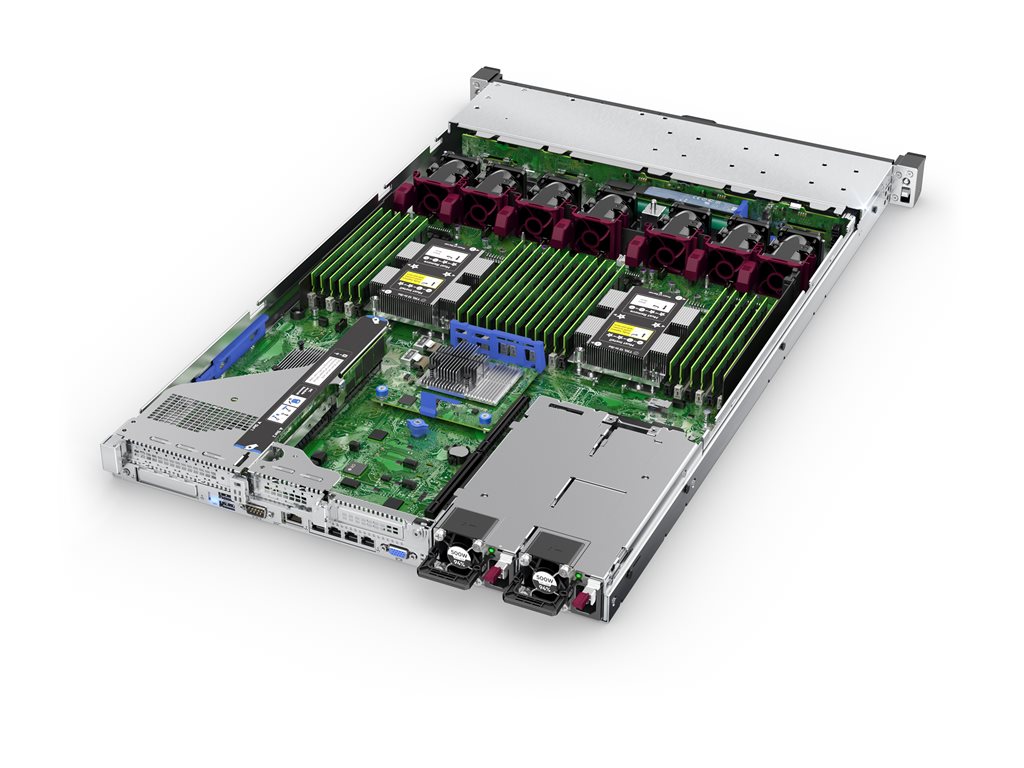

HPE ProLiant DL360 Gen10 - rack-mountable Xeon Silver 4208 2.1 GHz - 32 GB - no HDD
SKU P56955-421
Product Description: | HPE ProLiant DL360 Gen10 - rack-mountable Xeon Silver 4208 2.1 GHz - 32 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Localisation: | Region: EMEA |
Server Scalability: | 2-way |
Processor: | 1 x Intel Xeon Silver 4208 / 2.1 GHz (up to 3.2 GHz, (8-core) |
Processor Socket: | FCLGA3647 Socket |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Built-in Devices: | Led panel |
Server Scalability: | 2-way |
Hot-Swap Bays Qty: | 8 |
Localisation: | Region: EMEA |
Processor / Chipset | |
CPU: | Intel Xeon Silver 4208 |
Clock Speed: | 2.1 GHz |
Max Turbo Speed: | 3.2 GHz |
Number of Cores: | 8-core |
CPU Qty: | 1 |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
Processor Main Features: | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
CPU Socket: | FCLGA3647 Socket |
Chipset Type: | Intel C621 |
Cache Memory | |
Installed Size: | L3 Cache - 11 MB |
Cache Per Processor: | 11 MB |
RAM | |
Installed Size: | 32 GB (installed) / 1.54 TB (max) |
Technology: | DDR4 SDRAM - Advanced ECC |
Effective Memory Speed: | 2400 MHz |
Rated Memory Speed: | 2933 MHz |
Memory Specification Compliance: | PC4-23466 |
Form Factor: | DIMM 288-pin |
Slots: | 12 (Total) / 11 (empty) |
Features: | Registered, Online Spare Memory, dual rank, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, 6-channel memory architecture |
Configuration Features: | 1 x 32 GB |
RAM Supported: | 3 TB Load-Reduced ¦ 1.54 TB registered ¦ 192 GB Non-Volatile |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x RAID |
Controller Interface Type: | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
Storage Controller Name: | Broadcom MegaRAID MR416i-a |
Channel Qty: | 16 |
Buffer Size: | 4 GB |
Optical Storage | |
Type: | No optical drive |
Card Reader | |
Type: | Card reader |
Supported Flash Memory Cards: | microSD |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Video Memory: | 16 MB |
Video Interfaces: | VGA |
Networking | |
Ethernet Ports: | 4 x Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | SNMP 3, IPMI 2.0, SMASH CLP |
Remote Management Controller: | Integrated Lights-Out 5 |
Features: | Wake on LAN (WoL), PXE support |
Expansion / Connectivity | |
Bays: | 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF |
Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe x16 - full-height |
Interfaces: | 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) |
Miscellaneous | |
Included Accessories: | CPU standard heatsink, 5 x standard fans, SFF easy install rails without CMA |
Compliant Standards: | AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
Power | |
Device Type: | Power supply - hot-plug |
Power Redundancy: | Optional |
Power Redundancy Scheme: | 1+1 (with optional power supply) |
Installed Qty: | 1 |
Max Supported Qty: | 2 |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Power Provided: | 800 Watt |
80 PLUS Certification: | 80 PLUS Titanium |
Operating System / Software | |
OS Provided: | No operating system |
Software: | HPE Server UEFI |
Sustainability Information | |
ENERGY STAR Certified: | Yes |
ENERGY STAR Version: | 3.0 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
Dimensions & Weight | |
Width: | 43.46 cm |
Depth: | 70.7 cm |
Height: | 4.29 cm |
Weight: | 13.04 kg |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 8 - 90% (non-condensing) |
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain and 27% increase in cores , along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 82% . With the added performance that Intel Optane persistent memory 100 series for HPE , HPE NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
- HPE ProLiant DL360 Gen10 server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2933 MT/s HPE DDR4 SmartMemory.
- The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.
- HPE iLO 5 enables the world’s most secure industry standard servers with HPE silicon root of trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
- HPE ProLiant DL360 Gen10 server comes with a complete set of services offered by HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
