HPE ProLiant DL320 Gen11 - rack-mountable Xeon Bronze 3408U 1.8 GHz - 16 GB - no HDD
SKU P57686-421
Product Description: | HPE ProLiant DL320 Gen11 - rack-mountable Xeon Bronze 3408U 1.8 GHz - 16 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Localisation: | Region: European Union |
Server Scalability: | 1-way |
Processor: | 1 x Intel Xeon Bronze 3408U / 1.8 GHz (up to 1.9 GHz, (8-core) |
Processor Main Features: | Intel Turbo Boost Technology |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability: | 1-way |
Hot-Swap Bays Qty: | 8 |
Localisation: | Region: European Union |
Processor / Chipset | |
CPU: | Intel Xeon Bronze 3408U |
Clock Speed: | 1.8 GHz |
Max Turbo Speed: | 1.9 GHz |
Number of Cores: | 8-core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
CPU Upgradability: | Upgradable |
Processor Main Features: | Intel Turbo Boost Technology |
Chipset Type: | Intel C741 |
Cache Memory | |
Installed Size: | L3 Cache - 22.5 MB |
Cache Per Processor: | 22.5 MB |
RAM | |
Installed Size: | 16 GB (installed) / 2.04 TB (max) |
Technology: | DDR5 SDRAM - Advanced ECC |
Effective Memory Speed: | 4000 MHz |
Rated Memory Speed: | 4800 MHz |
Form Factor: | DIMM 288-pin |
Slots: | 16 (Total) / 15 (empty) |
Features: | Registered, HPE SmartMemory, 8-channel memory architecture |
Configuration Features: | 1 x 16 GB |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x RAID |
Channel Qty: | 8 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Video Memory: | 16 MB |
Video Interfaces: | VGA |
Networking | |
Ethernet Ports: | 2 x Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0, SNMP 3 |
Features: | Wake on LAN (WoL), PXE support, ACPI support |
Expansion / Connectivity | |
Bays: | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
Slots: | 2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |

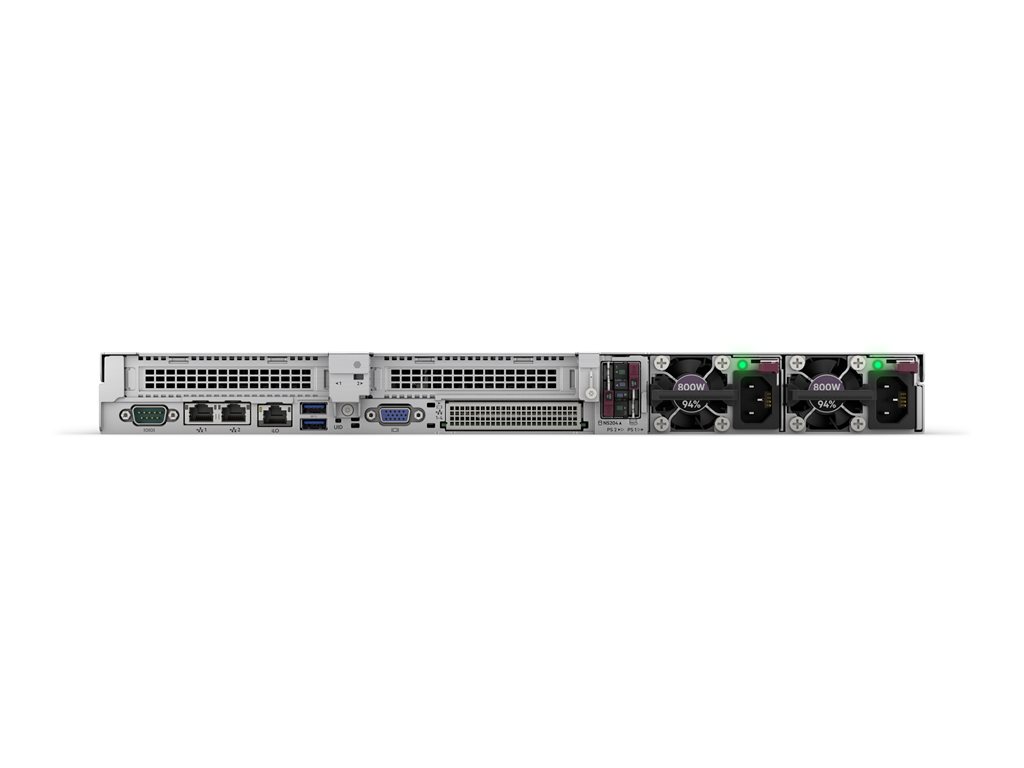

Interfaces: | 1 x HPE iLO (1 in front) (service port) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 1 x USB 2.0 ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) |
Miscellaneous | |
Included Accessories: | 5 x standard fans, HPE Easy Install Rails |
Compliant Standards: | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3 |
Power | |
Device Type: | Power supply - hot-plug |
Power Redundancy: | Optional |
Power Redundancy Scheme: | 1+1 (with optional power supply) |
Installed Qty: | 1 |
Max Supported Qty: | 2 |
Voltage Required: | AC 200/240 V |
Power Provided: | 1000 Watt |
80 PLUS Certification: | 80 PLUS Titanium |
Operating System / Software | |
OS Provided: | No operating system |
OS Certified: | Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Canonical Ubuntu, Oracle Linux, Oracle VM, Citrix, CentOS |
Sustainability Information | |
ENERGY STAR Certified: | Yes |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
Dimensions & Weight | |
Width: | 43.46 cm |
Depth: | 60.51 cm |
Height: | 4.28 cm |
Weight: | 12 kg |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 8 - 90% RH (non-condensing) |
Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
- HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
- The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.
- The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
- The HPE ProLiant DL320 Gen11 server is supported by HPE GreenLake to simplify IT. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.
