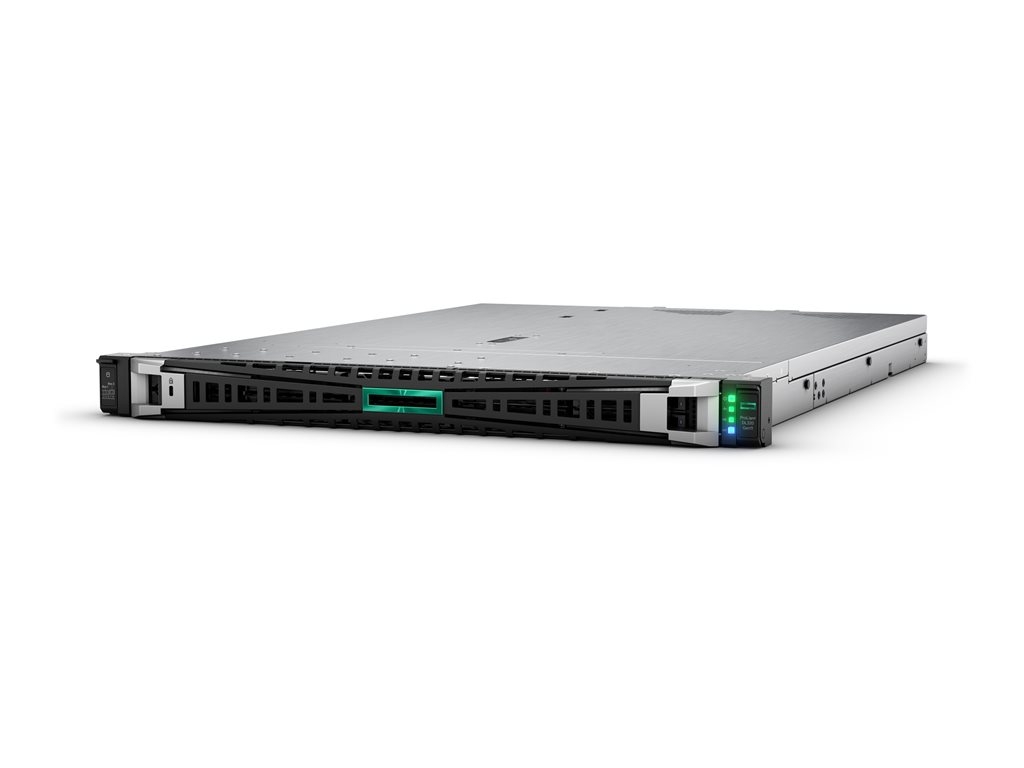

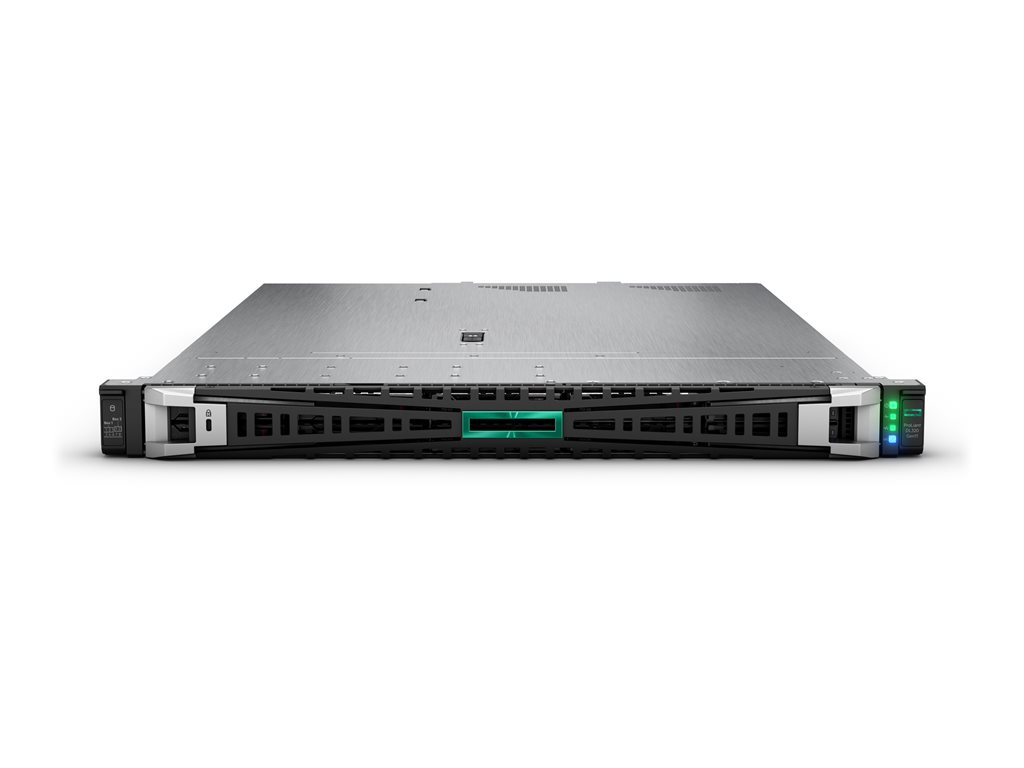

HPE ProLiant DL320 Gen11 - rack-mountable Xeon Bronze 3408U 1.8 GHz - 16 GB - no HDD

SKU P57685-421
Product Description:HPE ProLiant DL320 Gen11 - rack-mountable Xeon Bronze 3408U 1.8 GHz - 16 GB - no HDD
Type:Server - rack-mountable
Height (Rack Units):1U
Localisation:Region: European Union
Server Scalability:1-way
Processor:1 x Intel Xeon Bronze 3408U / 1.8 GHz (up to 1.9 GHz, (8-core)
Cache Memory:22.5 MB L3 Cache
23-09-2024
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Rack-mountable - 1U
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:1-way
Hot-Swap Bays Qty:4
Localisation:Region: European Union
Processor / Chipset
CPU:Intel Xeon Bronze 3408U
Clock Speed:1.8 GHz
Max Turbo Speed:1.9 GHz
Number of Cores:8-core
CPU Qty:1
Max CPU Qty:1
CPU Upgradability:Upgradable
Chipset Type:Intel C741
Cache Memory
Installed Size:L3 Cache - 22.5 MB
Cache Per Processor:22.5 MB
RAM
Installed Size:16 GB (installed) / 2.04 TB (max)
Technology:DDR5 SDRAM - Advanced ECC
Effective Memory Speed:4000 MHz
Rated Memory Speed:4800 MHz
Form Factor:DIMM 288-pin
Slots:16 (Total) / 15 (empty)
Features:Registered, 8-channel memory architecture, HPE SmartMemory
Configuration Features:1 x 16 GB
Hard Drive
Type:No HDD
Storage Controller
Type:1 x RAID
Channel Qty:8
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Video Memory:16 MB
Video Interfaces:VGA
Networking
Ethernet Ports:2 x Gigabit Ethernet
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:SNMP 3, IPMI 2.0
Features:Wake on LAN (WoL), ACPI support, PXE support
Expansion / Connectivity
Bays:4 (total) / 4 (free) x hot-swap 3.5" LFF
Slots:2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)

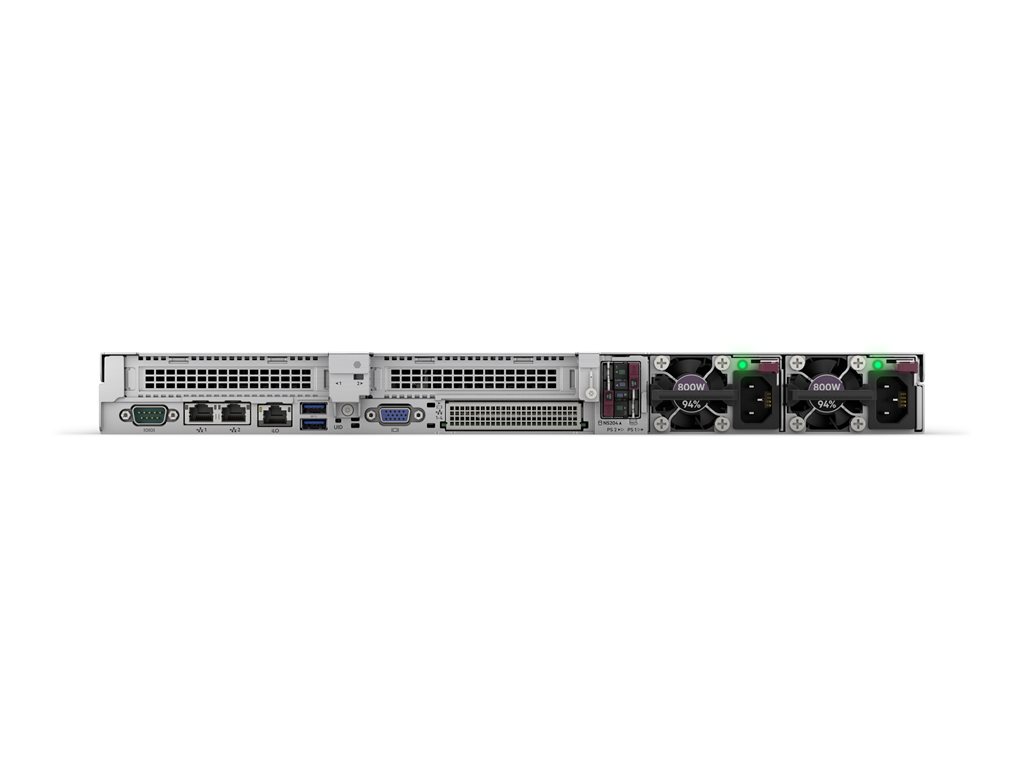

Interfaces:1 x HPE iLO (1 in front) (service port) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 1 x USB 2.0 ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet)
Miscellaneous
Included Accessories:HPE Easy Install Rails, 5 x standard fans
Compliant Standards:AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3
Power
Device Type:Power supply - hot-plug
Power Redundancy:Optional
Power Redundancy Scheme:1+1 (with optional power supply)
Installed Qty:1
Max Supported Qty:2
Voltage Required:AC 200/240 V
Power Provided:1000 Watt
80 PLUS Certification:80 PLUS Titanium
Operating System / Software
OS Provided:No operating system
OS Certified:SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, VMware ESXi, Oracle Linux, Canonical Ubuntu, Oracle VM, Citrix
Sustainability Information
ENERGY STAR Certified:Yes
Manufacturer Warranty
Service & Support:Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width:43.46 cm
Depth:66.46 cm
Height:4.28 cm
Weight:13.2 kg
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:35 °C
Humidity Range Operating:8 - 90% RH (non-condensing)
vis mere
Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
  • HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
  • The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.
  • The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
  • The HPE ProLiant DL320 Gen11 server is supported by HPE GreenLake to simplify IT. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.




The technical details come from 3rd party. edgemo is not responsible for any errors.
