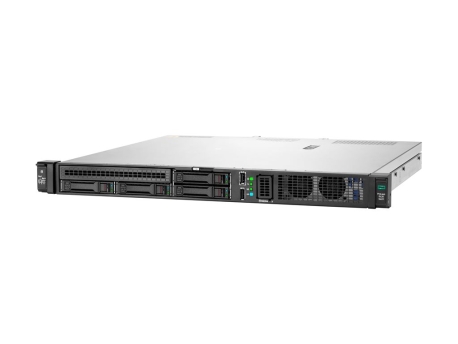

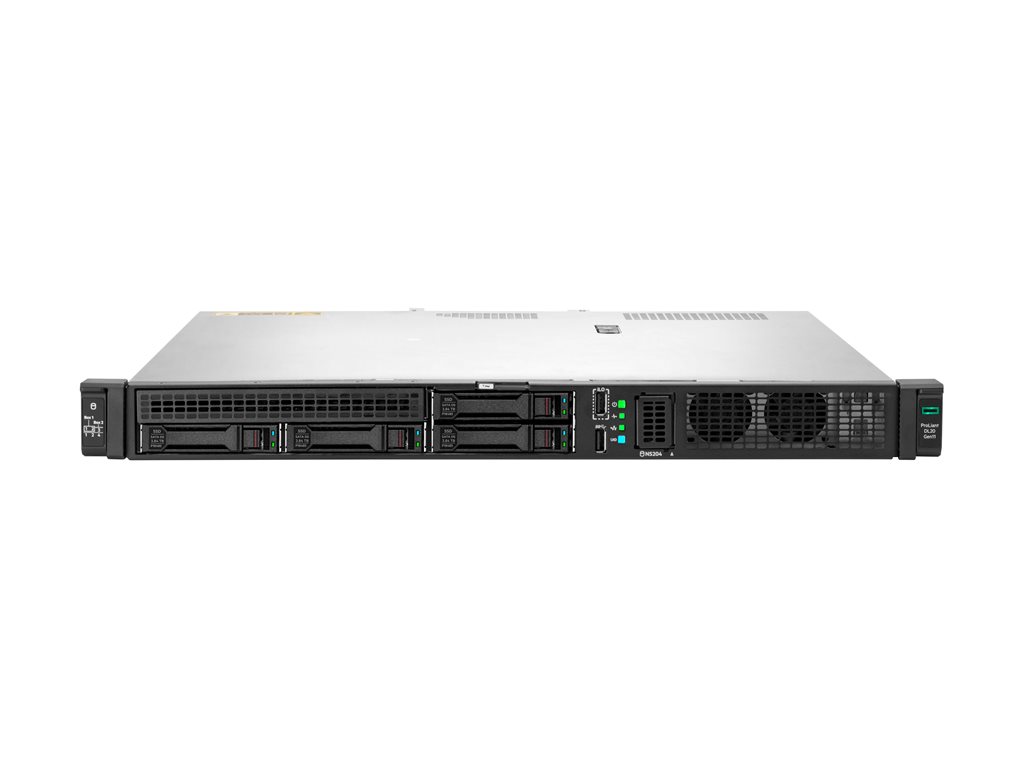

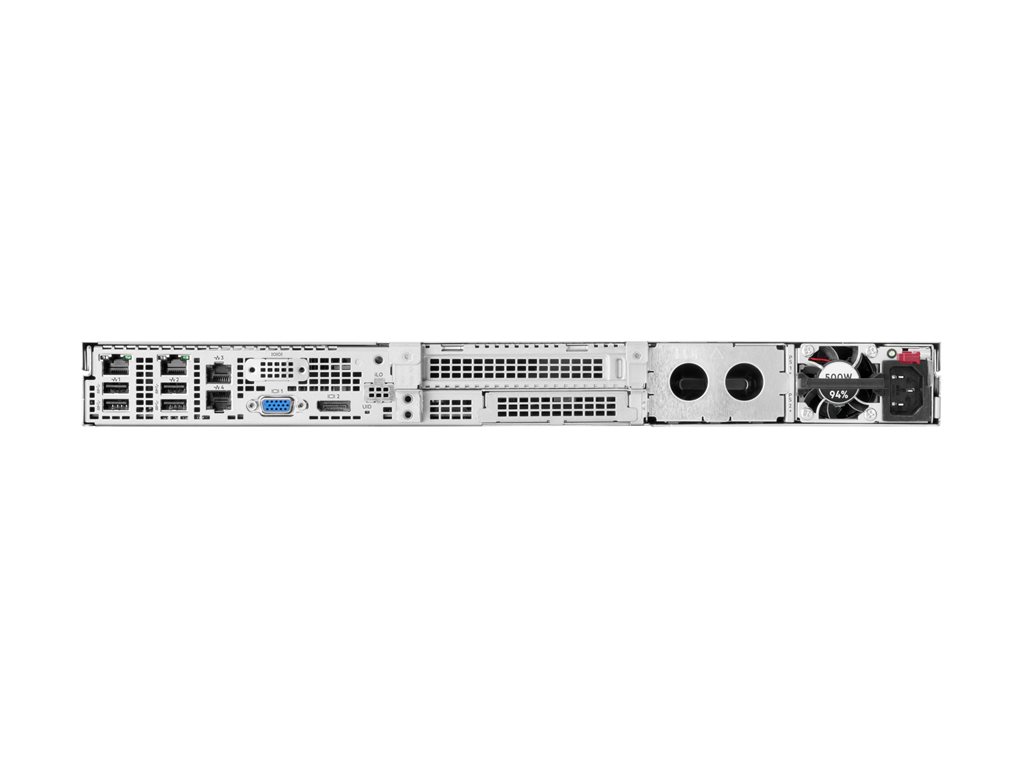

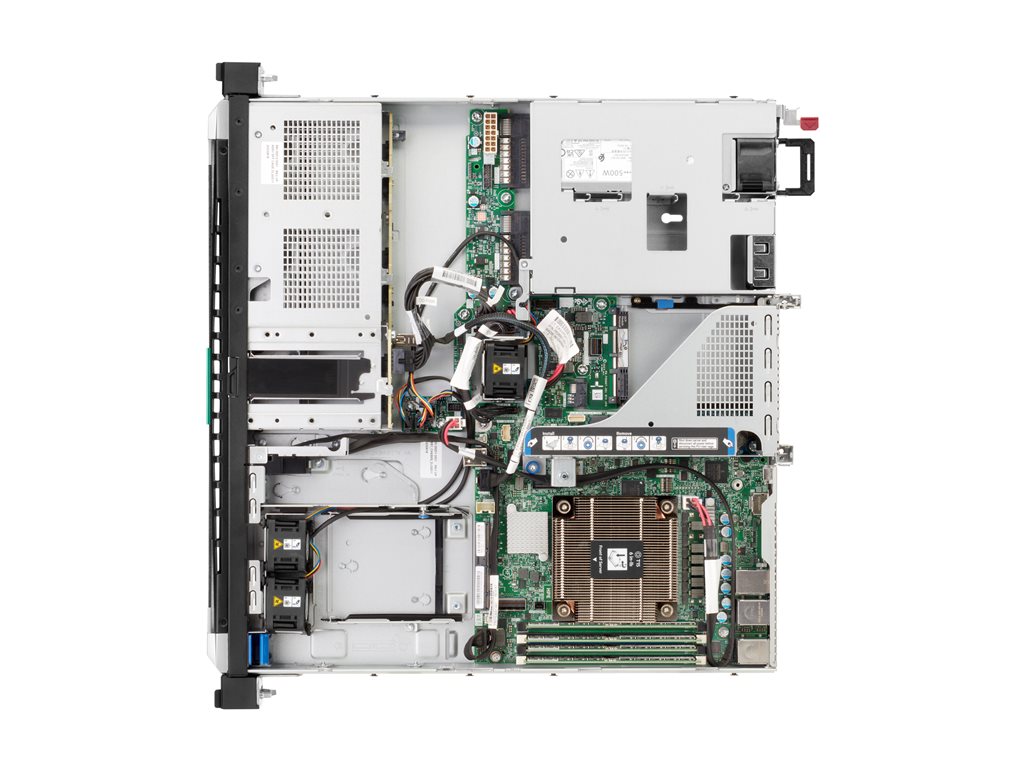

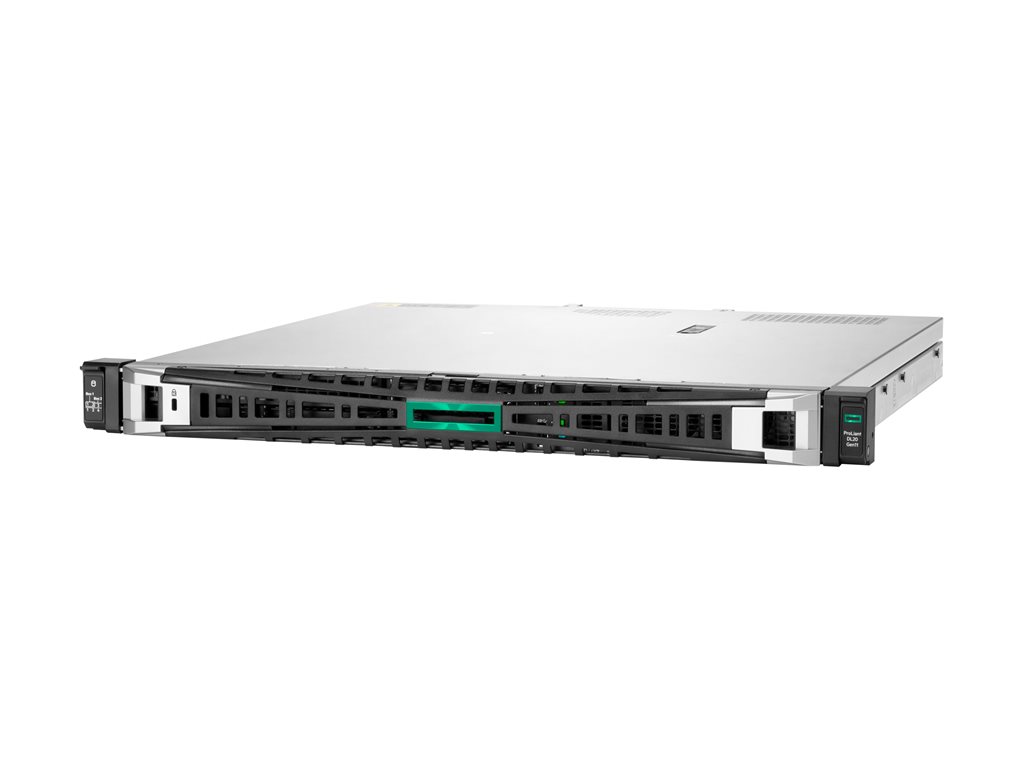

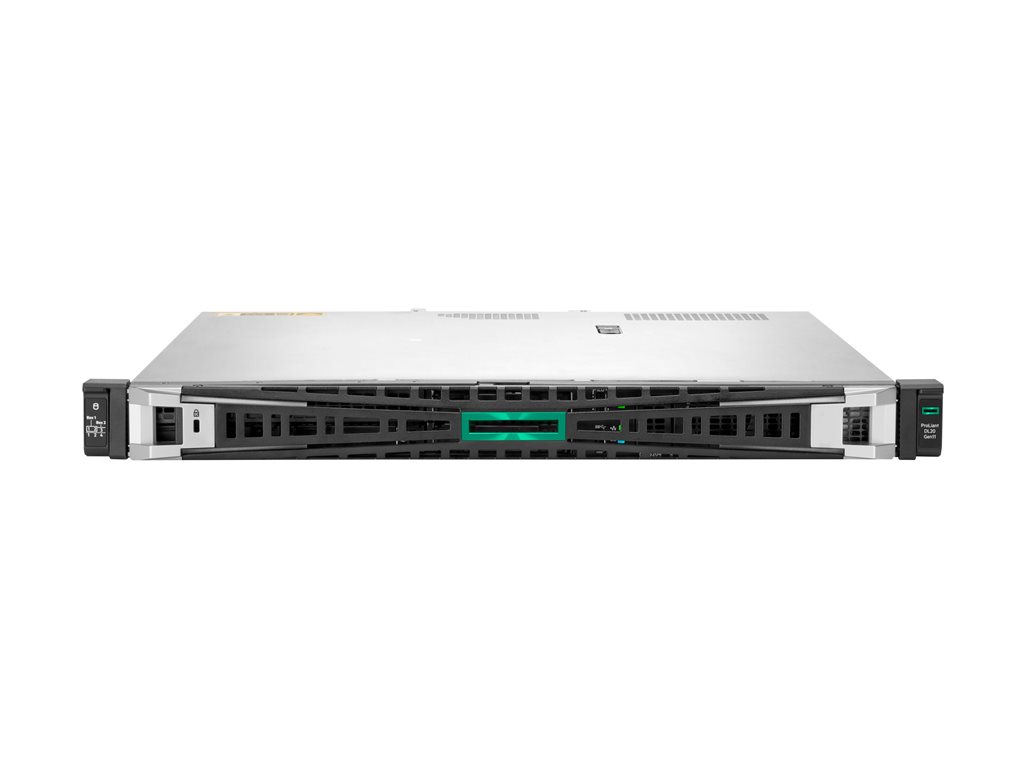

Printers & POSHPE ProLiant DL20 Gen11 - rack-mountable Xeon E-2436 2.9 GHz - 32 GB - SSD 2 x 480 GB
SKU P71375-425
| Product Description: | HPE ProLiant DL20 Gen11 - rack-mountable Xeon E-2436 2.9 GHz - 32 GB - SSD 2 x 480 GB |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Localisation: | Region: Germany, Switzerland, Austria, France, United Kingdom, Scotland, Ireland |
| Server Scalability: | 1-way |
| Processor: | 1 x Intel Xeon E-2436 / 2.9 GHz (up to 5 GHz, (6-core) |
| Cache Memory: | 18 MB |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Built-in Devices: | Led panel |
| Embedded Security: | Trusted Platform Module (TPM) Security Chip |
| Server Scalability: | 1-way |
| Hot-Swap Bays Qty: | 4 |
| Localisation: | Region: Germany, Switzerland, Austria, France, United Kingdom, Scotland, Ireland |
| Processor / Chipset | |
| CPU: | Intel Xeon E-2436 |
| Clock Speed: | 2.9 GHz |
| Max Turbo Speed: | 5 GHz |
| Number of Cores: | 6-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| Chipset Type: | Intel C262 |
| Cache Memory | |
| Installed Size: | 18 MB |
| Cache Per Processor: | 18 MB |
| RAM | |
| Installed Size: | 32 GB (installed) / 128 GB (max) |
| Technology: | DDR5 SDRAM - ECC |
| Effective Memory Speed: | 4800 MHz |
| Rated Memory Speed: | 4800 MHz |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 3 (empty) |
| Features: | Unbuffered |
| Configuration Features: | 1 x 32 GB |
| Hard Drive | |
| Type: | SSD - 2.5" |
| Capacity: | 2 x 480 GB |
| Interface Type: | SATA |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Storage Controller Name: | Intel VROC SATA Software RAID |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Matrox G200 |
| Video Memory: | 16 MB |
| Video Interfaces: | DisplayPort, VGA |
| Networking | |
| Ethernet Ports: | 4 x Gigabit Ethernet |
| Ethernet Controller: | Broadcom BCM5719 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller: | Integrated Lights-Out 6 |
| Features: | Wake on LAN (WoL), PXE support |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 2 (free) x hot-swap 2.5" SFF |
| Slots: | 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 (external) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) (internal) |
| Interfaces: | 1 x DisplayPort ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - Type A (1 front) (service port) ¦ 5 x USB 3.2 Gen 1 - Type A (1 front, 4 rear) |
| Miscellaneous | |
| Included Accessories: | 3 performance single rotor non-hot plug and non-redundant fans, HPE Easy Install Rails |
| Compliant Standards: | AES, Triple DES, ACPI 6.3, SMBIOS 3.2, Redfish API, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Active Directory v1.0, UEFI 2.9 |
| Manufacturer Selling Program: | HPE Smart Choice |
| Power | |
| Device Type: | Power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided: | 800 Watt |
| 80 PLUS Certification: | 80 PLUS Titanium |
| Operating System / Software | |
| OS Provided: | No operating system |
| Software: | HPE iLO Management, HPE Intelligent Provisioning |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width: | 43.46 cm |
| Depth: | 37.84 cm |
| Height: | 4.32 cm |
| Weight: | 9 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 90% RH (non-condensing) |
Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.
- HPE ProLiant DL20 Gen11 server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
- HPE ProLiant DL20 Gen11 server offers a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR5 ECC memory to handle your workload demands.
- Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen11server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with Silicon Root of Trust from HPE.
- HPE ProLiant DL20 Gen11 server comes standard with a complete set of services from HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
The technical details come from 3rd party. edgemo is not responsible for any errors.
