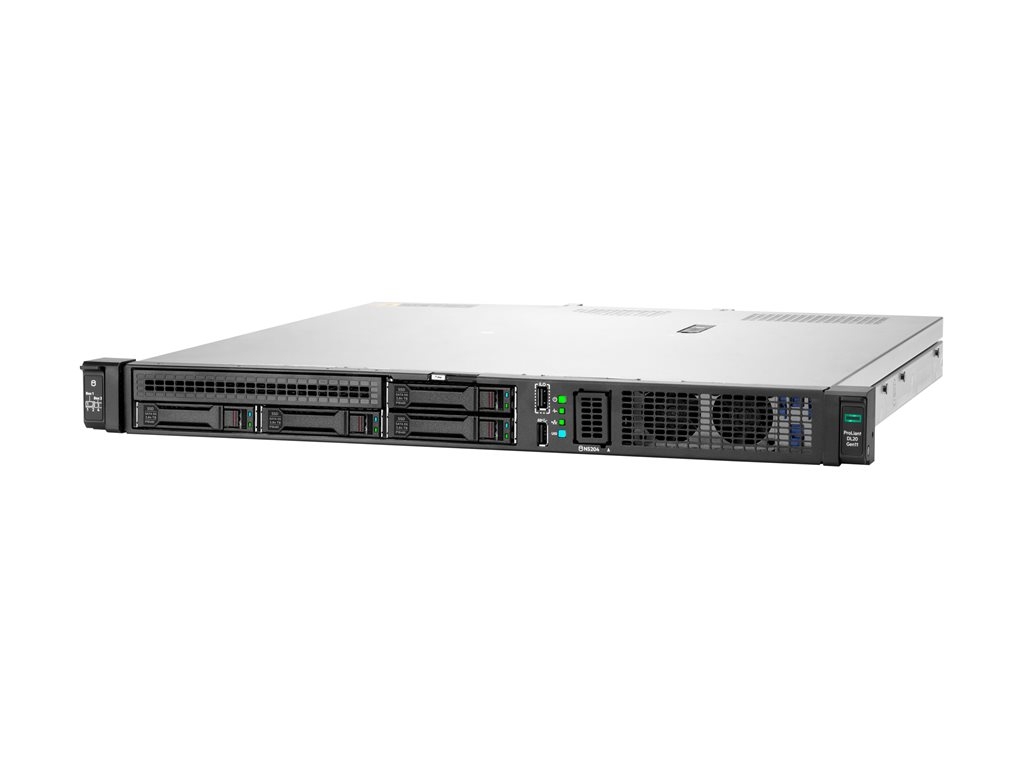

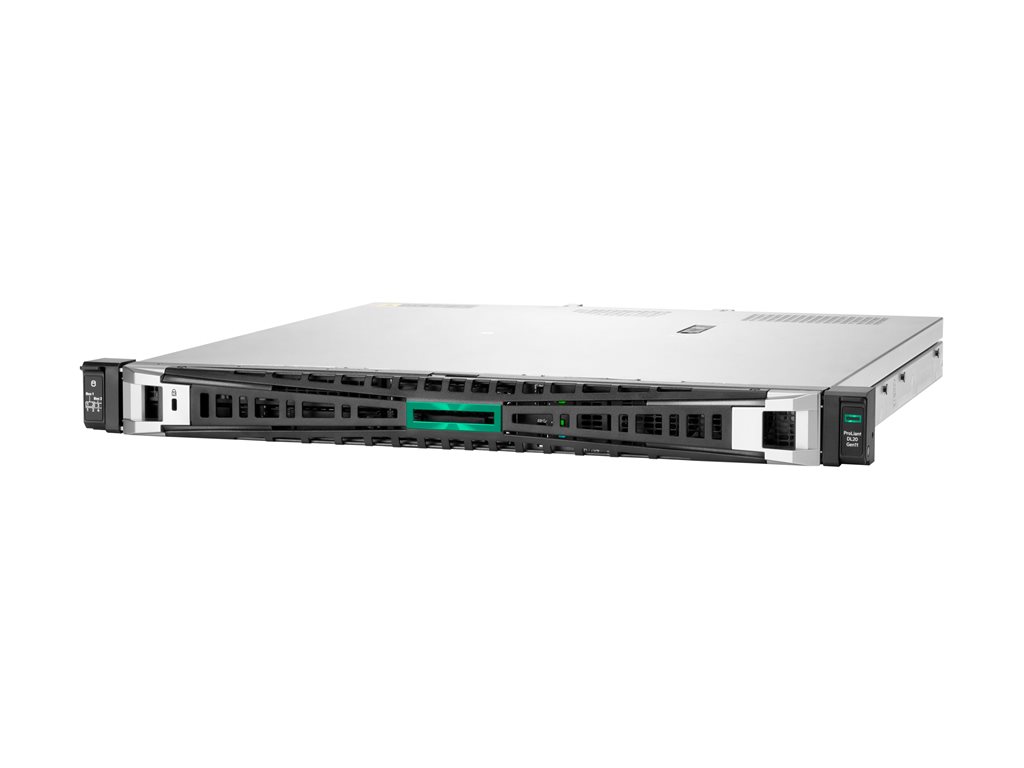

HPE ProLiant DL20 Gen11 Performance - rack-mountable Xeon E-2434 3.4 GHz - 16 GB - no HDD

SKU P65395-421

Product Description:	HPE ProLiant DL20 Gen11 Performance - rack-mountable Xeon E-2434 3.4 GHz - 16 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	1U
Localisation:	Region: EMEA
Server Scalability:	1-way
Processor:	1 x Intel Xeon E-2434 / 3.4 GHz (up to 5 GHz, (Quad-Core)
Processor Main Features:	Intel Turbo Boost Technology 2, Intel Smart Cache

12-12-2024

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 1U
Built-in Devices:	Led panel
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:	1-way
Hot-Swap Bays Qty:	4
Localisation:	Region: EMEA

Processor / Chipset
CPU:	Intel Xeon E-2434
Clock Speed:	3.4 GHz
Max Turbo Speed:	5 GHz
Number of Cores:	Quad-Core
CPU Qty:	1
Max CPU Qty:	1
CPU Upgradability:	Upgradable
Processor Main Features:	Intel Turbo Boost Technology 2, Intel Smart Cache
Chipset Type:	Intel C262

Cache Memory
Installed Size:	L3 Cache - 12 MB
Cache Per Processor:	12 MB

RAM
Installed Size:	16 GB (installed) / 128 GB (max)
Technology:	DDR5 SDRAM - ECC
Effective Memory Speed:	4800 MHz
Rated Memory Speed:	4800 MHz
Form Factor:	DIMM 288-pin
Slots:	4 (Total) / 3 (empty)
Features:	HPE Standard Memory, unbuffered
Configuration Features:	1 x 16 GB

Hard Drive
Type:	No HDD

Storage Controller
Type:	SATA
Controller Interface Type:	SATA 6Gb/s
Storage Controller Name:	Intel VROC SATA Software RAID
RAID Level:	RAID 1, RAID 0, RAID 5, RAID 10

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	Matrox G200
Video Memory:	16 MB
Video Interfaces:	DisplayPort, VGA

Networking
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Broadcom BCM5719
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol:	IPMI 2.0, SNMP 3
Features:	ACPI support, PXE support, Wake on LAN (WoL)

Expansion / Connectivity
Bays:	4 (total) / 4 (free) x hot-swap 2.5" SFF ¦ 1 (total) / 1 (free) x external
Slots:	1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0
Interfaces:	1 x HPE iLO - Type A (1 in front) (service port) ¦ 5 x USB 3.2 Gen 1x1 - Type A (1 front, 4 rear) ¦ 2 x USB 3.2 Gen 2x2 (2 internal) ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) - RJ-45

Miscellaneous
Included Accessories:	3 performance single rotor non-hot plug and non-redundant fans, HPE Short Friction Rail kit
Compliant Standards:	AES, Triple DES, ACPI 6.3, SMBIOS 3.2, Redfish API, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Active Directory v1.0, UEFI 2.9, PCI DSS, FIPS 140-2, IPv6 Ready, WEEE 2002/95/EC, EU Lot 9

Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
Installed Qty:	1
Max Supported Qty:	2
Voltage Required:	AC 100-120/200-240 V
Power Provided:	800 Watt
80 PLUS Certification:	80 PLUS Platinum

Operating System / Software
OS Provided:	No operating system
OS Certified:	Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 8.0 update 2
Software:	HPE iLO Management, HPE Intelligent Provisioning

Sustainability Information
ENERGY STAR Certified:	Yes
ENERGY STAR Version:	4.0

Manufacturer Warranty
Service & Support:	Limited warranty - parts and labour - 3 years - on-site - response time: next business day

Dimensions & Weight
Width:	43.46 cm
Depth:	37.84 cm
Height:	4.32 cm
Weight:	9 kg

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C
Humidity Range Operating:	8 - 90% RH (non-condensing)
Sound Emission:	27 dBA

vis mere

Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.

HPE ProLiant DL20 Gen11 server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
HPE ProLiant DL20 Gen11 server offers a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR5 ECC memory to handle your workload demands.
Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen11server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with Silicon Root of Trust from HPE.
HPE ProLiant DL20 Gen11 server comes standard with a complete set of services from HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.

The technical details come from 3rd party. edgemo is not responsible for any errors.
