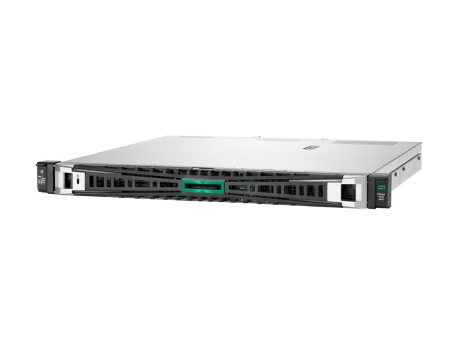

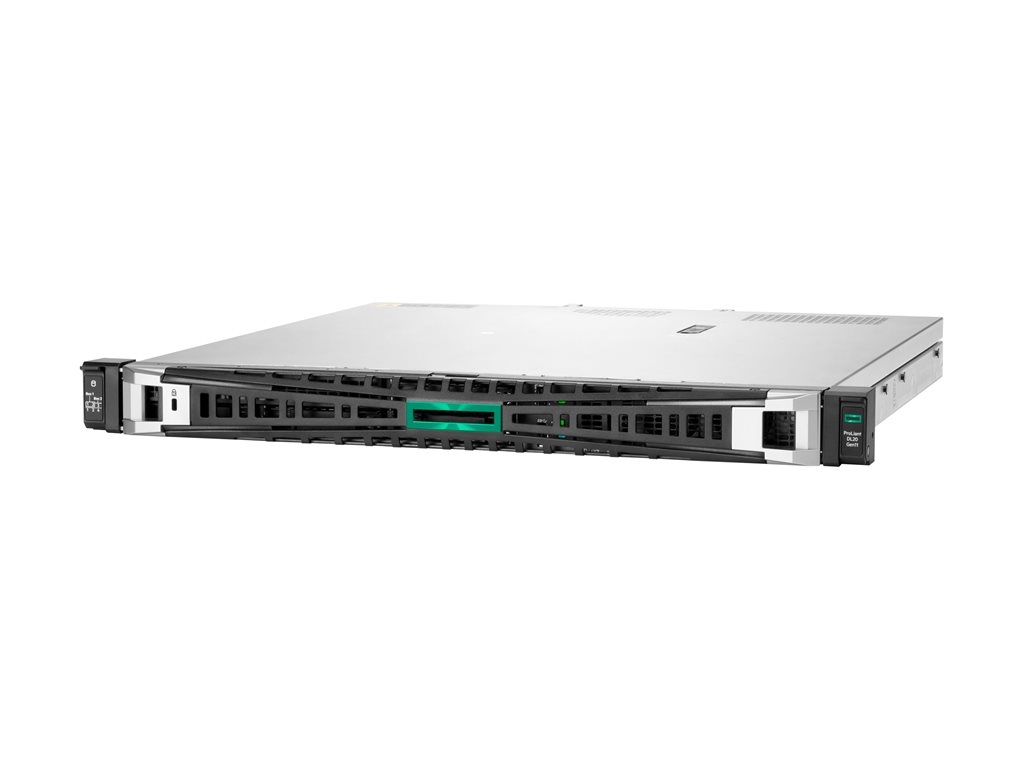

HPE ProLiant DL20 Gen11 Entry - rack-mountable Xeon E-2414 2.6 GHz - 16 GB - no HDD
SKU P65393-421
Product Description: | HPE ProLiant DL20 Gen11 Entry - rack-mountable Xeon E-2414 2.6 GHz - 16 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 1U |
Localisation: | Region: EMEA |
Server Scalability: | 1-way |
Processor: | 1 x Intel Xeon E-2414 / 2.6 GHz (up to 4.5 GHz, (Quad-Core) |
Processor Main Features: | Intel Turbo Boost Technology 2, Intel Smart Cache |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 1U |
Built-in Devices: | Led panel |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Server Scalability: | 1-way |
Localisation: | Region: EMEA |
Processor / Chipset | |
CPU: | Intel Xeon E-2414 |
Clock Speed: | 2.6 GHz |
Max Turbo Speed: | 4.5 GHz |
Number of Cores: | Quad-Core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
CPU Upgradability: | Upgradable |
Processor Main Features: | Intel Turbo Boost Technology 2, Intel Smart Cache |
Chipset Type: | Intel C262 |
Cache Memory | |
Installed Size: | L3 Cache - 12 MB |
Cache Per Processor: | 12 MB |
RAM | |
Installed Size: | 16 GB (installed) / 128 GB (max) |
Technology: | DDR5 SDRAM - ECC |
Effective Memory Speed: | 4800 MHz |
Rated Memory Speed: | 4800 MHz |
Form Factor: | DIMM 288-pin |
Slots: | 4 (Total) / 3 (empty) |
Features: | HPE Standard Memory, unbuffered |
Configuration Features: | 1 x 16 GB |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | SATA |
Controller Interface Type: | SATA 6Gb/s |
Storage Controller Name: | Intel VROC SATA Software RAID |
RAID Level: | RAID 1, RAID 0, RAID 5, RAID 10 |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Graphics Processor: | Matrox G200 |
Video Memory: | 16 MB |
Video Interfaces: | DisplayPort, VGA |
Networking | |
Ethernet Ports: | 4 x Gigabit Ethernet |
Ethernet Controller: | Broadcom BCM5719 |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0, SNMP 3 |
Features: | ACPI support, PXE support, Wake on LAN (WoL) |
Expansion / Connectivity | |
Bays: | 2 (total) / 2 (free) x 3.5" LFF ¦ 1 (total) / 1 (free) x external |
Slots: | 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |
Interfaces: | 1 x HPE iLO - Type A (1 in front) (service port) ¦ 5 x USB 3.2 Gen 1x1 - Type A (1 front, 4 rear) ¦ 2 x USB 3.2 Gen 2x2 (2 internal) ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 |
Miscellaneous | |
Included Accessories: | 3 performance single rotor non-hot plug and non-redundant fans, HPE Short Friction Rail kit |
Compliant Standards: | AES, Triple DES, ACPI 6.3, SMBIOS 3.2, Redfish API, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Active Directory v1.0, UEFI 2.9, PCI DSS, FIPS 140-2, IPv6 Ready, WEEE 2002/95/EC, EU Lot 9 |
Power | |
Device Type: | Power supply |
Installed Qty: | 1 |
Max Supported Qty: | 2 |
Voltage Required: | AC 100-120/200-240 V (50/60 Hz) |
Power Provided: | 290 Watt |
80 PLUS Certification: | 80 PLUS Platinum |
Operating System / Software | |
OS Provided: | No operating system |
OS Certified: | Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 8.0 update 2 |
Software: | HPE iLO Management, HPE Intelligent Provisioning |
Sustainability Information | |
ENERGY STAR Certified: | Yes |
ENERGY STAR Version: | 4.0 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
Dimensions & Weight | |
Width: | 43.46 cm |
Depth: | 38.22 cm |
Height: | 4.32 cm |
Weight: | 9 kg |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 8 - 90% RH (non-condensing) |
Sound Emission: | 28 dBA |
Are you looking for a compact and versatile 1U server that supports edge workloads like security monitoring in a variety of environments? The reliable HPE ProLiant DL20 Gen11 server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the short-depth rack form factor in small, remote, or branch offices, as a powerful point of sale platform in transport, retail, and hospitality environments or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this one-socket, 1U server featuring Intel Xeon E processors provide unique enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements and a wide range of qualified options fits a variety of needs.
- HPE ProLiant DL20 Gen11 server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
- HPE ProLiant DL20 Gen11 server offers a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR5 ECC memory to handle your workload demands.
- Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen11server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with Silicon Root of Trust from HPE.
- HPE ProLiant DL20 Gen11 server comes standard with a complete set of services from HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
