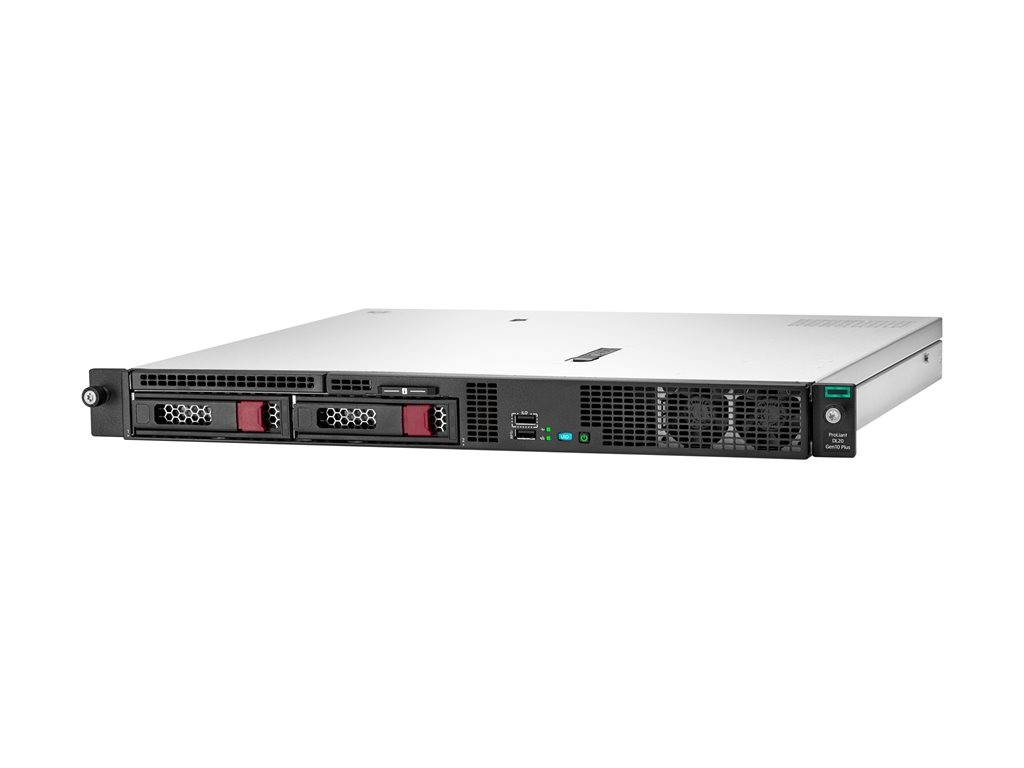

Printers & POSHPE ProLiant DL20 Gen10 Plus Base - rack-mountable Xeon E-2314 2.8 GHz - 16 GB - no HDD
SKU P44113-421
| Product Description: | HPE ProLiant DL20 Gen10 Plus Base - rack-mountable Xeon E-2314 2.8 GHz - 16 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Localisation: | Region: Europe |
| Server Scalability: | 1-way |
| Processor: | 1 x Intel Xeon E-2314 / 2.8 GHz (up to 4.5 GHz, (Quad-Core) |
| Cache Memory: | 8 MB L3 Cache |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 1-way |
| Hot-Swap Bays Qty: | 2 |
| Localisation: | Region: Europe |
| Processor / Chipset | |
| CPU: | Intel Xeon E-2314 |
| Clock Speed: | 2.8 GHz |
| Max Turbo Speed: | 4.5 GHz |
| Number of Cores: | Quad-Core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| Chipset Type: | Intel C256 |
| Cache Memory | |
| Installed Size: | L3 Cache - 8 MB |
| Cache Per Processor: | 8 MB |
| RAM | |
| Installed Size: | 16 GB (installed) / 128 GB (max) |
| Technology: | DDR4 SDRAM - ECC |
| Effective Memory Speed: | 3200 MHz |
| Rated Memory Speed: | 3200 MHz |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 3 (empty) |
| Features: | Unbuffered, dual channel memory architecture |
| Configuration Features: | 1 x 16 GB |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID |
| Controller Interface Type: | SATA 6Gb/s |
| Storage Controller Name: | HPE Smart Array S100i SR Software RAID |
| Channel Qty: | 4 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Matrox G200 |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Broadcom BCM5720 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller: | Integrated Lights-Out 4 |
| Features: | Wake on LAN (WoL), PXE support |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Expansion / Connectivity | |
| Bays: | 1 (total) / 1 (free) x external 5.25" ¦ 2 (total) / 2 (free) x hot-swap 3.5" LFF |
| Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile (x8 mode) |
| Interfaces: | 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) / HP iLO ¦ 5 x USB 3.0 (2 front, 2 rear, 1 internal) |
| Miscellaneous | |
| Included Accessories: | 3 x system fans, HPE Short Friction Rail kit |
| Compliant Standards: | AES, FIPS 140-2, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, ACPI 6.1, Redfish API, UEFI |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Yes |
| Installed Qty: | 1 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 290 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Efficiency: | 92% |
| Operating System / Software | |
| OS Provided: | No operating system |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width: | 43.46 cm |
| Depth: | 38.22 cm |
| Height: | 4.32 cm |
| Weight: | 10 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 90% (non-condensing) |
Are you looking for a compact and versatile 1U server that supports workloads in a variety of environments? The reliable HPE ProLiant DL20 Gen10 Plus server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the portable short-depth rack form factor in small, remote, or branch offices, as a compact yet powerful point of sale platform in transport, retail, and hospitality environments, or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this 1 socket, 1U server featuring Intel Xeon E processors provides unique enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements, and a wide range of qualified options fits a variety needs.
- HPE ProLiant DL20 Gen10 Plus server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
- You have a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen10 Plus server.
- Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen10 Plus server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with silicon root of trust from HPE.
- HPE ProLiant DL20 Gen10 Plus server comes standard with a complete set of services from HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
The technical details come from 3rd party. edgemo is not responsible for any errors.
