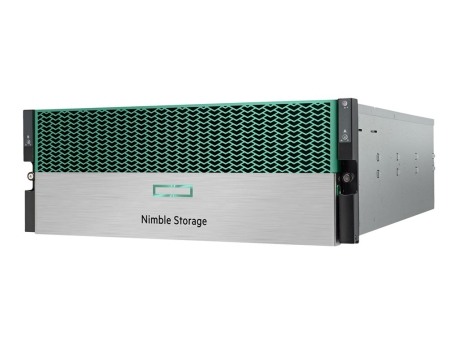

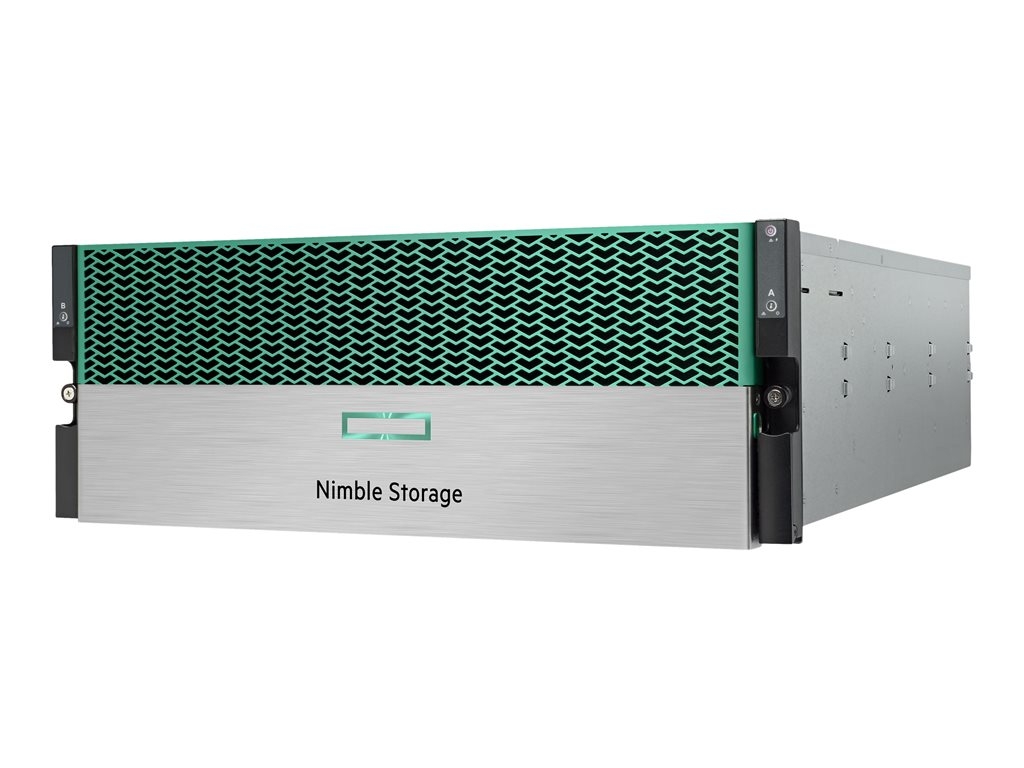

HPE Nimble Storage Adaptive Flash HF-Series HF20 - solid state / hard drive array
SKU R3S73A
Product Description: | HPE Nimble Storage Adaptive Flash HF-Series HF20 - solid state / hard drive array |
Device Type: | Solid state / hard drive array |
Enclosure Type: | Rack-mountable - 4U |
Total Array Capacity: | 42 TB |
Interface: | iSCSI (10 GbE), 16Gb Fibre Channel |
Installed Devices / Modules Qty: | 27 (max) |
Storage Controller: | RAID |
- Specifications
- Description
General | |
Device Type: | Solid state / hard drive array |
Enclosure Type: | Rack-mountable - 4U |
Chassis | |
Supported Devices / Modules Qty: | 27 |
Storage | |
Total Array Capacity: | 42 TB |
HDD Array External Interface: | iSCSI (10 GbE), 16Gb Fibre Channel |
Storage Controller | |
Type: | RAID |
Installed Qty: | 2 |
Storage Controller (2nd) | |
Installed Qty: | 2 |
Hard Drive | |
Type: | HDD |
Capacity: | 21 x 2 TB |
Hard Drive (2nd) | |
Type: | SSD |
Capacity: | 6 x 5.76 TB |
Expansion / Connectivity | |
Expansion Bays: | 21 - 3.5" LFF ¦ 6 - 2.5" SFF |
Interfaces: | 4 x Ethernet 10Gb - RJ-45 ¦ 2 x 16Gb Fibre Channel |
Miscellaneous | |
Compliant Standards: | FCC Class A certified, UL, cUL, NOM, CCC, IEC 60950-1, IC Class A, WEEE, FCC Part 15 B Class A, BSMI Class A, KC, NOM-019-SCFI-1998, VCCI Class A, EAC, CITC, EN 50581:2012, RCM, RoHS 2011/65/EU, BSMI CNS 13438(95), BIS, CoC, EN 55024:2010, EN 55022:2010, AS/NZS CISPR22:2009+A1:2010, CISPR 22:2008, CNS 14336-1:99, EN 55032:2012, LoA, ICES-003:2016 issue 6 Class A, VCCI V-3/2014.04 Class A, CISPR 32:2012, EN 60950-1:2005, TP TC 004/2011, TP TC 020/2011, CISPR 24:2010+A1:2015, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
Power | |
Power Device: | 2 x internal power supply |
Max Supported Qty: | 2 |
Voltage Required: | AC 120/230 V - 50/60 Hz |
Dimensions & Weight | |
Width: | 43.9 cm |
Depth: | 89 cm |
Height: | 17.58 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts - 1 year ¦ Technical support - software application support - 90 days |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 35 °C |
Humidity Range Operating: | 8 - 90% |
Struggling to find cost effective flash storage for your primary, secondary, and backup/DR workloads? The HPE Nimble Storage Adaptive Flash Arrays are like having two flash arrays in one. The array is truly adaptive - designed for both primary and secondary flash workloads. It is a hybrid flash array for mixed, primary workloads where cost-efficient flash performance is important. It can also serve as a secondary flash array for backup and disaster recover (DR) while allowing you to put your backup data to work.
- Inline variable block deduplication and compression for increased data reduction
- Performance up to 65% or more faster than previous HPE Nimble Storage Adaptive arrays
- Secondary flash storage functionality for backup and disaster recovery (DR) workloads
