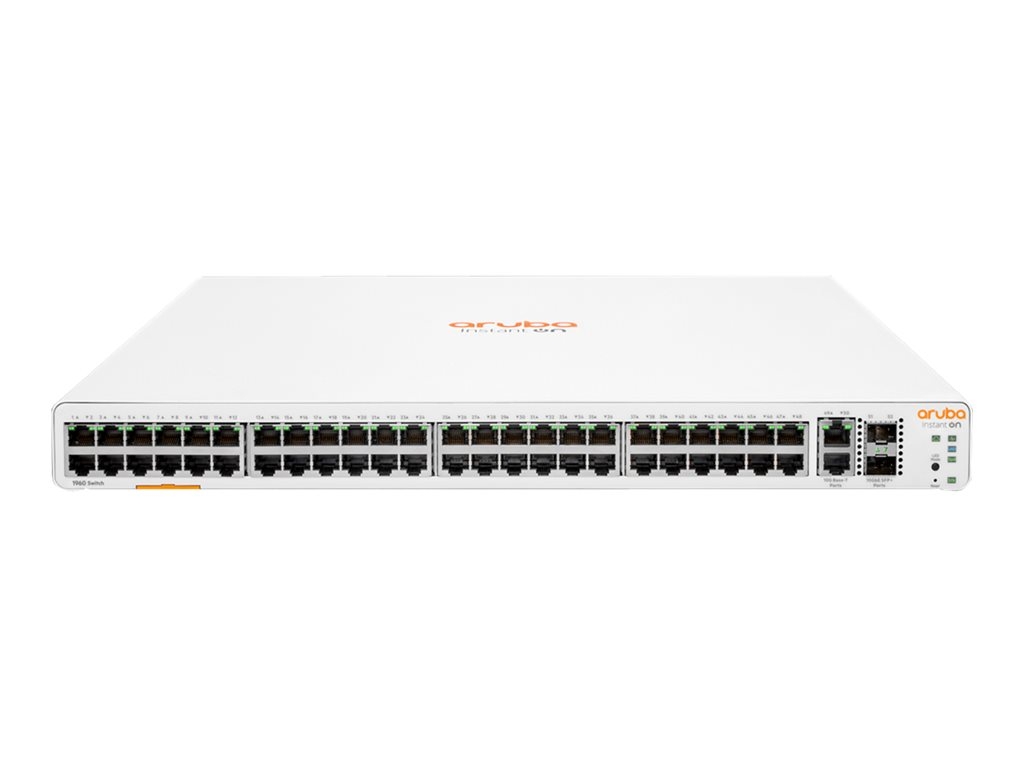

Printers & POSHPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch - switch - 48 ports - smart - rack-mountable
SKU JL808A#ABB
| Product Description: | HPE Networking Instant On 1960 48G 2XGT 2SFP+ Switch - switch - 48 ports - smart - rack-mountable |
| Device Type: | Switch - 48 ports - L2+ - smart - stackable |
| Enclosure Type: | Rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet |
| Performance: | Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps |
| Capacity: | IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32 |
- Specifications
- Description
| General | |
| Device Type: | Switch - 48 ports - L2+ - smart - stackable |
| Enclosure Type: | Desktop, rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 10 Gigabit Ethernet |
| Performance: | Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs ¦ Throughput: 131 Mpps ¦ Switching capacity: 176 Gbps |
| Capacity: | IPv4 routing table entries: 32 ¦ IPv6 routing table entries: 32 |
| MAC Address Table Size: | 16000 entries |
| Jumbo Frame Support: | 9216 bytes |
| Routing Protocol: | IGMP, IGMPv2, IGMPv3, MLD, MLDv2, static IPv4 routing |
| Remote Management Protocol: | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RADIUS, SCP, TFTP, RMON |
| Encryption Algorithm: | SSL |
| Authentication Method: | RADIUS |
| Features: | Cloud managed, ACL support, VLAN support, DoS attack prevention, DHCP client, firmware upgradable, SNTP support, QoS, DSCP prioritisation, CoS, WRR, auto-uplink (auto MDI/MDI-X), auto-negotiation, flow control, MSTP support, RSTP support, STP support, auto voice VLAN, port mirroring, BPDU Filter, loop protection, IGMP snooping, MLD snooping, TPM, LLDP-MED, port based access control, Port Security, DHCP snooping, IP source guard, ARP filtering, Unicast Storm Control, Broadcast Storm Control, Multicast Storm Control, Energy Efficient Ethernet, DHCP relay, DHCP server, IPv6 support, ingress rate limiting, DNS client, protected ports, dual image support, ICMP, Cable Diagnostics Function |
| Compliant Standards: | IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1t, IEEE 802.3ac |
| Processor: | 1: 800 MHz |
| Status Indicators: | Port status |
| Expansion / Connectivity | |
| Interfaces: | 48 x Gigabit LAN RJ-45 ¦ 2 x 10Gbit LAN SFP+ ¦ 2 x 10Gbit LAN RJ-45 |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational: | 80 Watt |
| Miscellaneous | |
| Rack Mounting Kit: | Included |
| MTBF: | 109.4 years |
| Compliant Standards: | Plug and Play, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 62368-1, EN 62368-1 Second Edition, EN 62368-1 Third Edition, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA-C22.2 No. 62368-1, EN/IEC 60825-1:2014 Class 4, EN 55032/CISPR 32 Class A, FCC CFR47 Part 15 A, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, CISPR 35, EN 55035, KN35, EN 61000-3-2, IEC 61000-3-2, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3, IEC 61000-3-3 |
| Localisation: | English / Europe |
| Dimensions & Weight | |
| Width: | 44.25 cm |
| Depth: | 35.05 cm |
| Height: | 4.4 cm |
| Weight: | 4.4 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
- Each model of the HPE Networking Instant On Switch 1960 series includes four 10GbE connections to connect to servers, network storage devices, or to other switches.
- The HPE Networking Instant On Switch 1960 series is a complete portfolio for increased small business flexibility. It consists of six models including two 24-port and two 48-port models in PoE and non-PoE configurations, a 12-port multi-rate switch, and a 12-port 10-Gigabit aggregation switch.
- The HPE Networking Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four HPE Networking Instant On 1960 switches and manage as a single entity.
- The HPE Networking Instant On Switch 1960 series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users.
The technical details come from 3rd party. edgemo is not responsible for any errors.
