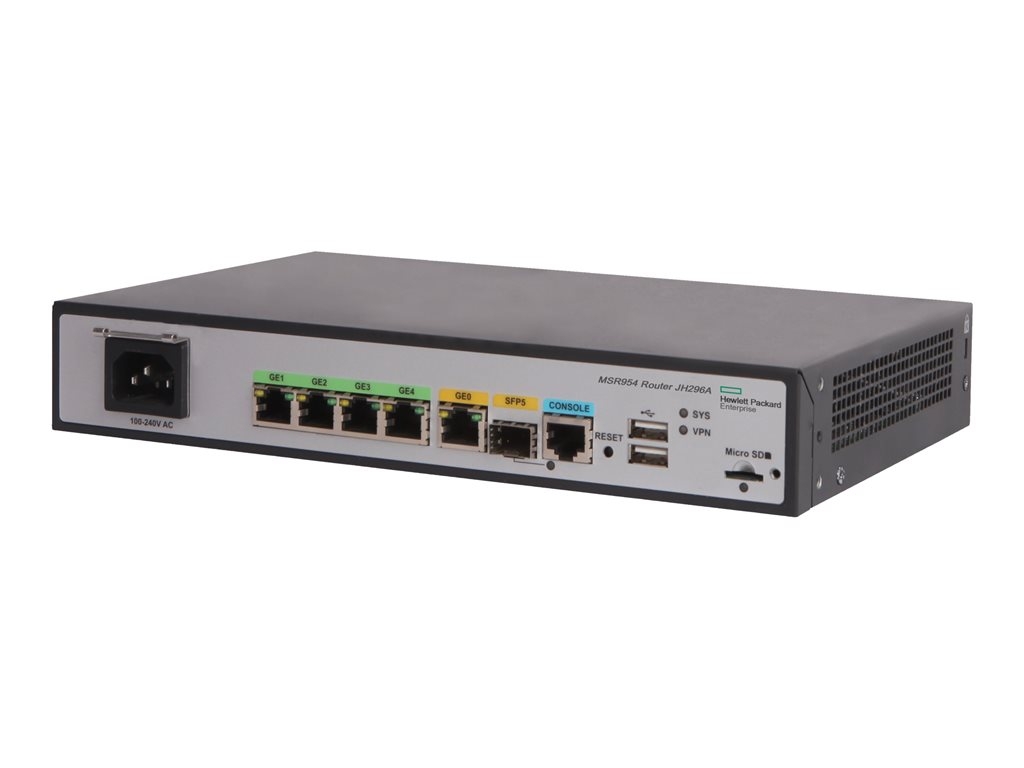

Printers & POSHPE MSR954 - router - rack-mountable
SKU JH296A#ABB
| Product Description: | HPE MSR954 - router - rack-mountable |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Rack-mountable - 1U |
| WAN Ports Qty: | 1 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Performance: | Forwarding performance: up to 300 Kpps ¦ Encryption throughput: up to 160 Mbps ¦ Throughput (64-byte packet size): up to 300 Kpps |
- Specifications
- Description
| General | |
| Device Type: | Router - 4-port switch (integrated) |
| Enclosure Type: | Rack-mountable - 1U |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate: | 1 Gbps |
| Performance: | Forwarding performance: up to 300 Kpps ¦ Encryption throughput: up to 160 Mbps ¦ Throughput (64-byte packet size): up to 300 Kpps |
| Capacity: | VPN tunnels: 100 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000 ¦ IPv4 forwarding table entries: 10000 ¦ IPv6 forwarding table entries: 5000 |
| Network / Transport Protocol: | TCP/IP, UDP/IP, NTP, IPSec, ARP |
| Routing Protocol: | OSPF, EGP, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, BGP-4+, BGP+ |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, TFTP, CLI |
| Encryption Algorithm: | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method: | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features: | NAT support, VLAN support, port mirroring, WRED, sFlow, STP support, RSTP support, MSTP support, tunnelling, ACL support, QoS, CAR, URPF, DHCP relay, MIB, port isolation, packet storm protection, CoS, Loopback, DVPN, MBGP, RED |
| Compliant Standards: | IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 300 386 V1.3.3, AS/NZS CISPR 22 Class B, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003 |
| Processor: | 1 x Marvell A370 800 MHz |
| RAM: | 1 GB DDR3 SDRAM |
| Flash Memory: | 256 MB |
| Expansion / Connectivity | |
| Interfaces: | 1 x Ethernet 1000 - SFP (mini-GBIC) ¦ WAN: 1 x Ethernet 1000 - RJ-45 ¦ LAN: 4 x Ethernet 1000 - RJ-45 ¦ 2 x USB 2.0 |
| Power | |
| Voltage Required: | AC 120/230 V |
| Miscellaneous | |
| Localisation: | English / Europe |
| Software / System Requirements | |
| OS Provided: | Comware v7 |
| Dimensions & Weight | |
| Width: | 26.6 cm |
| Depth: | 16.1 cm |
| Height: | 4.36 cm |
| Weight: | 1 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 5 - 92% (non-condensing) |
The HPE Networking Comware Router Series MSR95x delivers high-performance, small branch routing in a single, cost-optimized form factor. Featuring integrated routing, switching, wireless, security, and voice with no additional licensing, boost your service delivery while simplifying the management of the corporate wide area network (WAN). This series is flexible to deploy, with Zero Touch Provisioning and WAN options with LTE connectivity. With Comware v7 and fiber connections, the MSR95x also brings the performance and advanced services available on modular routers, such as IPS and high encryption, to a fixed port form factor.
- The HPE Networking Comware Router Series MSR95x provides a Converged Infrastructure (CI) with integrated routing, switching, security, voice, and cellular WAN delivering high-performance small branch routing.
- The HPE Networking Comware Router Series MSR95x offers high-performance routing with up to 3 Mpps forwarding.
- The HPE Networking Comware Router Series MSR95x offers an extensive range of models and accessories to enable the right design for your business, in a compact fixed-port platform.
- The HHPE Networking Comware Router Series MSR95x delivers branch service and business continuity with multiple network options including dual gigabit WAN, dual 3G/4G LTE WAN, and built-in WLAN.
