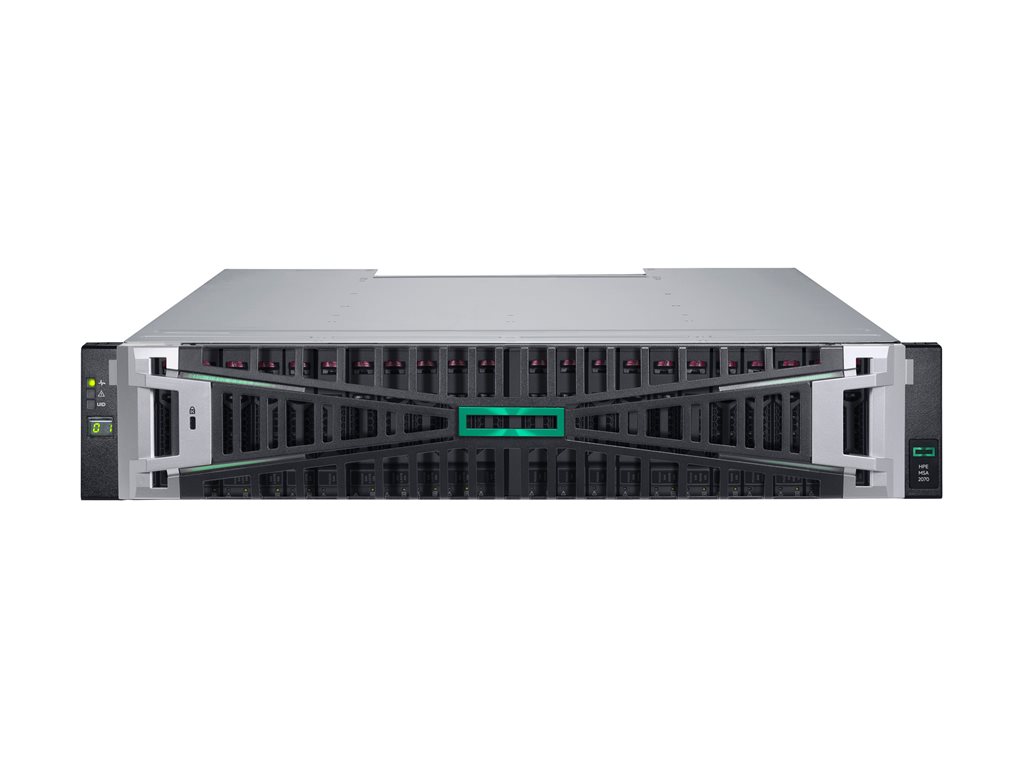

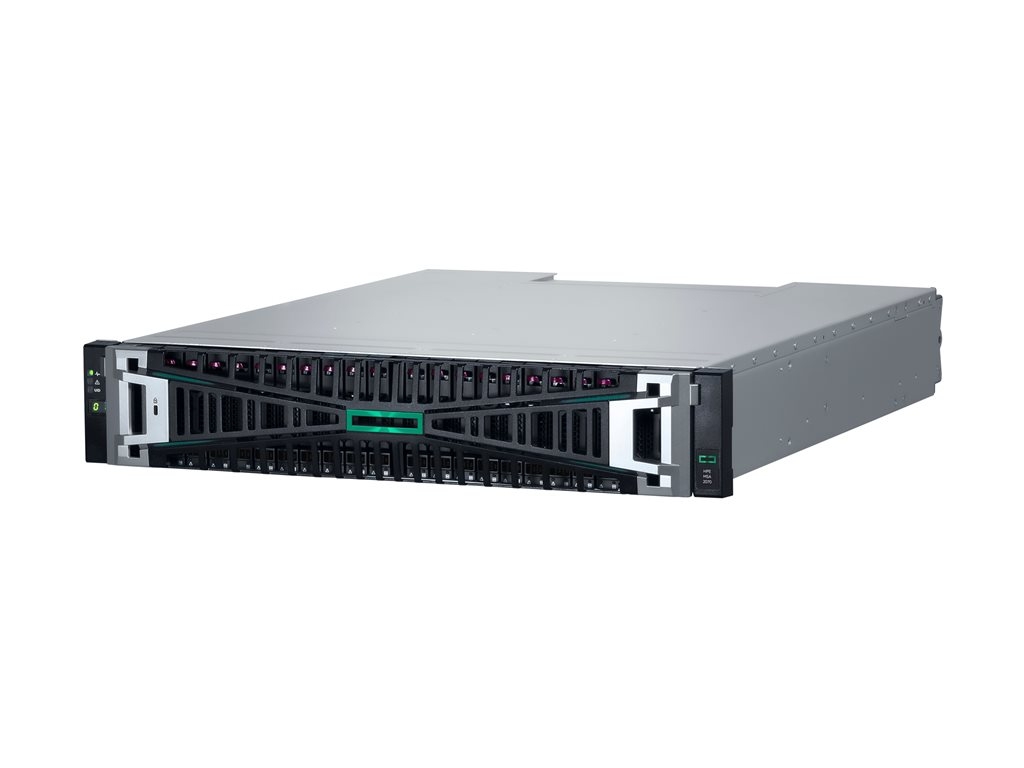

HPE Modular Smart Array 2070 32Gb Fibre Channel SFF Storage - SSD array

SKU P79245-B25

Product Description:	HPE Modular Smart Array 2070 32Gb Fibre Channel SFF Storage - SSD array
Device Type:	Solid state drive array
Enclosure Type:	Rack-mountable - 2U
Bundled with:	4 x 32Gb SFP FC XCVR transceiver
Total Array Capacity:	23 TB
Max Supported Capacity:	737.28 TB
Interface:	32Gb Fibre Channel

13-05-2025

Specifications
Description
Accessories

General
Device Type:	Solid state drive array
Enclosure Type:	Rack-mountable - 2U
Bundled with:	4 x 32Gb SFP FC XCVR transceiver

Chassis
Installed Devices / Modules Qty:	12
Supported Devices / Modules Qty:	24
Supported Drives:	SAS-3

Storage
Total Array Capacity:	23 TB
Max Supported Capacity:	737.28 TB
HDD Array External Interface:	32Gb Fibre Channel

Processor
CPU:	No CPU

Storage Controller
Type:	RAID (32Gb Fibre Channel)
Installed Qty:	2
Interface Type:	SAS 12Gb/s
Data Transfer Rate:	1.2 GBps
RAID Level:	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, MSA-DP+

Storage Controller (2nd)
Installed Qty:	2

Hard Drive
Type:	SSD
Capacity:	12 x 1.92 TB
Interface Type:	SAS 12Gb/s
Features:	Read Intensive

Expansion / Connectivity
Expansion Bays:	24 (total) / 12 (free) - 2.5" SFF
Interfaces:	8 x 32Gb Fibre Channel ¦ 4 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS 12Gb/s (expansion port)

System Requirements
OS Required:	Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix XenServer

Miscellaneous
Features:	SMTP support, SNMP support
Compliant Standards:	ASHRAE Class A3, UL, CSA 62368-1, EN 62368-1, EU Lot 9, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, RoHS, China RoHS, WEEE
Included Accessories:	2 x PDU cords (IEC C14), rack mounting kit
Manufacturer Selling Program:	HPE Smart Choice

Environmental Standards
ENERGY STAR Certified:	Yes

Power
Power Device:	2 x internal power supply - hot-plug
Max Supported Qty:	2
Power Redundancy:	Yes
Power Redundancy Scheme:	1+1
Voltage Required:	AC 100-240 V 50/60 Hz
Power Provided:	580 Watt
80 PLUS Certification:	80 PLUS Platinum

Dimensions & Weight
Width:	48.3 cm
Depth:	50.8 cm
Height:	8.9 cm
Weight:	5 kg

Manufacturer Warranty
Service & Support:	Limited warranty - parts - 3 years

Environmental Parameters
Min Operating Temperature:	5 °C
Max Operating Temperature:	40 °C
Humidity Range Operating:	Up to 85% RH

vis mere

The HPE Modular Smart Array 2070 32Gb Fibre Channel SFF Storage offers a solution for high-capacity storage needs. It supports up to 24 devices or modules, making it suitable for expanding storage capabilities without additional hardware installations. This storage system operates efficiently in demanding environments, functioning within a temperature range of 5°C to 40°C while maintaining up to 85% humidity tolerance. With a total supported storage capacity of 737.28 TB, it is equipped to handle extensive data workloads, ensuring reliable performance for enterprise applications.
Featuring a 580-watt internal power supply with a power redundancy scheme, this storage system promotes energy efficiency with its ENERGY STAR certification and 80 PLUS Platinum rating. It provides various connectivity options, including 32Gb Fiber Channel and Ethernet interfaces, facilitating integration into existing infrastructures. The HPE Modular Smart Array is compliant with multiple environmental standards, ensuring operational efficiency and eco-friendly operation. Its RAID capabilities ensure data integrity and resiliency, making it a dependable choice for data-driven organizations.

Supports up to 24 devices for scalable storage solutions
Operates within 5°C to 40°C with humidity tolerance up to 85%
Total capacity of 737.28 TB for expansive data management
Features multiple interfaces including 32Gb Fiber Channel
ENERGY STAR certified for energy-efficient operations
