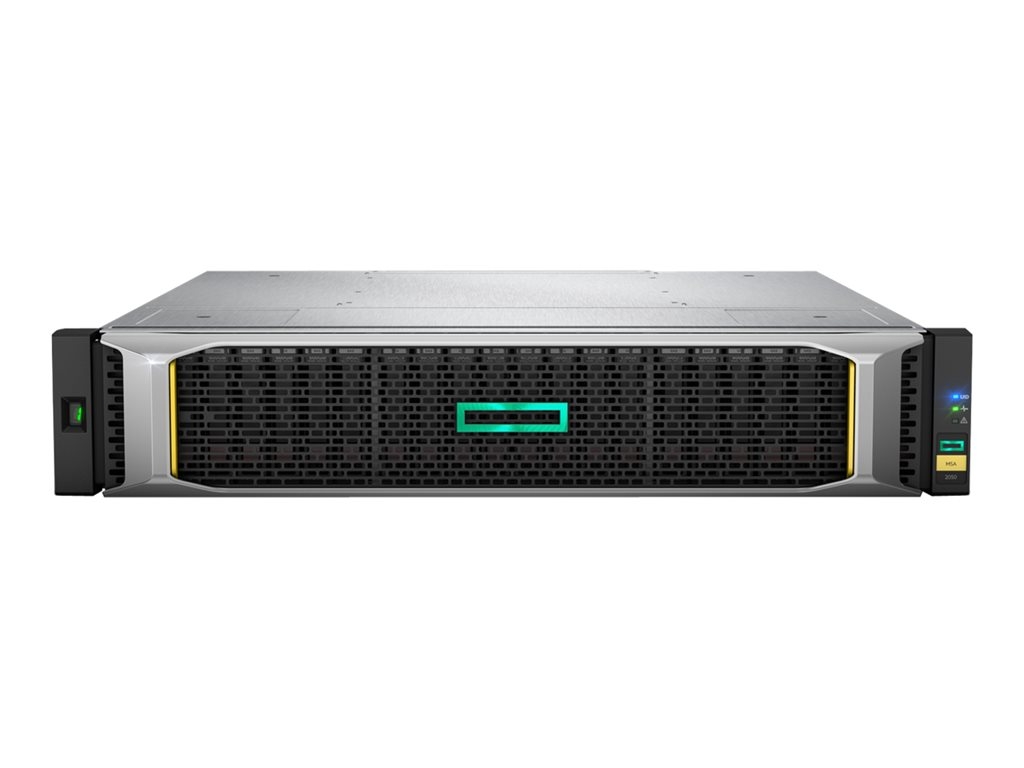

HPE Modular Smart Array 2052 SAN Dual Controller SFF Storage - solid state / hard drive array
SKU Q1J03B
Product Description: | HPE Modular Smart Array 2052 SAN Dual Controller SFF Storage - solid state / hard drive array |
Device Type: | Solid state / hard drive array |
Enclosure Type: | Rack-mountable - 2U |
Total Array Capacity: | 1.6 TB |
Max Supported Capacity: | 960 TB |
Maximum LUNs: | 512 |
Installed Devices / Modules Qty: | 2 (installed) / 24 (max) |
- Specifications
- Description
General | |
Device Type: | Solid state / hard drive array |
Enclosure Type: | Rack-mountable - 2U |
Chassis | |
Installed Devices / Modules Qty: | 2 |
Supported Devices / Modules Qty: | 24 |
Supported Drives: | SAS-2 |
Storage | |
Total Array Capacity: | 1.6 TB |
Max Supported Capacity: | 960 TB |
Maximum LUNs: | 512 |
Processor | |
CPU: | No CPU |
Storage Controller | |
Type: | RAID (iSCSI) |
Installed Qty: | 2 |
Interface Type: | SAS 6Gb/s |
Data Transfer Rate: | 600 MBps |
Cache / Buffer Size (Max): | 8 GB |
RAID Level: | RAID 1, RAID 5, RAID 6, RAID 10 |
Storage Controller (2nd) | |
Installed Qty: | 2 |
Hard Drive | |
Type: | SSD |
Capacity: | 2 x 800 GB |
Features: | Mixed-Use |
Expansion / Connectivity | |
Expansion Bays: | 24 (total) / 22 (free) - 2.5" SFF |
Interfaces: | 4 x Ethernet 10Gb (iSCSI) / 16Gb Fibre Channel ¦ 2 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS |
System Requirements | |
OS Required: | HP-UX, SuSe Linux, Red Hat Enterprise Linux, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016 |
Miscellaneous | |
Features: | Systems Insight Manager (SIM) |
Software Included: | HPE Advanced Data Services Suite |
Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, GS, EN 61000-3-3, EN55024, CCC, FCC Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, KN24, KN22 Class A, CNS 13438 Class A, ICES-003:2004 Class A |
Environmental Standards | |
ENERGY STAR Certified: | Yes |
Power | |
Power Device: | 2 x internal power supply - hot-plug |
Max Supported Qty: | 2 |
Power Redundancy: | Yes |
Power Redundancy Scheme: | 1+1 |
Voltage Required: | AC 120/230 V - 50/60 Hz |
Power Consumption Operational: | 390 Watt |
Dimensions & Weight | |
Width: | 44.7 cm |
Depth: | 49.5 cm |
Height: | 8.9 cm |
Weight: | 18.4 kg |
Manufacturer Warranty | |
Service & Support: | Limited warranty - parts - 3 years |
Environmental Parameters | |
Min Operating Temperature: | 5 °C |
Max Operating Temperature: | 40 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
Sound Emission: | 55 dBA |
Looking for affordable, high-performance shared storage? The flash-ready HPE MSA 2050 storage system is designed for affordable application acceleration ideal for small and remote office deployments. But do not let the low cost fool you. HPE MSA 2050 storage gives you the combination of simplicity, flexibility to grow now, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state disks (SSD), high-performance enterprise, or lower-cost midline SAS-based drives.
- Accelerates applications affordable
- No experience required
- Keep your business running with expanded data protection features
- Grow flexibly now and into the future
The technical details come from 3rd party. edgemo is not responsible for any errors.
