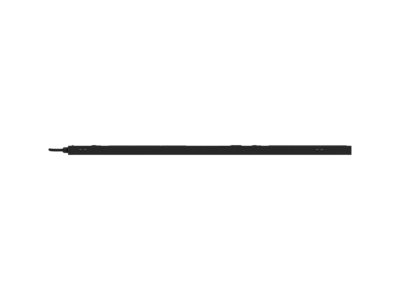

HPE G2 Metered Vertical Mid-Height - power distribution unit - 2800 VA
SKU P9R48A
Product Description: | HPE G2 Metered Vertical Mid-Height - power distribution unit - 2800 VA |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 25.4 cm |
Weight: | 6.4 kg |
Localisation: | Japan, North America |
Input Wiring: | 1-phase |
Input Voltage: | AC 120 V |
- Specifications
- Description
General | |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 25.4 cm |
Localisation: | Japan, North America |
Power Device | |
Input Voltage: | AC 120 V |
Input Voltage Range: | AC 100 - 120 V |
Input Wiring: | 1-phase |
Input Connectors: | 1 x power NEMA L5-30P |
Power Output Connectors Details: | 24 x power NEMA 5-20R |
Output Voltage: | AC 100-125 V |
Max Electric Current: | 24 A |
Power Capacity: | 2800 VA |
Circuit Protection: | Circuit breaker |
Miscellaneous | |
Included Accessories: | Tie wraps |
Cables Included: | Power cable 25.4 cm |
Rack Mounting Kit: | Included |
Compliant Standards: | CSA, UL, VCCI, CB, FCC, WEEE, ICES |
Manufacturer Warranty | |
Service & Support: | 3-year warranty |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 60 °C |
Humidity Range Operating: | 10 - 90% |
Dimensions & Weight | |
Width: | 5.2 cm |
Depth: | 5.3 cm |
Height: | 149 cm |
Weight: | 6.4 kg |
HPE Advanced series G2 metered PDUs are designed to work precisely with infrastructure and compute solutions, providing a highly accurate (billing grade accuracy) power distribution and metering solution for your racks. Designed for use with different racks, HPE G2 metered PDUs deliver a compatible fit and reliable operation. HPE G2 metered PDUs are also rated for operating temperatures up to 60°C, adding an increased level of operational reliability for power distribution in IT racks. A major concern for IT administrators and facility managers is their ability to quickly diagnose and service power related problems in their IT racks. Serviceability is further enhanced with features, such as color-coded outlets and low-profile form factors, allowing for simple and quick access to IT equipment and power cables in the rear of the rack.
HPE G2 metered PDU features are also directly focused on other pain points in the data center. 1Gb Ethernet alleviates the need to maintain older switch solutions, that have been traditionally required for PDU network connectivity. High-density outlet configurations allow for simple access to power in the rack, while minimizing physical cable requirements. Support for sensors provides a cost-effective and exhaustive solution for monitoring the environmental elements (temperature, humidity, and leakage) in both the front and rear of the rack.
HPE G2 metered PDU features are also directly focused on other pain points in the data center. 1Gb Ethernet alleviates the need to maintain older switch solutions, that have been traditionally required for PDU network connectivity. High-density outlet configurations allow for simple access to power in the rack, while minimizing physical cable requirements. Support for sensors provides a cost-effective and exhaustive solution for monitoring the environmental elements (temperature, humidity, and leakage) in both the front and rear of the rack.
