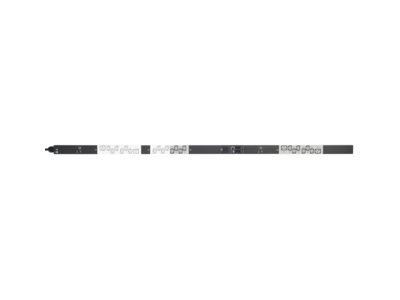

HPE G2 Metered Modular Horizontal True 0U - power distribution unit - 4900 VA
SKU P9R51A
Product Description: | HPE G2 Metered Modular Horizontal True 0U - power distribution unit - 4900 VA |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 30.5 cm |
Rack Size: | 1U |
Weight: | 7.03 kg |
Localisation: | Japan, North America |
Input Wiring: | 1-phase |
- Specifications
- Description
General | |
Device Type: | Power distribution unit - rack-mountable |
Height (Rack Units): | 1U |
Cord Length: | 30.5 cm |
Localisation: | Japan, North America |
Power Device | |
Input Voltage: | AC 208 V |
Input Voltage Range: | AC 200 - 208 V |
Input Wiring: | 1-phase |
Input Connectors: | 1 x power NEMA L6-30 |
Power Output Connectors Details: | 6 x power IEC 60320 C19 |
Output Voltage: | AC 200-240 V |
Max Electric Current: | 24 A |
Power Capacity: | 4900 VA |
Circuit Protection: | Circuit breaker |
Miscellaneous | |
Included Accessories: | Tie wraps |
Cables Included: | Power cable 30.5 cm |
Rack Mounting Kit: | Included |
Compliant Standards: | CSA, UL, VCCI, CB, FCC, WEEE, ICES |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 60 °C |
Humidity Range Operating: | 10 - 90% |
Dimensions & Weight | |
Width: | 44.4 cm |
Depth: | 27 cm |
Height: | 4.35 cm |
Weight: | 7.03 kg |
Compatibility Information | |
Designed For: | HPE Synergy 12000 Frame |
Do you need rack level power monitoring over the network? With billing grade accuracy, HPE G2 Metered Power Distribution Units (PDU) are an excellent choice for data centers wanting to make the most of circuit capacity or for co-location facilities needing to precisely track power usage for billing purposes. The G2 Metered PDUs offer load segment power metering and have a low profile single piece design with multiple mounting options and ease of access to rear devices for maintenance. Designed for HPE racks but also work in a large variety of third party racks as well using standard button and keyhole mounting. They can be installed on either side of the rack with outlets facing the back of the rack for easy access and improved clearance. Also for higher power density they can be installed side by side on both sides of the rack with the outlets facing in towards the center of the rack. HPE G2 Metered PDUs are backed by HPE's limited 3-year warranty.
- Rack-mountable form factor for easy integration
- Includes 6 power IEC 60320 C19 output connectors
- Supports a wide operating temperature range from 10°C to 60°C
- Comes with a rack mounting kit for convenient installation
